SRS Warning Light Does Not Come ON

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: SRS Warning Light does not Come ON

SRS Warning Light does not Come ON

DESCRIPTION

The SRS warning light is located on the combination meter assembly.
When the SRS is normal, the SRS warning light comes on for approximately 6 seconds after the power switch is turned from off to on (IG), and then goes off automatically.
If there is a malfunction in the SRS, the SRS warning light comes on to inform the driver of a problem.
When terminals TC and CG of the DLC3 are connected, the DTC is displayed by blinking of the SRS warning light.
The SRS is equipped with a voltage-increase circuit (DC-DC converter) in the center airbag sensor assembly in case the source voltage drops.
When the battery voltage drops, the voltage-increase circuit (DC-DC converter) functions to increase the voltage of the SRS to normal voltage.
A malfunction in this circuit is not recorded in the center airbag sensor assembly. The SRS warning light automatically goes off when the source voltage returns to normal.
The signal to illuminate the SRS warning light is transmitted from the center airbag sensor assembly to the combination meter assembly through the CAN communication system.

WIRING DIAGRAM






INSPECTION PROCEDURE

PROCEDURE

1. CHECK BATTERY
(a) Measure the voltage of the battery.
Standard voltage:
11 to 14 V
NG -- CHECK AND REPLACE BATTERY OR CHARGING SYSTEM
OK -- Continue to next step.
2. CHECK CONNECTOR
(a) Turn the power switch off.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the connector is properly connected to the combination meter assembly.
OK:
The connector is properly connected.
NG -- CONNECT CONNECTOR PROPERLY
OK -- Continue to next step.
3. CHECK WIRE HARNESS (COMBINATION METER ASSEMBLY - BODY GROUND)




(a) Turn the power switch off.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the F1 connector from the combination meter assembly.
(d) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the power switch on (IG).

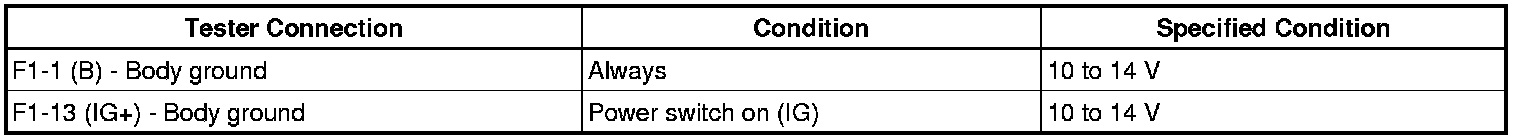

(f) Measure the voltage according to the value(s) in the table below.
Standard voltage:





(g) Turn the power switch off.

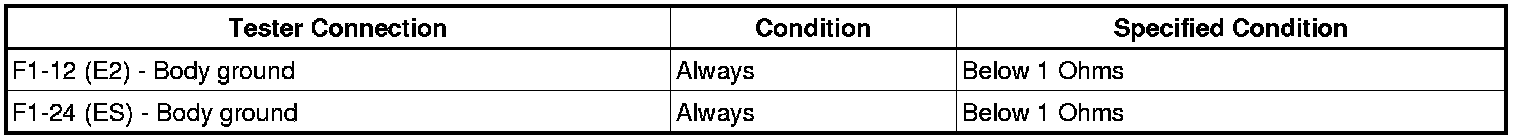

(h) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE WIRE HARNESS
OK -- Continue to next step.
4. CHECK SRS WARNING LIGHT
(a) Turn the power switch off.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Connect the connector to the combination meter assembly.
(d) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the power switch on (IG).
(f) Check the SRS warning light condition.
OK:
After the primary check period, SRS warning light goes off for approximately 10 seconds, and remains on.
HINT: The primary check period is approximately 6 seconds after the power switch is turned on (IG).

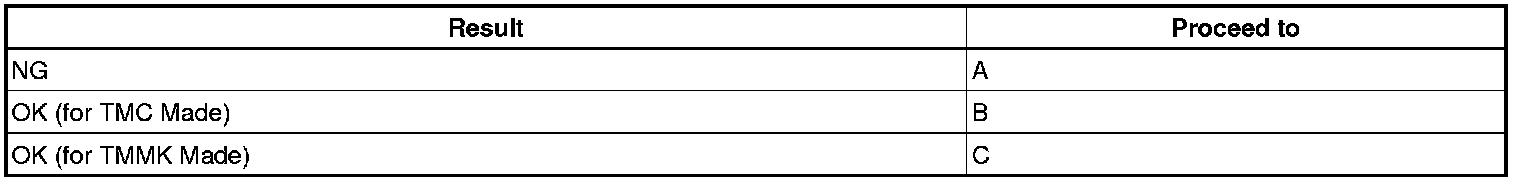

Result:






C -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
B -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
A -- REPLACE COMBINATION METER ASSEMBLY
