Components








SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION ECU: COMPONENTS

COMPONENTS

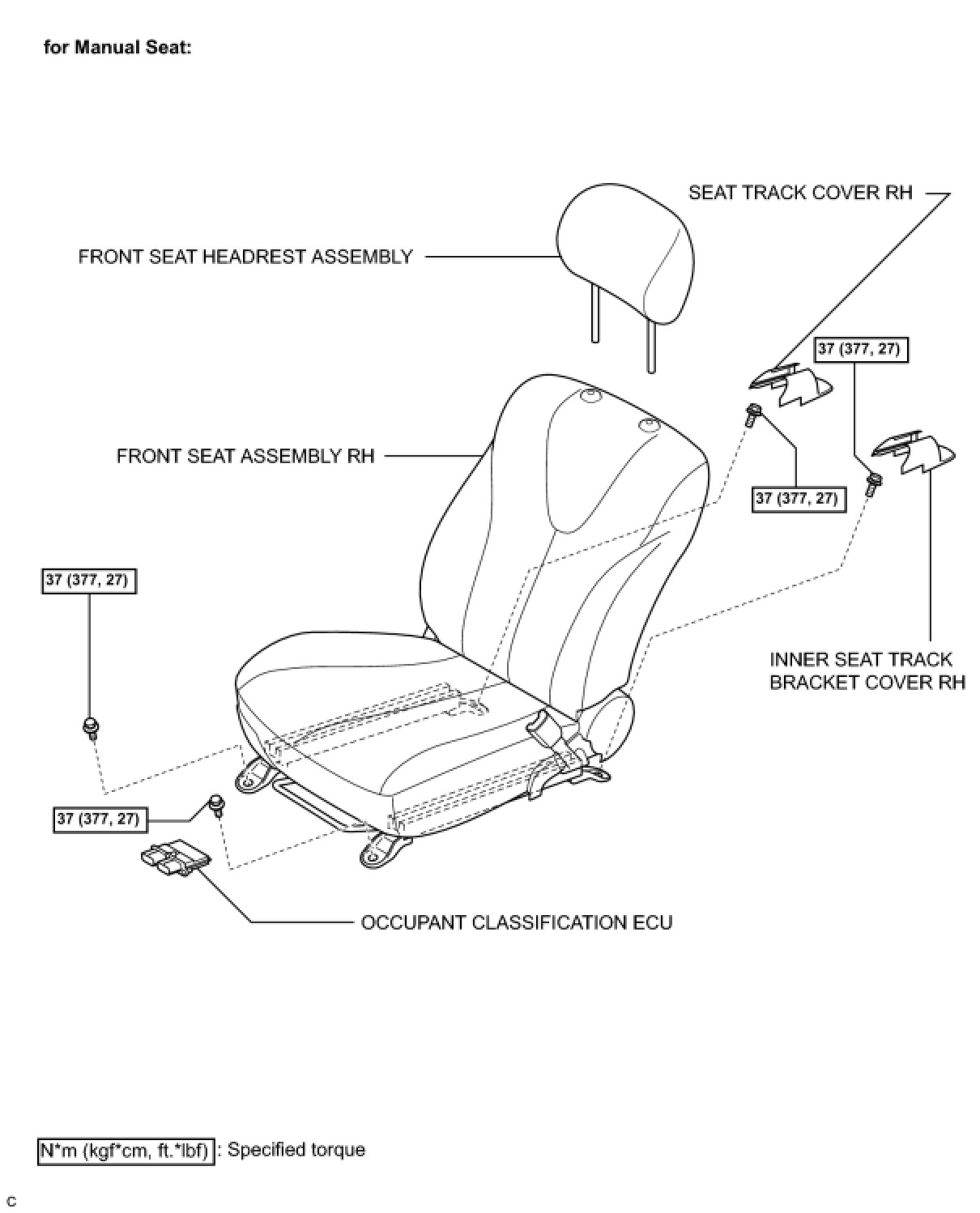

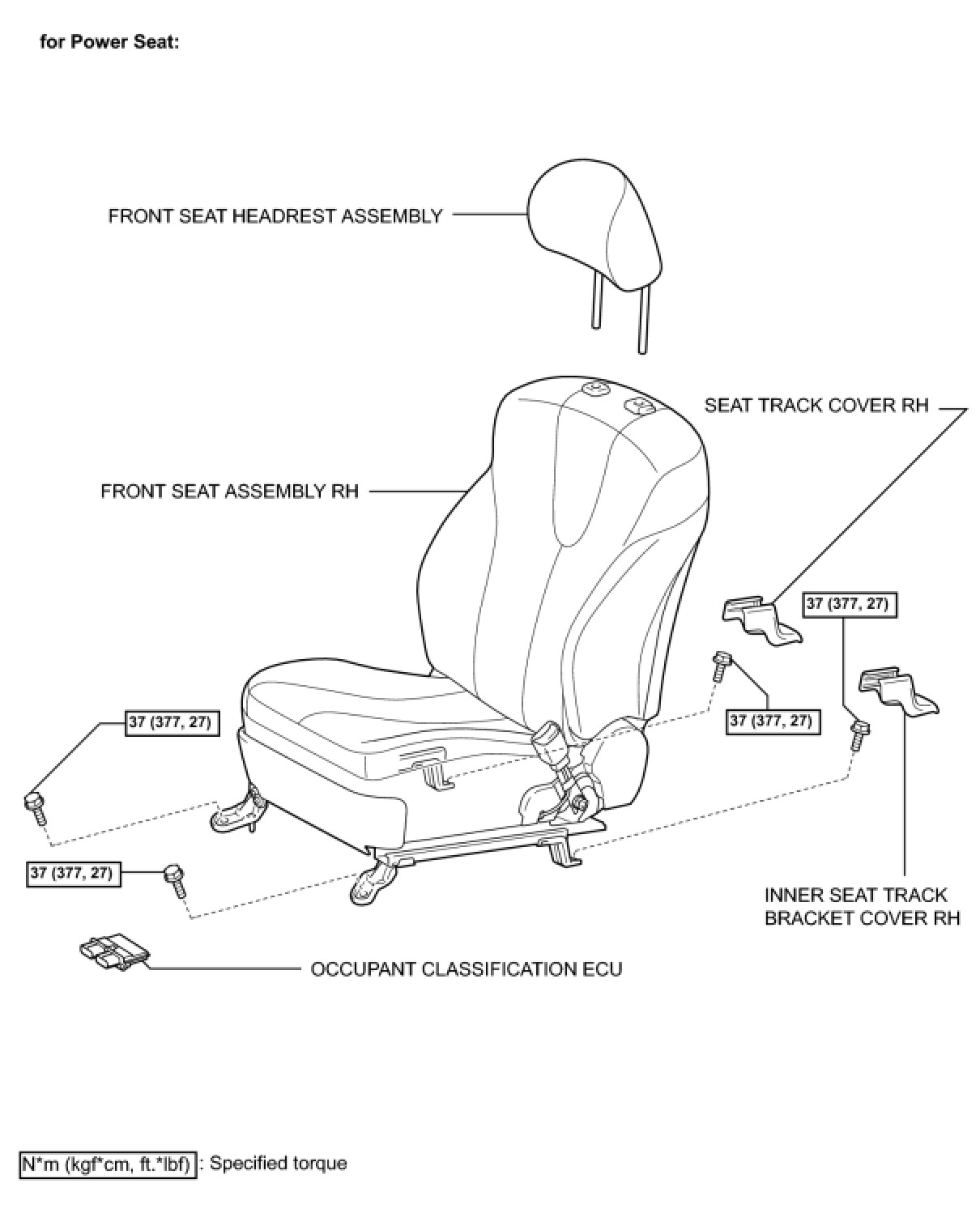

ILLUSTRATION
