SEAT BELT: CHILD RESTRAINT SEAT TETHER ANCHOR: INSTALLATION

INSTALLATION

1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET

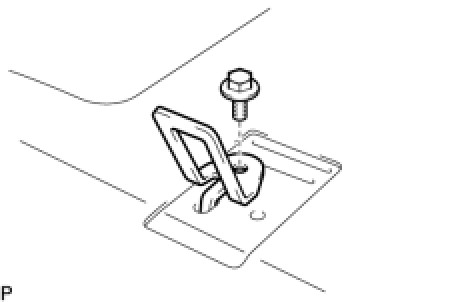

(a) Install the 3 child restraint seat tether anchor brackets with the 3 bolts.
Torque: 21 Nm (214 kgf-cm, 16ft-lbf)
2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY Installation
3. INSTALL REAR SEAT SHOULDER BELT HOLE COVER Installation
4. INSTALL REAR SEAT SHOULDER BELT COVER Installation
5. CONNECT REAR SEAT OUTER BELT ASSEMBLY (for LH Side) Installation
6. CONNECT REAR SEAT OUTER BELT ASSEMBLY (for RH Side) Installation
7. INSTALL ROOF SIDE INNER GARNISH LH Installation
8. INSTALL ROOF SIDE INNER GARNISH RH Installation
9. CONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH Installation
10. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH Installation
11. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation
12. INSTALL REAR DOOR SCUFF PLATE LH Installation
13. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation
14. INSTALL REAR DOOR SCUFF PLATE RH Installation
15. INSTALL REAR SIDE SEATBACK ASSEMBLY LH Installation
16. INSTALL REAR SIDE SEATBACK ASSEMBLY RH
HINT: Use the same procedure for the RH side and the LH side.

17. INSTALL SEPARATE TYPE REAR SEATBACK ASSEMBLY LH Installation
18. INSTALL SEPARATE TYPE REAR SEATBACK ASSEMBLY RH Installation
19. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
20. INSTALL REAR SEAT HEADREST ASSEMBLY
21. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
