SEAT BELT: FRONT SEAT OUTER BELT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL FRONT SEAT OUTER BELT ASSEMBLY

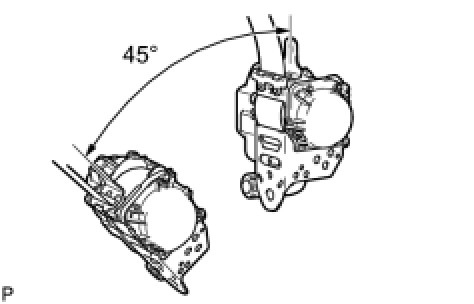

(a) Check the degree of tilt when the ELR begins to lock.
(1) Check that the belt does not lock at less than 15 degrees of tilt in any direction but locks at over 45 degrees of tilt while gently pulling the belt.
NOTICE: Do not disassemble the retractor.

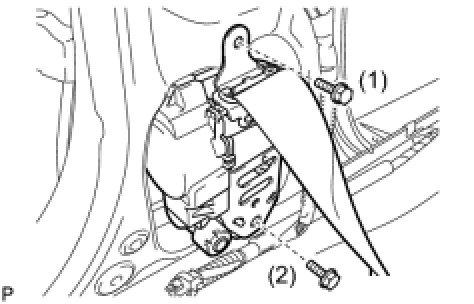

(b) Temporarily install the front seat outer belt assembly with the 2 bolts.
(c) Fully tighten the upper side bolt first, then the lower side bolt to install the front seat outer belt assembly.
for Upper bolt - Torque: 7.5 Nm (77 kgf-cm, 66in-lbf)
for Upper bolt - Torque: 42 Nm (428 kgf-cm, 31ft-lbf)

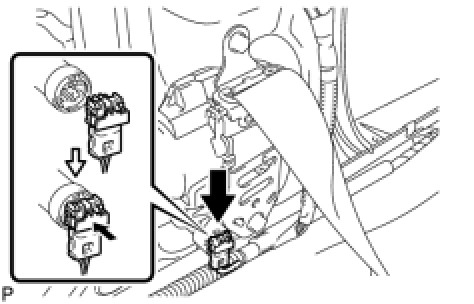

(d) Connect the connector and lock the locking button as shown in the illustration.
NOTICE: Securely lock the locking button.

2. INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

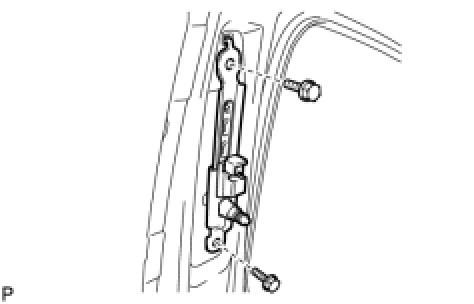

(a) Install the front shoulder belt anchor adjuster assembly with the 2 bolts.
Torque: 42 Nm (428 kgf-cm, 31ft-lbf)
3. CONNECT FRONT SEAT OUTER BELT ASSEMBLY

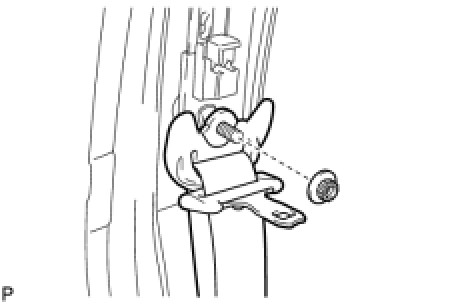

(a) Connect the shoulder anchor of the front seat outer belt assembly with the nut.
Torque: 42 Nm (428 kgf-cm, 31ft-lbf)
4. INSTALL UPPER CENTER PILLAR GARNISH Installation
5. INSTALL LOWER CENTER PILLAR GARNISH Installation
6. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP Installation
7. INSTALL REAR DOOR SCUFF PLATE Installation
8. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP Installation
9. INSTALL FRONT DOOR SCUFF PLATE Installation
10. CONNECT FRONT SEAT OUTER BELT ASSEMBLY





(a) Install the floor end of the front seat outer belt assembly with the bolt.
Torque: 42 Nm (428 kgf-cm, 31ft-lbf)
(b) Check if the ELR locks.
NOTICE: The check should be performed with the outer belt assembly installed.
(1) With the belt assembly installed, check that the belt locks when it is pulled out quickly.
11. INSTALL LAP BELT OUTER ANCHOR COVER





(a) Engage the 3 claws and install the lap belt outer anchor cover.
12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
13. PERFORM INITIALIZATION
NOTICE: Some systems need initialization after reconnecting the cable to the negative battery terminal Repair Instruction - Initialization.

14. INSPECT SRS WARNING LIGHT Diagnosis System
