Removal








SEAT BELT: REAR SEAT INNER BELT ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
2. REMOVE REAR SEAT HEADREST ASSEMBLY
3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
4. REMOVE SEPARATE TYPE REAR SEATBACK ASSEMBLY LH Removal
5. REMOVE SEPARATE TYPE REAR SEATBACK ASSEMBLY RH Removal
6. REMOVE REAR SIDE SEATBACK ASSEMBLY LH Removal
7. REMOVE REAR SIDE SEATBACK ASSEMBLY RH Removal
8. REMOVE REAR DOOR SCUFF PLATE LH Removal
9. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
10. REMOVE REAR DOOR SCUFF PLATE RH Removal
11. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
12. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH Removal
13. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH
HINT: Use the same procedure for the RH side and the LH side.

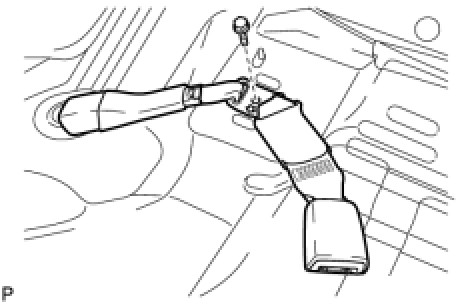

14. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH





(a) Remove the bolt and the rear seat inner with center belt assembly RH.

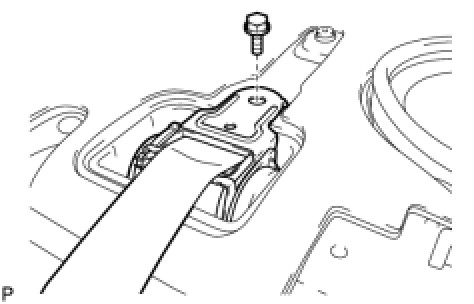

15. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH





(a) Remove the bolt and disconnect the floor end of the rear seat inner with center belt assembly LH.
16. REMOVE ROOF SIDE INNER GARNISH LH Removal
17. REMOVE ROOF SIDE INNER GARNISH RH Removal
18. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY (for LH Side) Removal
19. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY (for RH Side) Removal

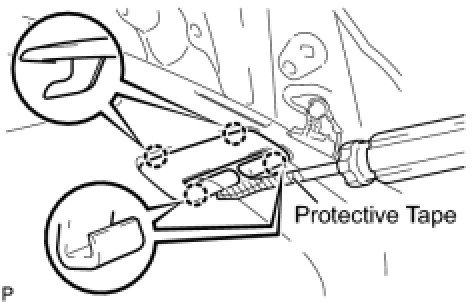

20. REMOVE REAR SEAT SHOULDER BELT COVER





(a) Using a screwdriver, disengage the 4 claws and remove the rear seat shoulder belt cover.
HINT :
- Tape the screwdriver tip before use.
- Use the same procedure for the RH side and LH side.

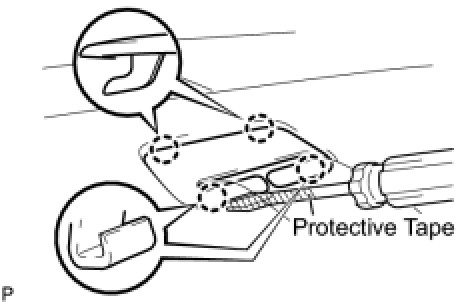

21. REMOVE REAR SEAT SHOULDER BELT HOLE COVER





(a) Using a screwdriver, disengage the 4 claws and remove the rear seat shoulder belt hole cover.
HINT: Tape the screwdriver tip before use.

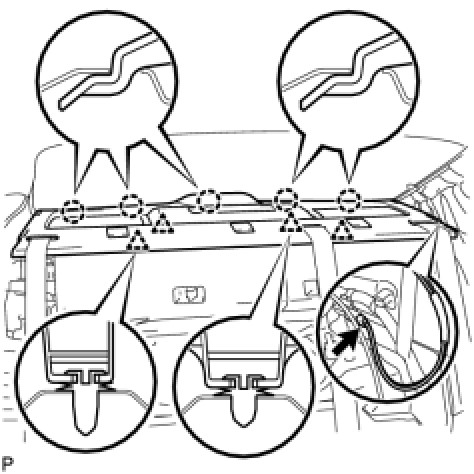

22. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY





(a) Disconnect the connector.
(b) Disengage the 4 clips and the 5 claws.
(c) Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly, then remove the package tray trim panel assembly.

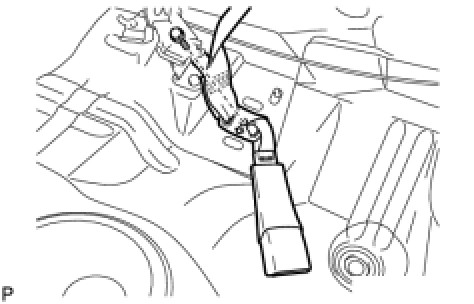

23. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH





(a) Remove the bolt and the rear seat inner with center belt assembly LH.
