Pinout Values and Diagnostic Parameters








SEAT BELT: SEAT BELT WARNING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. CLOCK ASSEMBLY





Standard voltage:

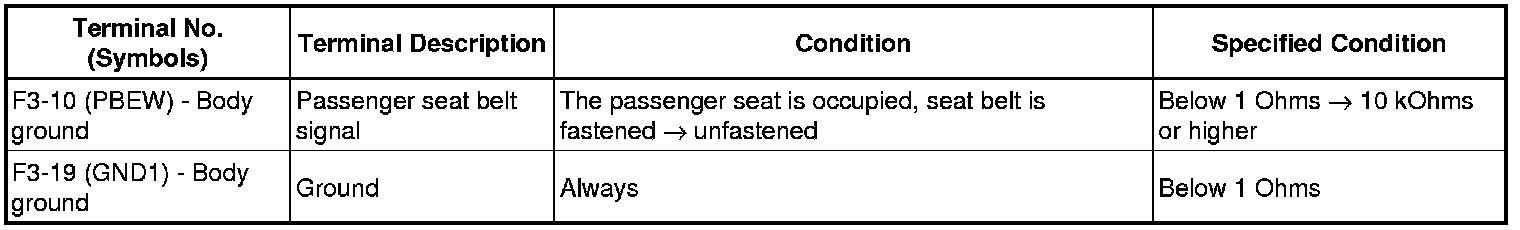

Standard resistance:
