Removal

AUDIO / VISUAL: STEERING PAD SWITCH: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment Service Precautions.

2. REMOVE NO. 3 LOWER STEERING WHEEL COVER Removal
3. REMOVE NO. 2 LOWER STEERING WHEEL COVER Removal
4. REMOVE STEERING PAD Removal
5. REMOVE STEERING PAD SWITCH ASSEMBLY

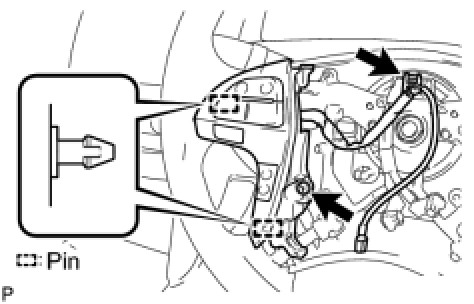

(a) Disconnect the pad switch connector from the spiral cable.
(b) Remove the screw.
(c) Disengage the 2 pins and remove the steering pad switch.

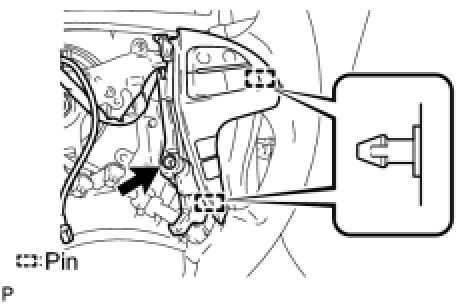

(d) Remove the screw.
(e) Disengage the 2 pins and remove the steering pad switch assembly.
