Front Speed Sensor

BRAKE CONTROL: FRONT SPEED SENSOR: INSPECTION

INSPECTION

1. INSPECT FRONT SPEED SENSOR
(a) Inspect the front speed sensor. If any of the following occurs, replace the front speed sensor with a new one:
- The surface of the front speed sensor is cracked, dented, or chipped off.
- The connector or wire harness is scratched, cracked, or damaged.
- The front speed sensor has been dropped.





(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:

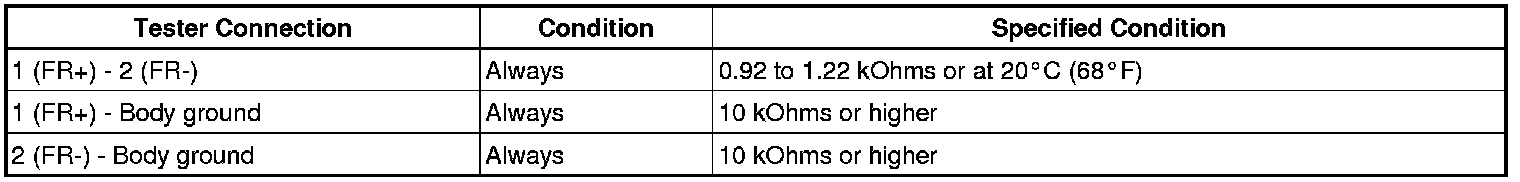

RH (for TMC Made)

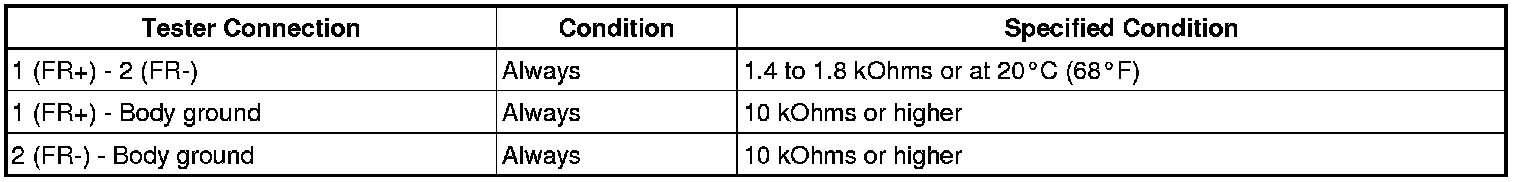

RH (for TMMK Made)

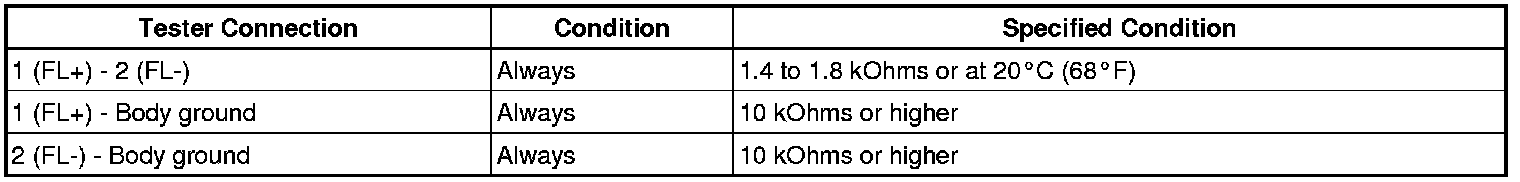

LH (for TMC Made)





LH (for TMMK Made)





If the value is not as specified, replace the front speed sensor.
