Components

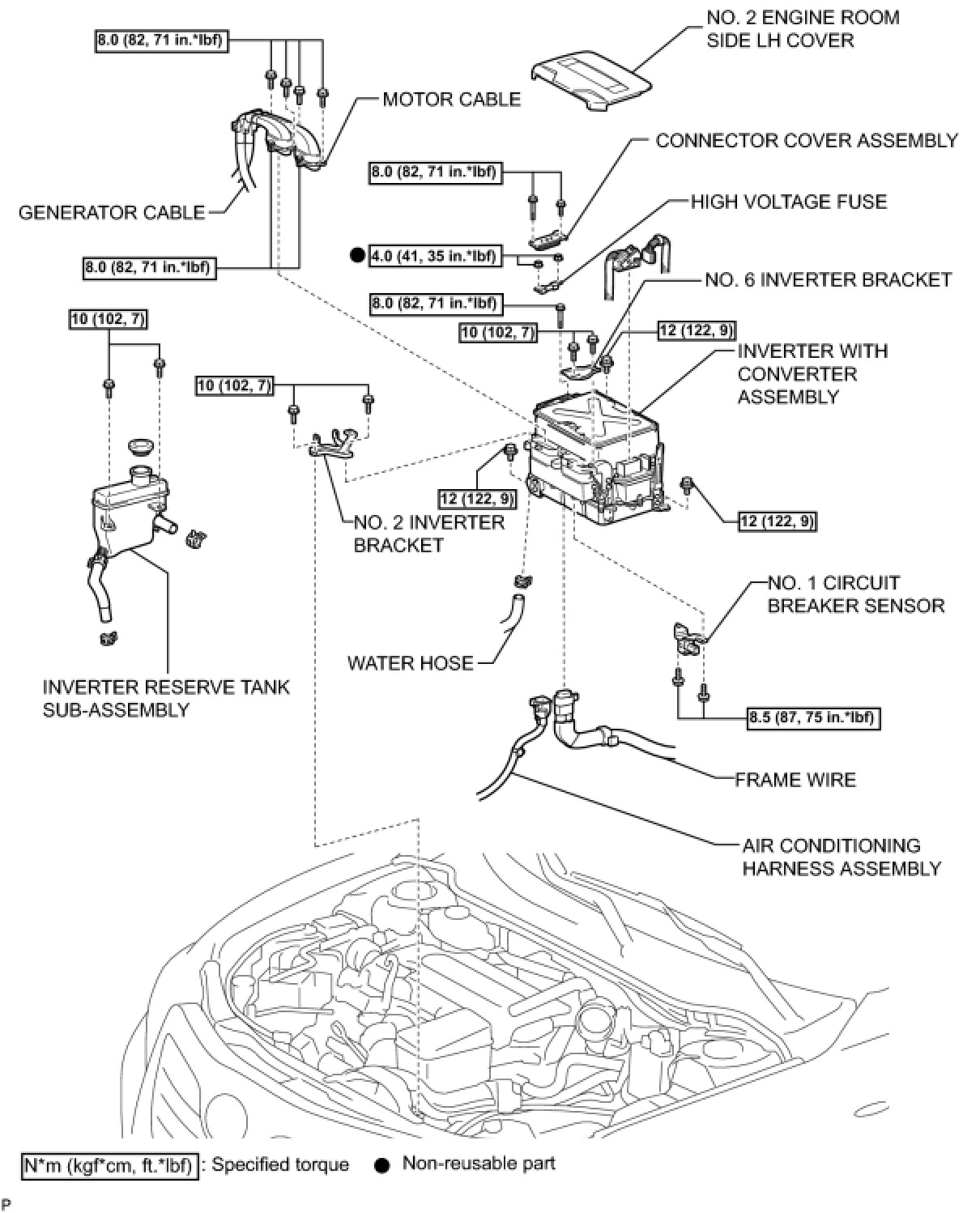

P311 HYBRID VEHICLE CONTROL: FRONT CIRCUIT BREAKER SENSOR: COMPONENTS

COMPONENTS

ILLUSTRATION
