Removal

2AZ-FXE STARTING: POWER SWITCH: REMOVAL

REMOVAL

1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (for TMC Made) Removal
2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (for TMMK Made) Removal
3. REMOVE POWER SWITCH

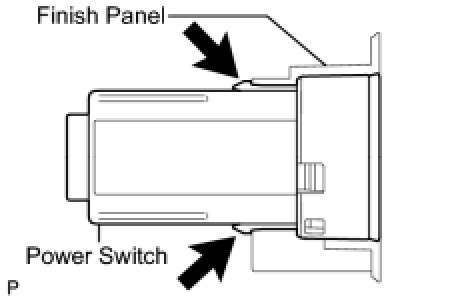

(a) Detach the 2 claws and remove the power switch from the finish panel.
