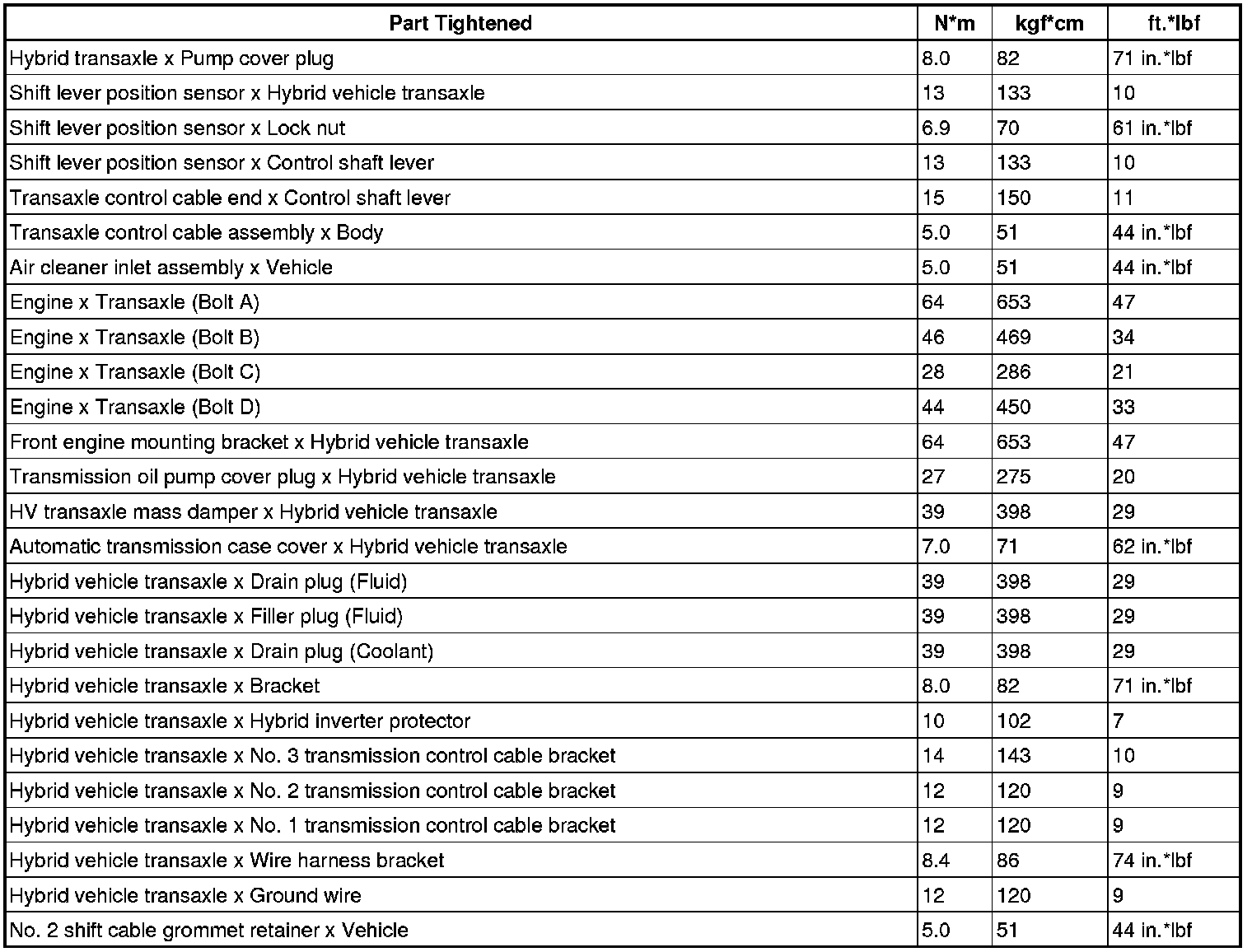

SERVICE SPECIFICATIONS: P311 HYBRID TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
