Service Data








SERVICE SPECIFICATIONS: 2AZ-FXE COOLING: SERVICE DATA

SERVICE DATA

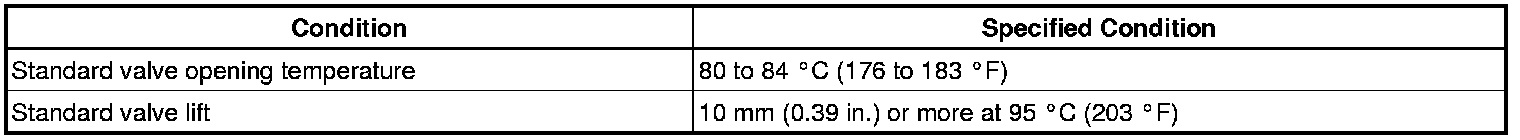

THERMOSTAT:

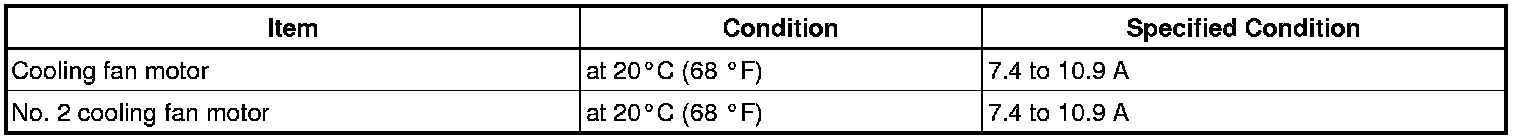

COOLING FAN MOTOR:

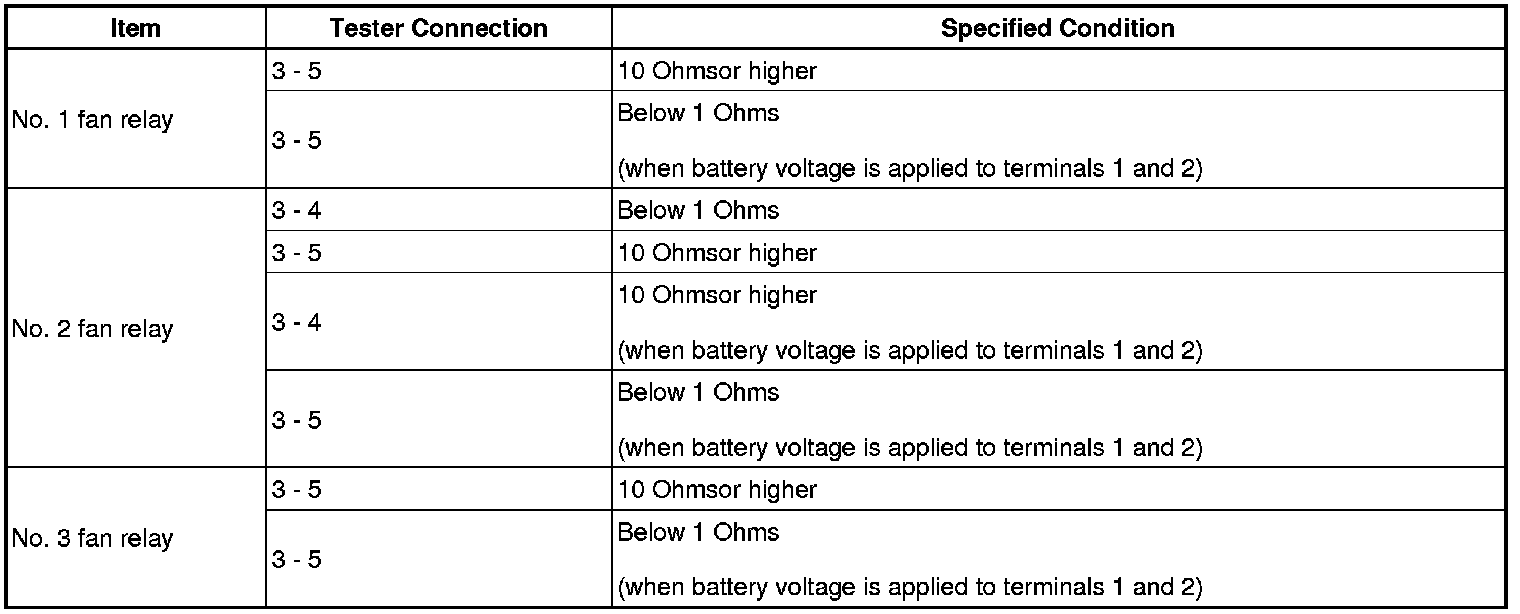

COOLING FAN RELAY:

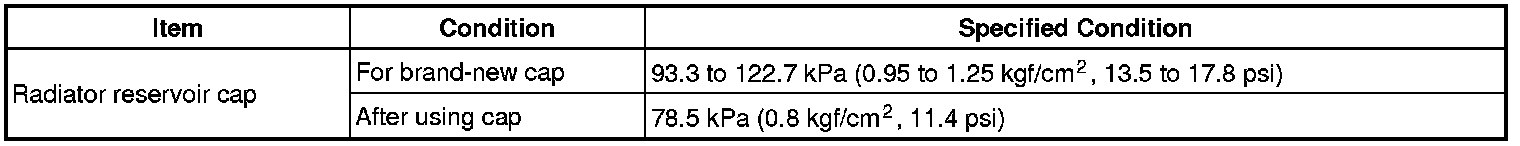

RADIATOR:
