Torque Specifications








SERVICE SPECIFICATIONS: 2AZ-FXE COOLING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

COOLANT:

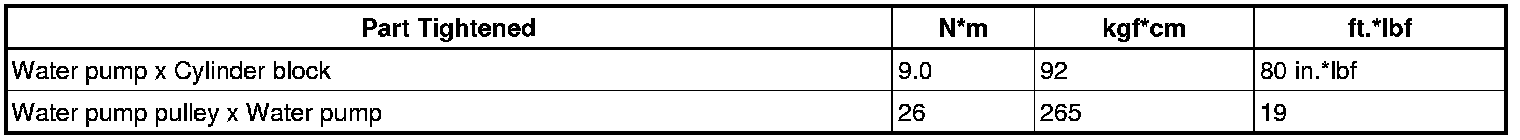

WATER PUMP:






THERMOSTAT:

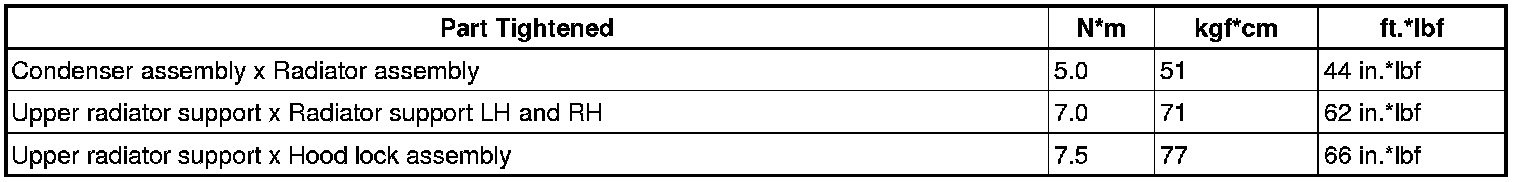

RADIATOR:
