Intake Manifold
INTAKE MANIFOLD
Install the intake manifold with the 5 bolts and 2 nuts.
Torque 30 Nm (305 kgf-cm, 22ft-lbf)
THROTTLE BODY

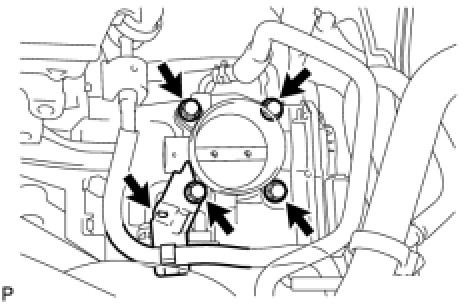

Install the throttle body and fuel pipe clamp with the 4 bolts.
Torque 30 Nm (305 kgf-cm, 22ft-lbf)
Install the intake manifold with the 5 bolts and 2 nuts.
Torque 30 Nm (305 kgf-cm, 22ft-lbf)
THROTTLE BODY

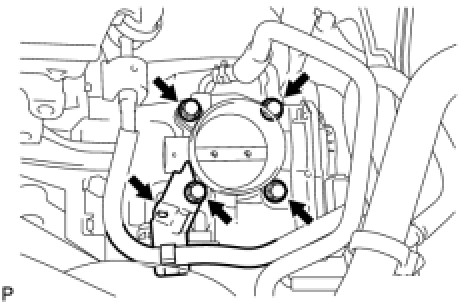

Install the throttle body and fuel pipe clamp with the 4 bolts.
Torque 30 Nm (305 kgf-cm, 22ft-lbf)
