System Specifications








SERVICE SPECIFICATIONS: 2AZ-FXE LUBRICATION: SERVICE DATA

SERVICE DATA

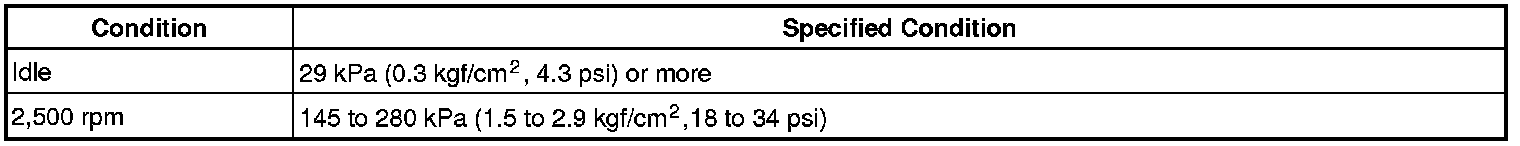

OIL PRESSURE

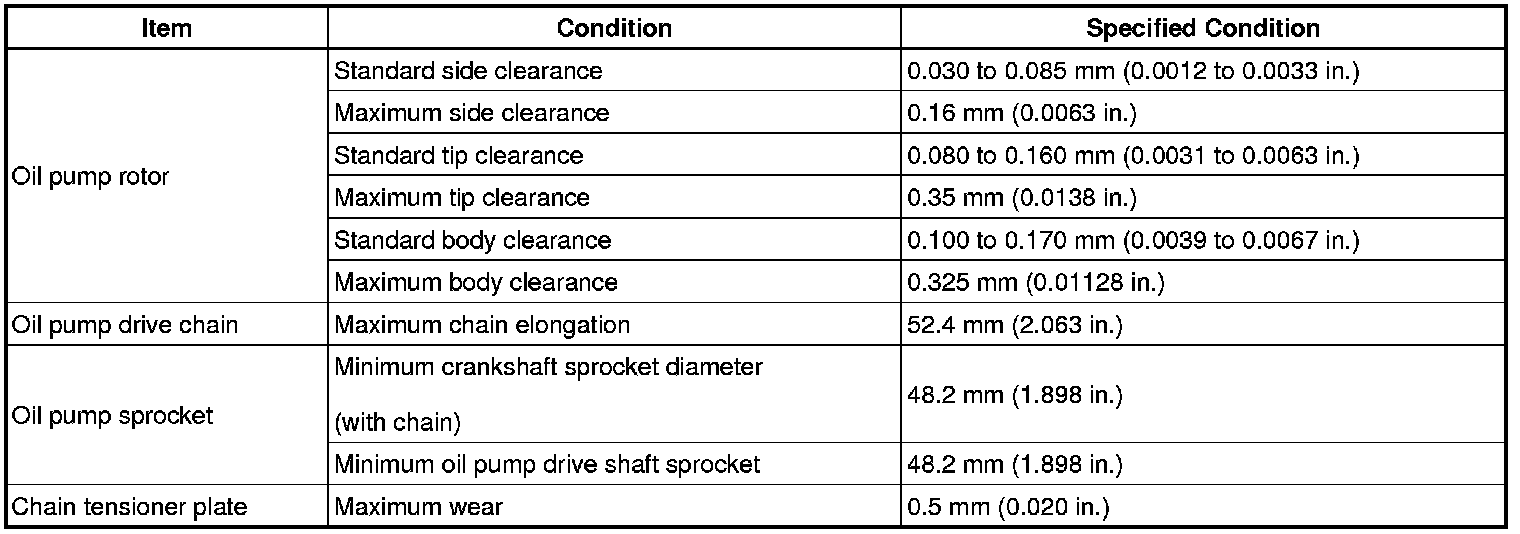

OIL PUMP
