Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Camry L4-2.4L (2AZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Battery
>>
Service and Repair
>>
Components
Components

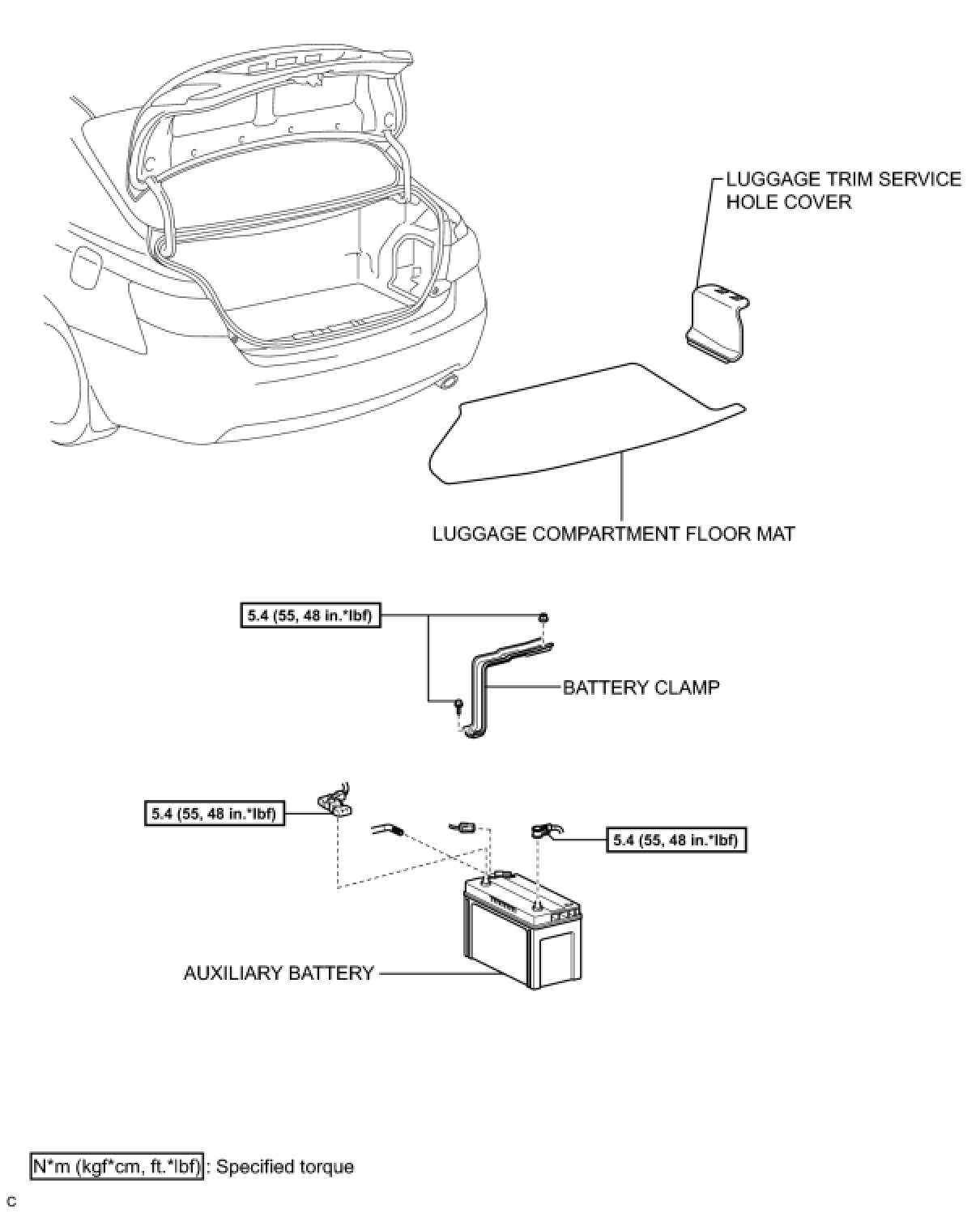

2AZ-FXE CHARGING: BATTERY: COMPONENTS
COMPONENTS
ILLUSTRATION
