2AZ-FXE CHARGING: BATTERY: INSTALLATION

INSTALLATION

1. INSTALL AUXILIARY BATTERY





(a) Install the auxiliary battery.
(b) Install the battery clamp with the nut and bolt.
Torque: 5.4 Nm (55 kgf-cm, 48in-lbf)
(c) Connect the thermistor sensor connector.
(d) Connect the battery room ventilation hose.

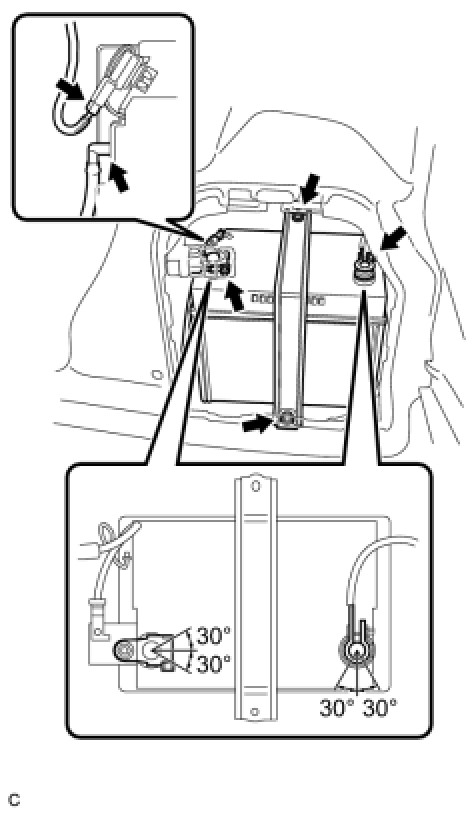

(e) Connect the cables to the positive (+) and negative (-) terminals of the auxiliary battery as shown in the illustration.
Torque: 5.4 Nm (55 kgf-cm, 48in-lbf)
HINT: When the auxiliary battery has been disconnected and reconnected, attempting to turn the power switch on (READY) may not start the system (the system may not enter the READY-on state) on the first attempt. If so, turn the power switch off and reattempt to turn the power switch on (READY).

2. INSTALL LUGGAGE TRIM SERVICE HOLE COVER Installation
3. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
4. PERFORM INITIALIZATION
(a) Perform initialization procedure Repair Instruction - Initialization.
HINT: Some vehicle systems require initialization after reconnecting the cable to the negative battery terminal.
