Starting System: Locations

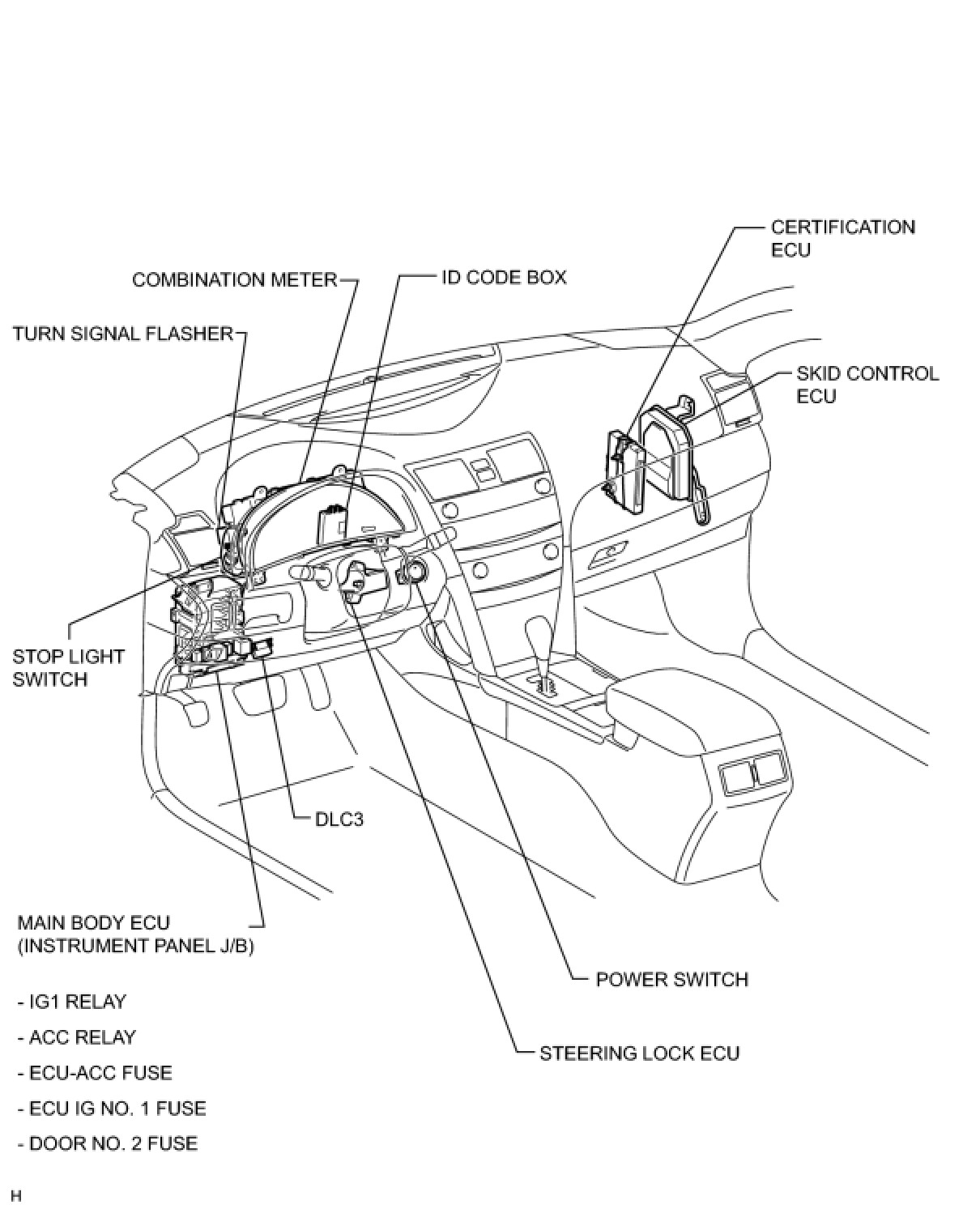

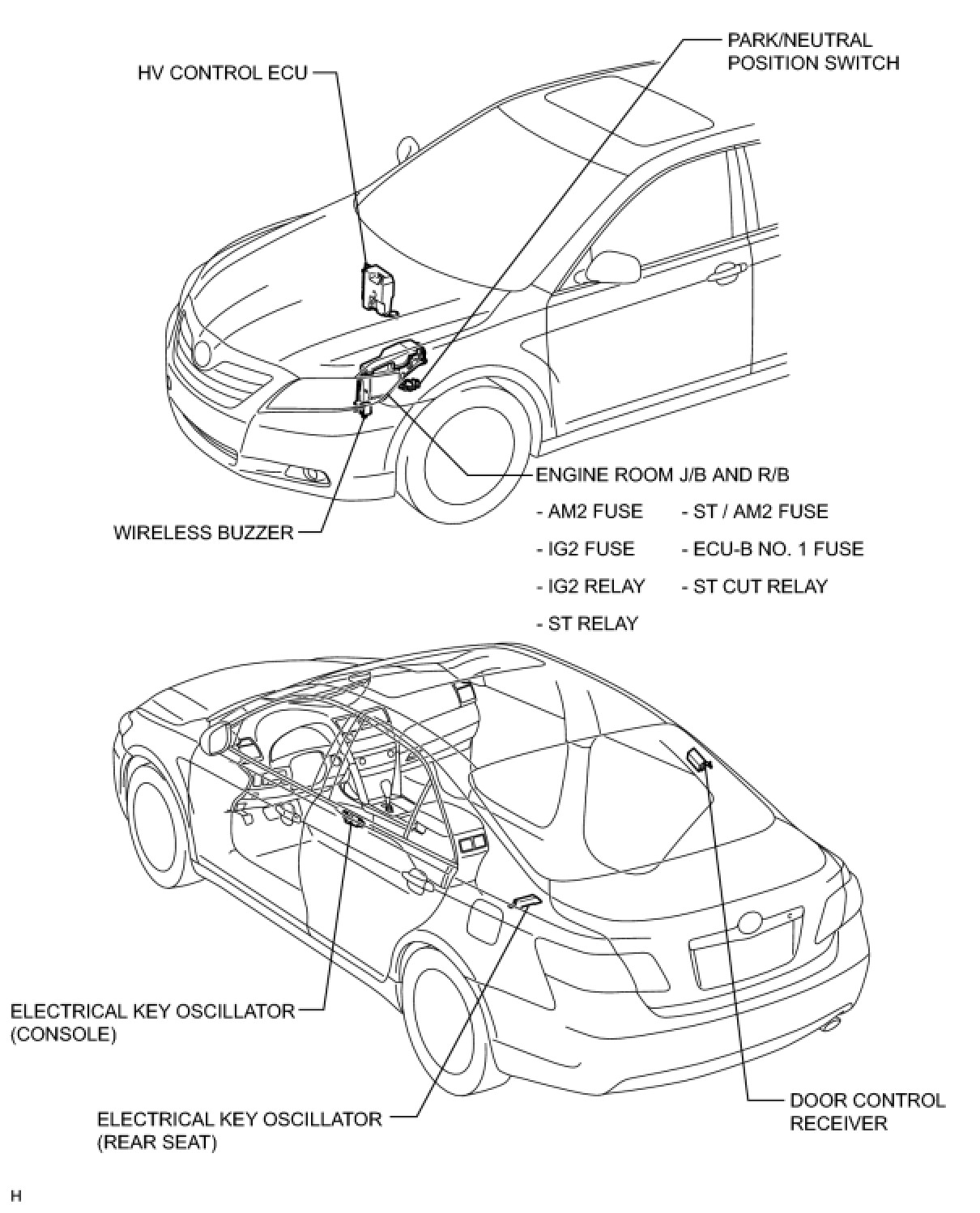

2AZ-FXE STARTING: SMART KEY SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
