Steering Column: Description and Operation

STEERING COLUMN: ELECTRIC STEERING LOCK: SYSTEM DIAGRAM

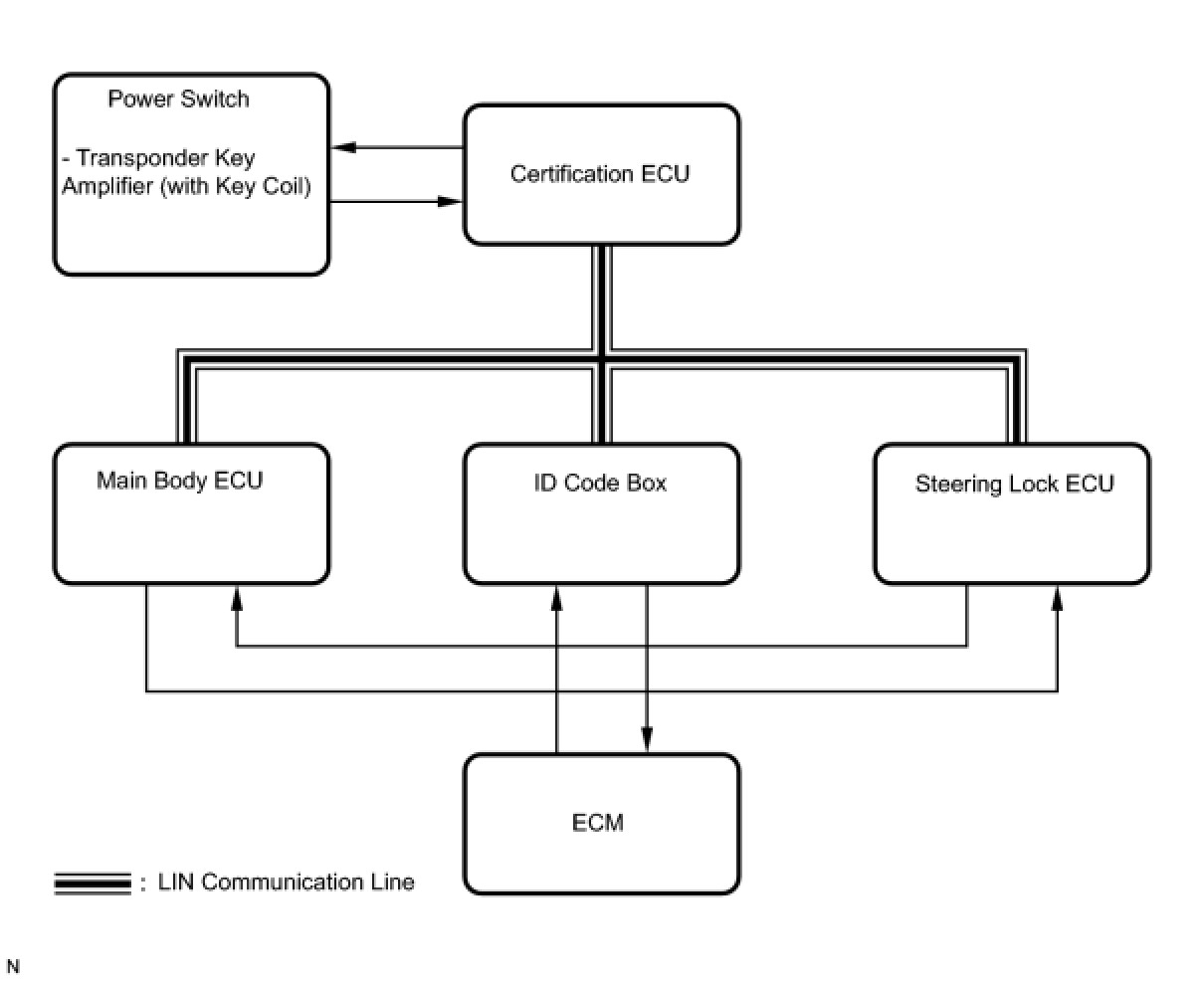

SYSTEM DIAGRAM

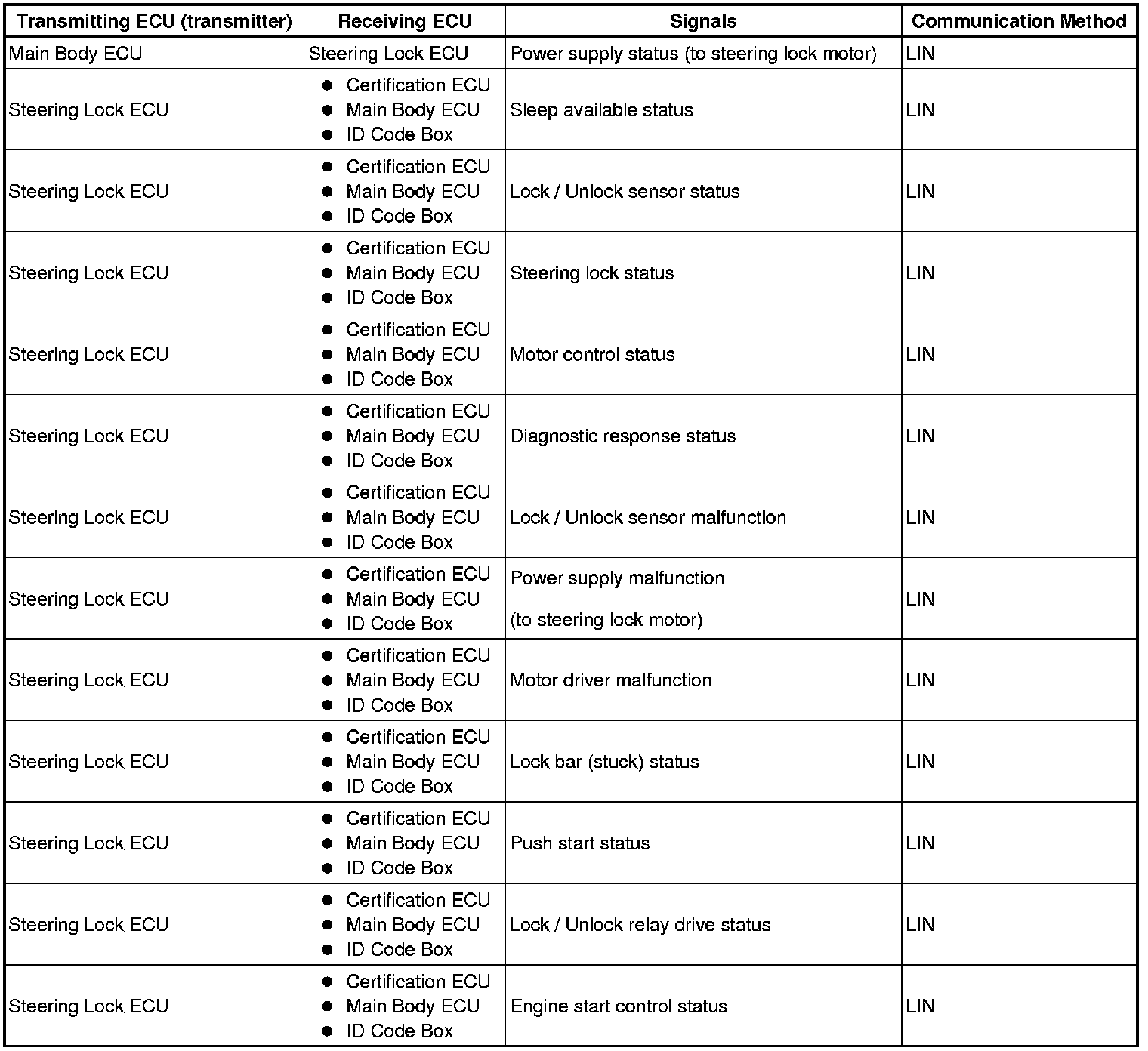

Input and output signals of each ECU:






STEERING COLUMN: ELECTRIC STEERING LOCK: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. DESCRIPTION
(a) The steering lock system locks or unlocks the steering lock by activating the steering lock bar with a motor. The steering lock ECU activates the motor based on signals from the certification ECU and main body ECU.
(b) A LIN (Local Interconnect Network) is used for communication between different ECUs in this system.
2. FUNCTIONS OF COMPONENTS

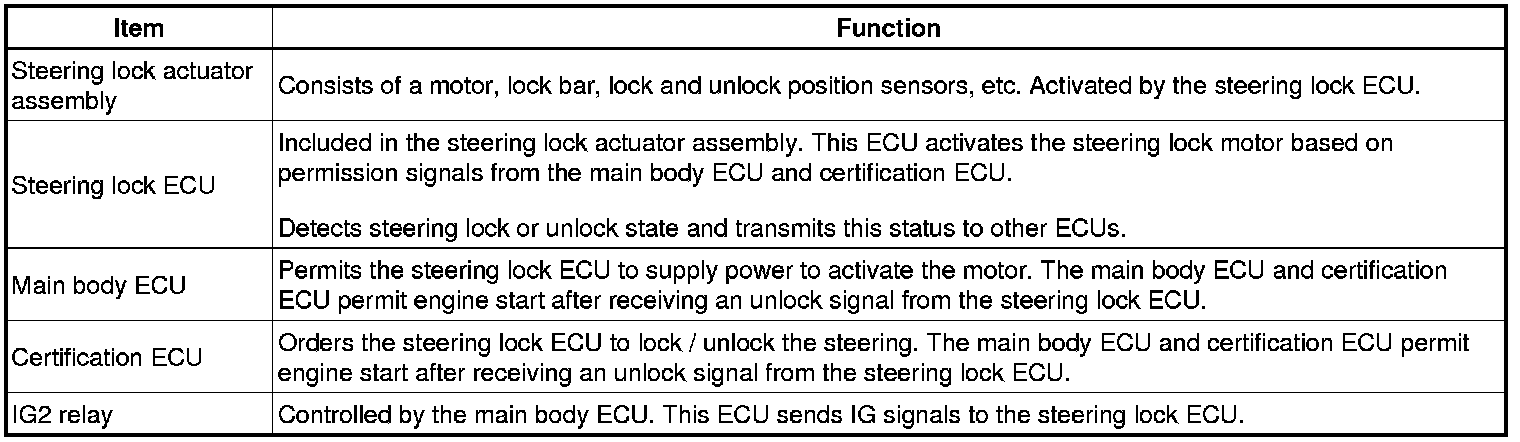

(a) The steering lock ECU controls the system based on information from the following components.
