Disassembly

STEERING COLUMN: STEERING COLUMN ASSEMBLY: DISASSEMBLY

DISASSEMBLY
NOTICE: When using a vise, do not overtighten it.

1. REMOVE STEERING LOCK ACTUATOR ASSEMBLY
(a) Secure the steering column assembly in a vise.
(b) Using a center punch, mark the center of the 2 tapered-head bolts.
(c) Using a 3 to 4 mm (0.12 to 0.16 in.) drill, drill a hole in the 2 tapered-head bolts.

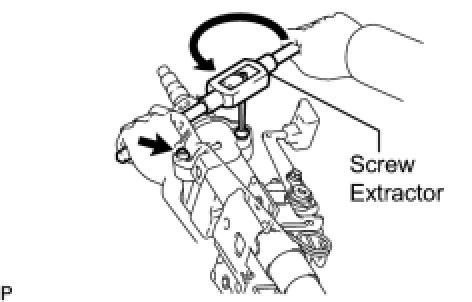

(d) Using a screw extractor, remove the 2 tapered-head bolts, and then remove the steering lock actuator assembly and the steering lock bracket from the steering column assembly.
