Installation

STEERING COLUMN: STEERING COLUMN ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY





(a) Align the matchmarks on the steering intermediate shaft assembly and the steering column assembly.
(b) Install the bolt.
Torque: 35 Nm (360 kgf-cm, 26ft-lbf)
2. INSTALL STEERING COLUMN ASSEMBLY





(a) Install the steering column assembly with the bolt and 2 nuts.
Torque: 21 Nm (214 kgf-cm, 15ft-lbf)
(b) Connect the connectors and wire harness clamps to the steering column assembly.
3. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY

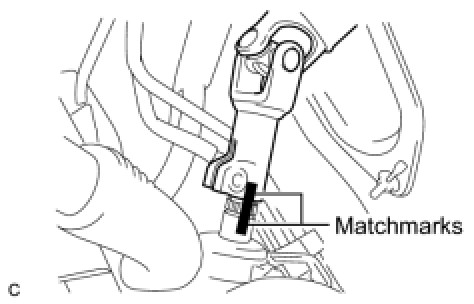

(a) Align the matchmarks on the steering intermediate shaft assembly and the power steering link assembly.





(b) Install the bolt.
Torque: 35 Nm (360 kgf-cm, 26ft-lbf)





(c) Install the clamp to the steering column hole shield.
4. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY





(a) Engage the 2 claws to install the No. 1 air duct sub-assembly.
5. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
6. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY





(a) Install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly with the clamp.
(b) Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
7. INSTALL STEERING COLUMN COVER





(a) Engage the claw to install the upper steering column cover.





(b) Engage the 2 claws to install the lower steering column cover.
(c) Install the 2 screws.
Torque: 2.0 Nm (20 kgf-cm, 1.5in-lbf)
8. ADJUST SPIRAL CABLE SUB-ASSEMBLY Installation
9. INSTALL STEERING WHEEL ASSEMBLY





(a) Align the matchmarks on the steering wheel assembly and steering main shaft.
(b) Install the steering wheel assembly set nut.
Torque: 50 Nm (510 kgf-cm, 37ft-lbf)
(c) Connect the connectors to the spiral cable sub-assembly.
10. INSPECT STEERING WHEEL CENTER POINT
11. INSTALL STEERING PAD Installation
12. INSTALL NO. 3 LOWER STEERING WHEEL COVER Installation
13. INSTALL NO. 2 LOWER STEERING WHEEL COVER Installation
14. INSPECT STEERING PAD Installation
15. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (for TMC Made) Installation
16. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (for TMMK Made) Installation
17. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made) Installation
18. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made) Installation
19. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation
20. INSTALL FRONT DOOR SCUFF PLATE LH Installation

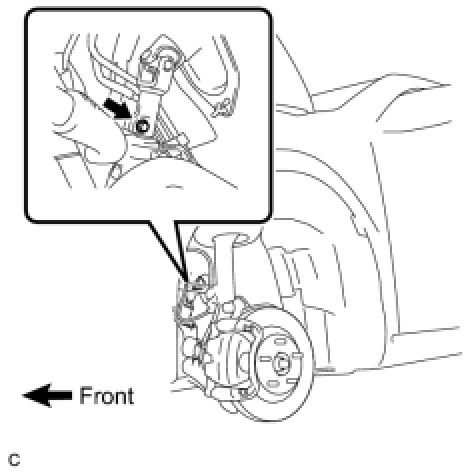

21. INSTALL FRONT WHEEL LH
Torque: 103 Nm (1,050 kgf-cm, 76ft-lbf)
22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

23. INSPECT SRS WARNING LIGHT
HINT: Diagnosis System
