Disassembly

SUSPENSION: REAR NO. 2 SUSPENSION ARM: DISASSEMBLY

DISASSEMBLY

1. REMOVE LOWER BALL BUSH ASSEMBLY (for TMMK Made)

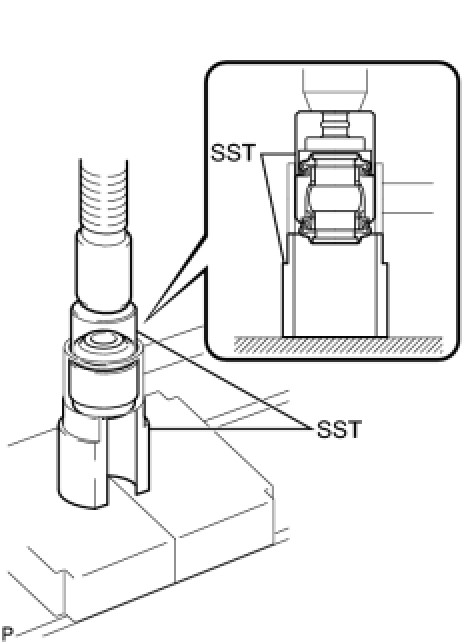

(a) Using SST and a press, remove the lower ball bush assembly from the rear No. 2 suspension arm.
SST: 09710-28012
09710-07041
SST: 09710-22042
09710-02041
