Reassembly

SUSPENSION: REAR NO. 2 SUSPENSION ARM: REASSEMBLY

REASSEMBLY

1. INSTALL LOWER BALL BUSH ASSEMBLY (for TMMK Made)

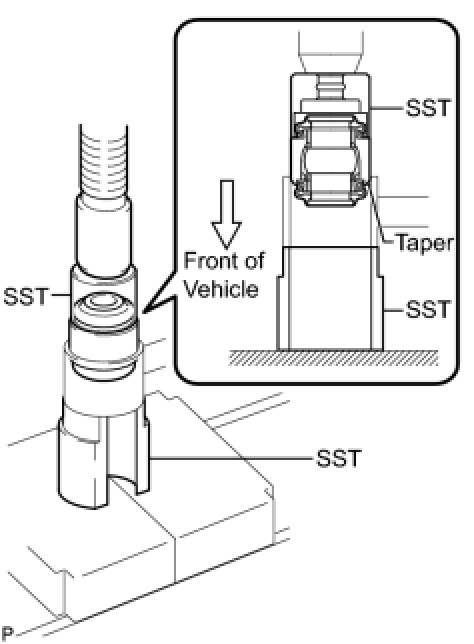

(a) Using SST and a press, install a new lower ball bush assembly to the rear No. 2 suspension arm.
SST: 09710-28012
09710-07041
SST: 09710-22042
09710-02041
- Do not damage the dust cover of the lower ball bush assembly.
- Make sure that the taper of the lower ball bush assembly faces to the front of vehicle as shown in the illustration.
