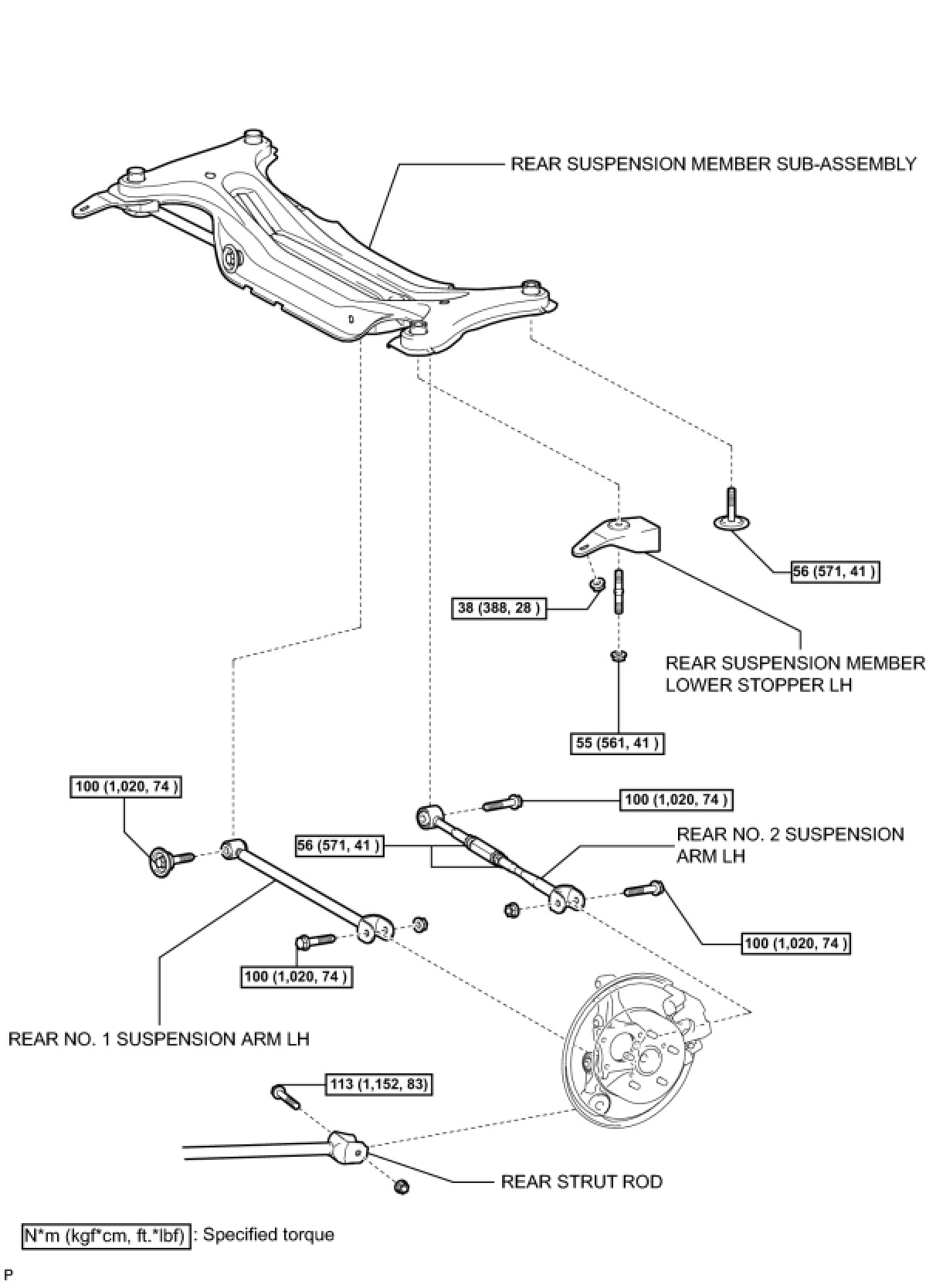

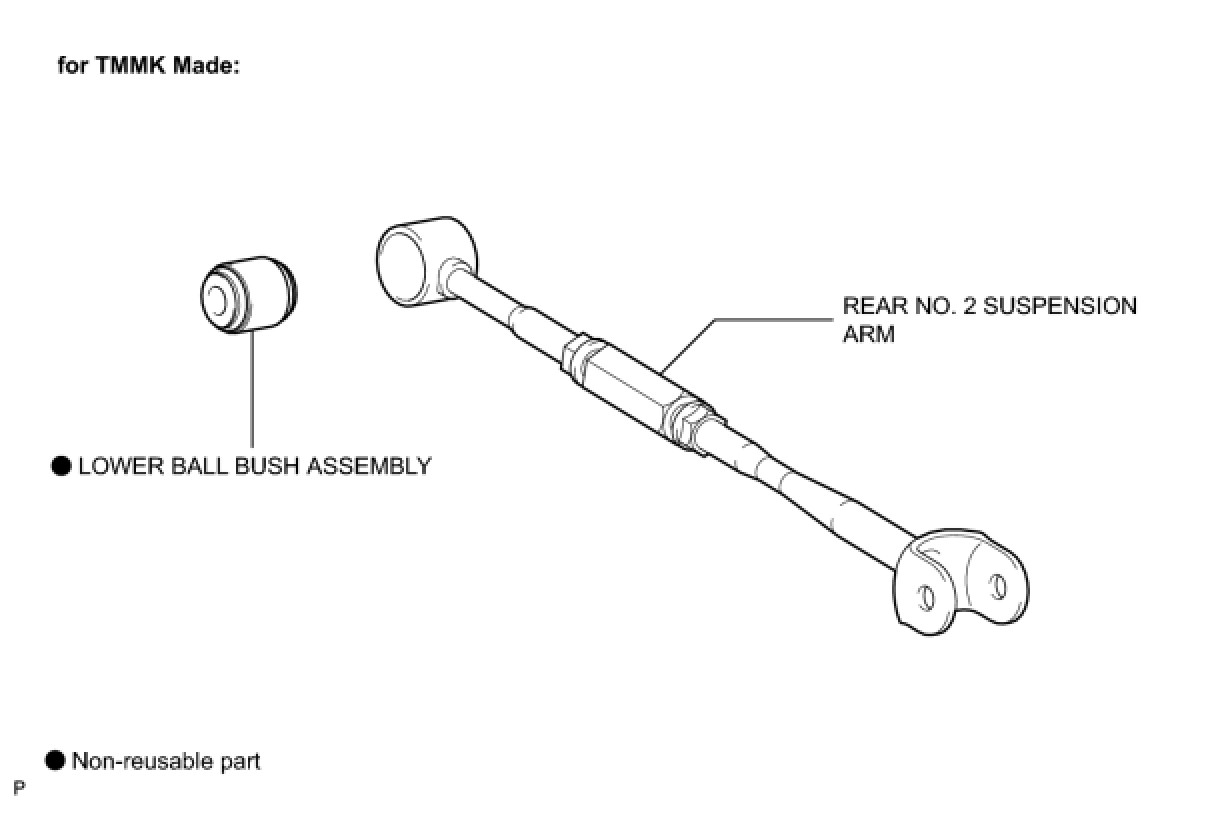

Rear No. 2 Suspension Arm
>>
Components
Components
SUSPENSION
: REAR NO. 2 SUSPENSION ARM: COMPONENTS
COMPONENTS
ILLUSTRATION
