SUSPENSION: REAR NO. 2 SUSPENSION ARM: REMOVAL

REMOVAL
NOTICE: Check if an old gasket still remains on the pipe. If so, remove it. Also, check if any bolts or nuts are rusted. If so, replace them.

1. REMOVE REAR WHEEL
2. REMOVE FLOOR NO. 1 UNDER COVER Removal
3. REMOVE FLOOR NO. 2 UNDER COVER Removal
4. REMOVE CENTER EXHAUST PIPE ASSEMBLY Removal
5. SEPARATE REAR STABILIZER LINK ASSEMBLY LH Removal
6. SEPARATE REAR STABILIZER LINK ASSEMBLY RH Removal
7. REMOVE REAR STABILIZER BAR NO. 1 BRACKET Removal
8. REMOVE REAR STABILIZER BAR
9. REMOVE REAR STABILIZER BUSHING Removal
10. SEPARATE REAR STRUT ROD Removal
11. SEPARATE REAR NO. 2 SUSPENSION ARM LH Removal
12. SEPARATE REAR NO. 2 SUSPENSION ARM RH Removal
13. SEPARATE REAR NO. 1 SUSPENSION ARM LH Removal
14. SEPARATE REAR NO. 1 SUSPENSION ARM RH Removal
15. REMOVE REAR SUSPENSION MEMBER LOWER STOPPER LH Removal
16. REMOVE REAR SUSPENSION MEMBER LOWER STOPPER RH Removal
17. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY Removal
18. REMOVE REAR NO. 2 SUSPENSION ARM LH

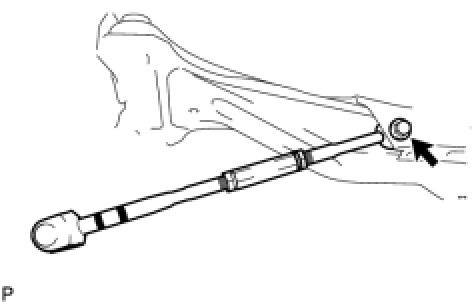

(a) Remove the bolt and the rear No. 2 suspension arm LH.
