Removal

SUSPENSION: REAR STRUT ROD: REMOVAL

REMOVAL

1. REMOVE FLOOR NO. 1 UNDER COVER

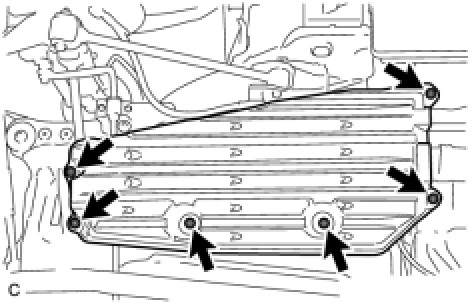

(a) Remove the 6 nuts, and the floor No. 1 under cover.
2. REMOVE FLOOR NO. 2 UNDER COVER

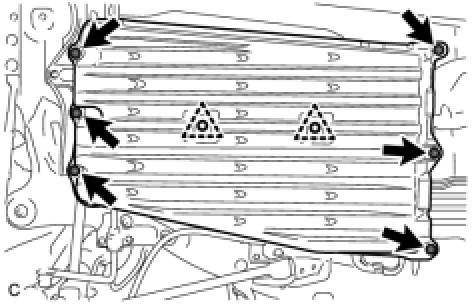

(a) Remove the 6 nuts.
(b) Remove the 2 clips and the floor No. 2 under cover.
3. REMOVE REAR WHEEL
4. SEPARATE PARKING BRAKE NO. 3 CABLE ASSEMBLY

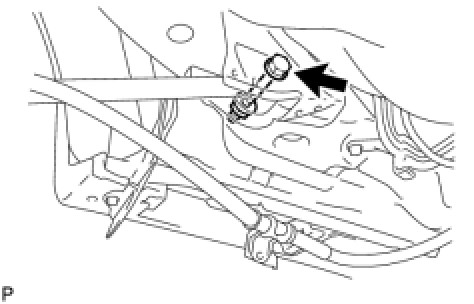

(a) Remove the bolt and separate the parking brake No. 3 cable assembly.
5. REMOVE REAR STRUT ROD





(a) Support the rear axle carrier with a jack.





(b) Remove the bolt and nut, and disconnect the strut rod (front side).
NOTICE: When removing the bolt, keep the nut from rotating.





(c) Remove the bolt, nut and strut rod from the rear axle carrier.
NOTICE: When removing the bolt, keep the nut from rotating.
