Pinout Values and Diagnostic Parameters

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. CHECK TIRE PRESSURE WARNING ECU

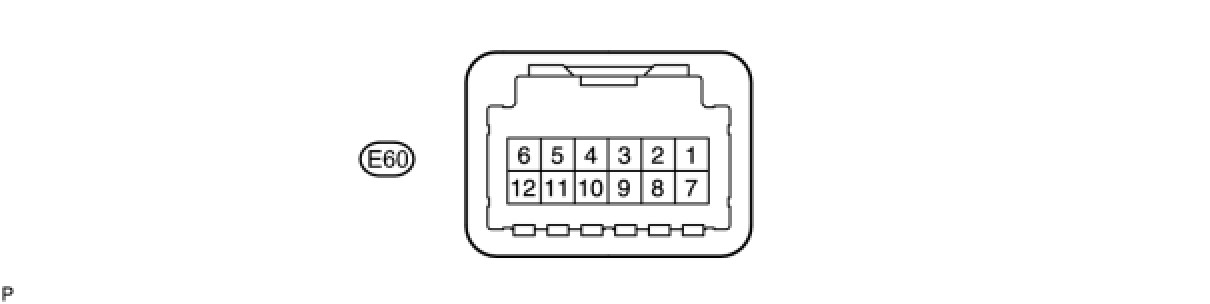

HINT: Inspect the connectors from the back side.





(a) Disconnect the E60 ECU connector.

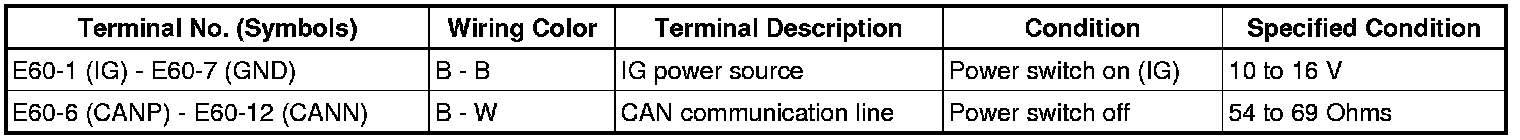

(b) Measure the voltage and resistance according to the value(s) in the table below.






(c) Connect the E60 ECU connector.

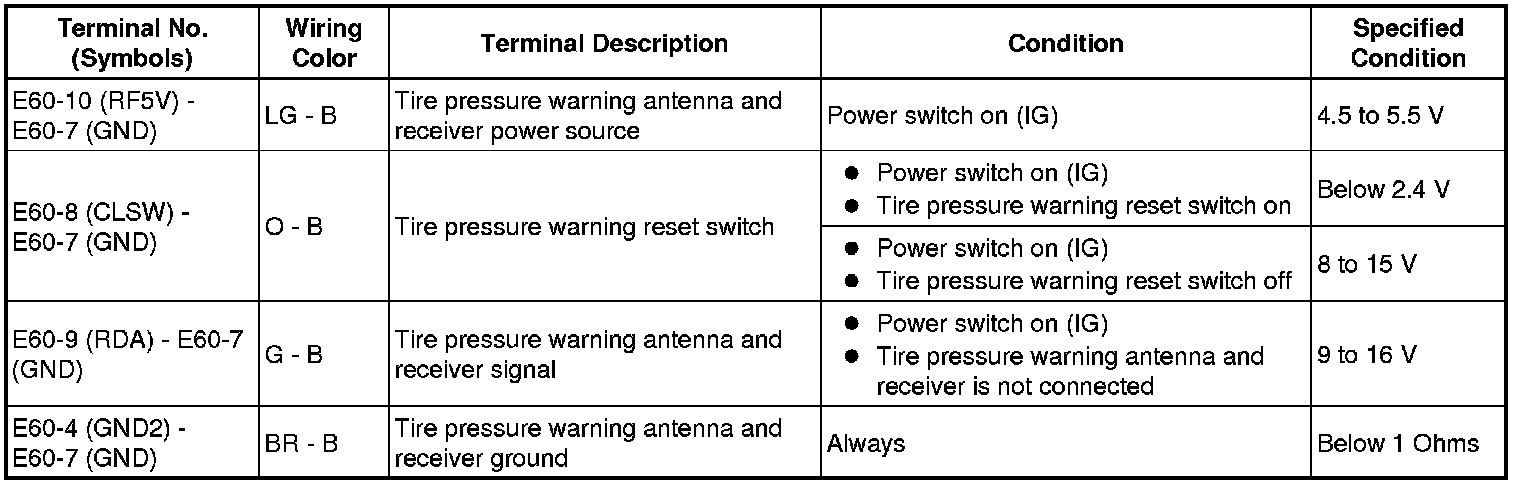

(d) Measure the voltage and resistance according to the value(s) in the table below.
