Repair Instruction - Customize Parameters

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS
HINT: The following items can be customized.
NOTICE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.

1. AIR CONDITIONING SYSTEM

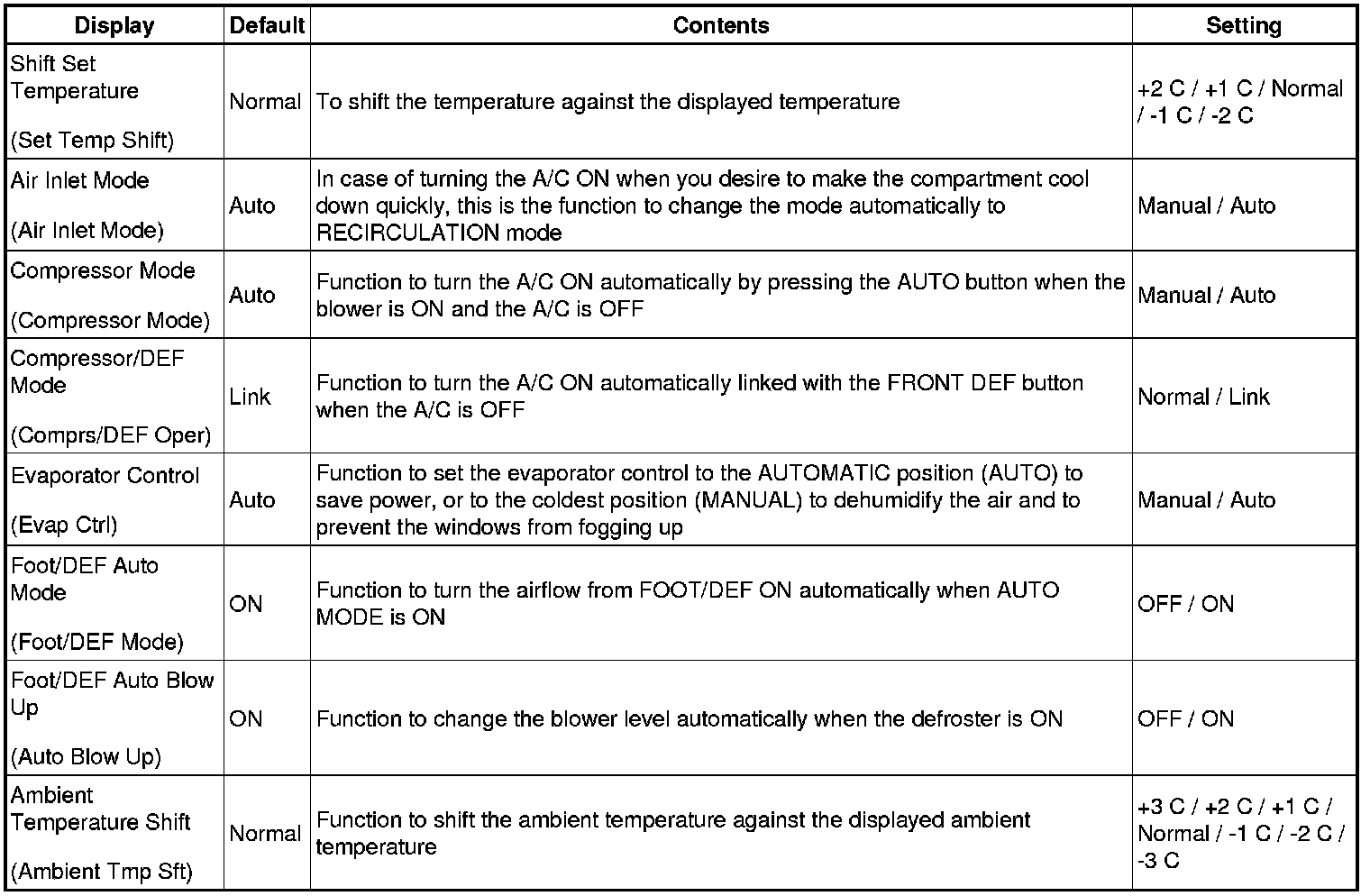

Air Conditioner





2. LIGHTING SYSTEM

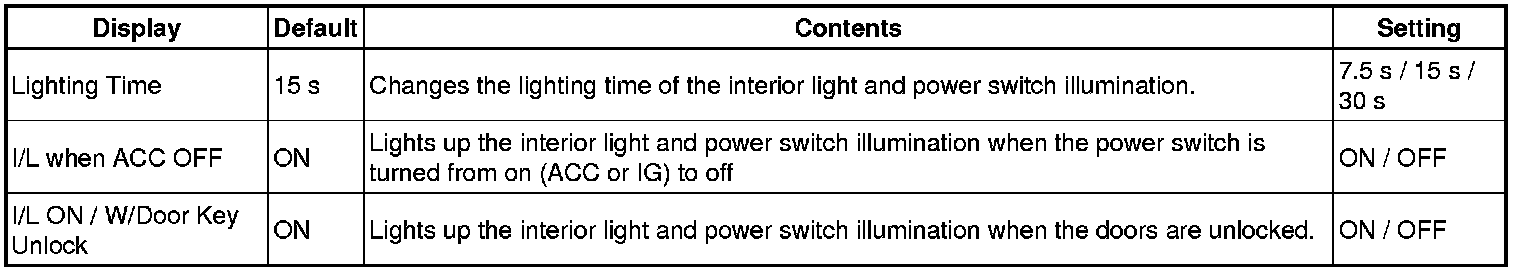

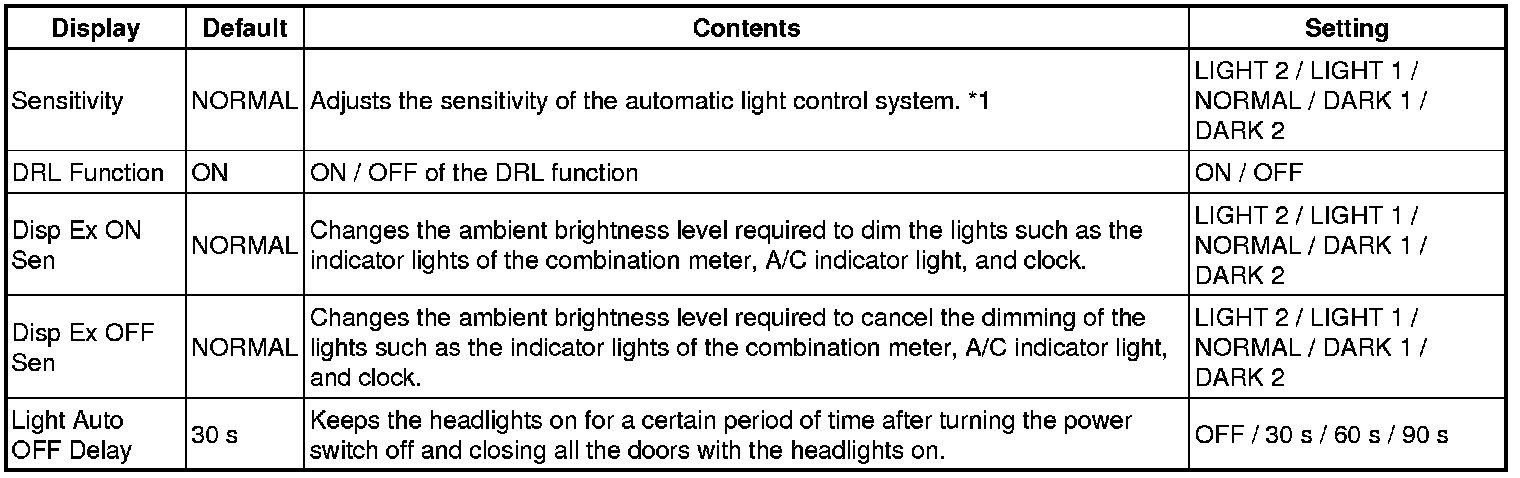

Illuminated Entry

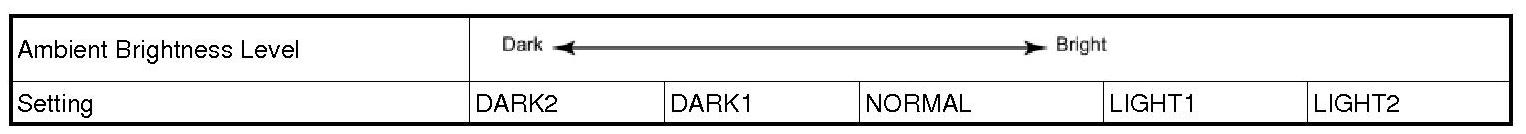

Light Control





HINT: Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.

Illustration *1





3. POWER DOOR LOCK CONTROL SYSTEM

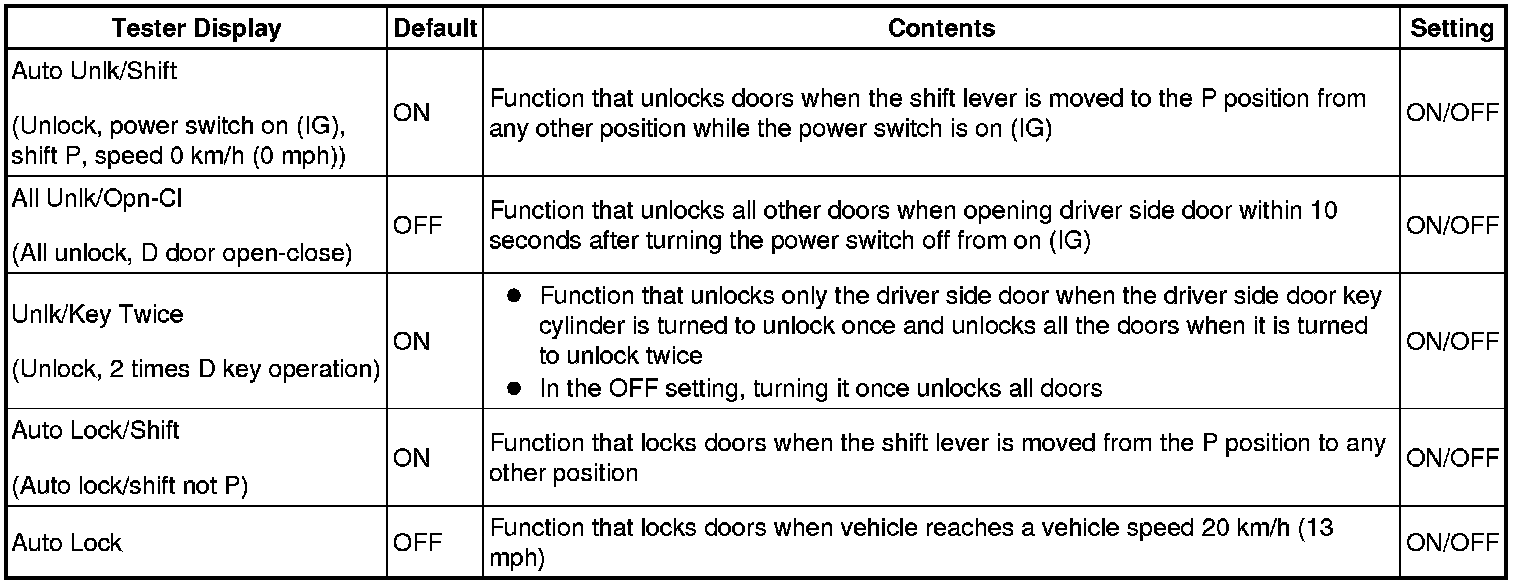

Door Lock





Wireless D Lock





4. WIRELESS DOOR LOCK CONTROL SYSTEM

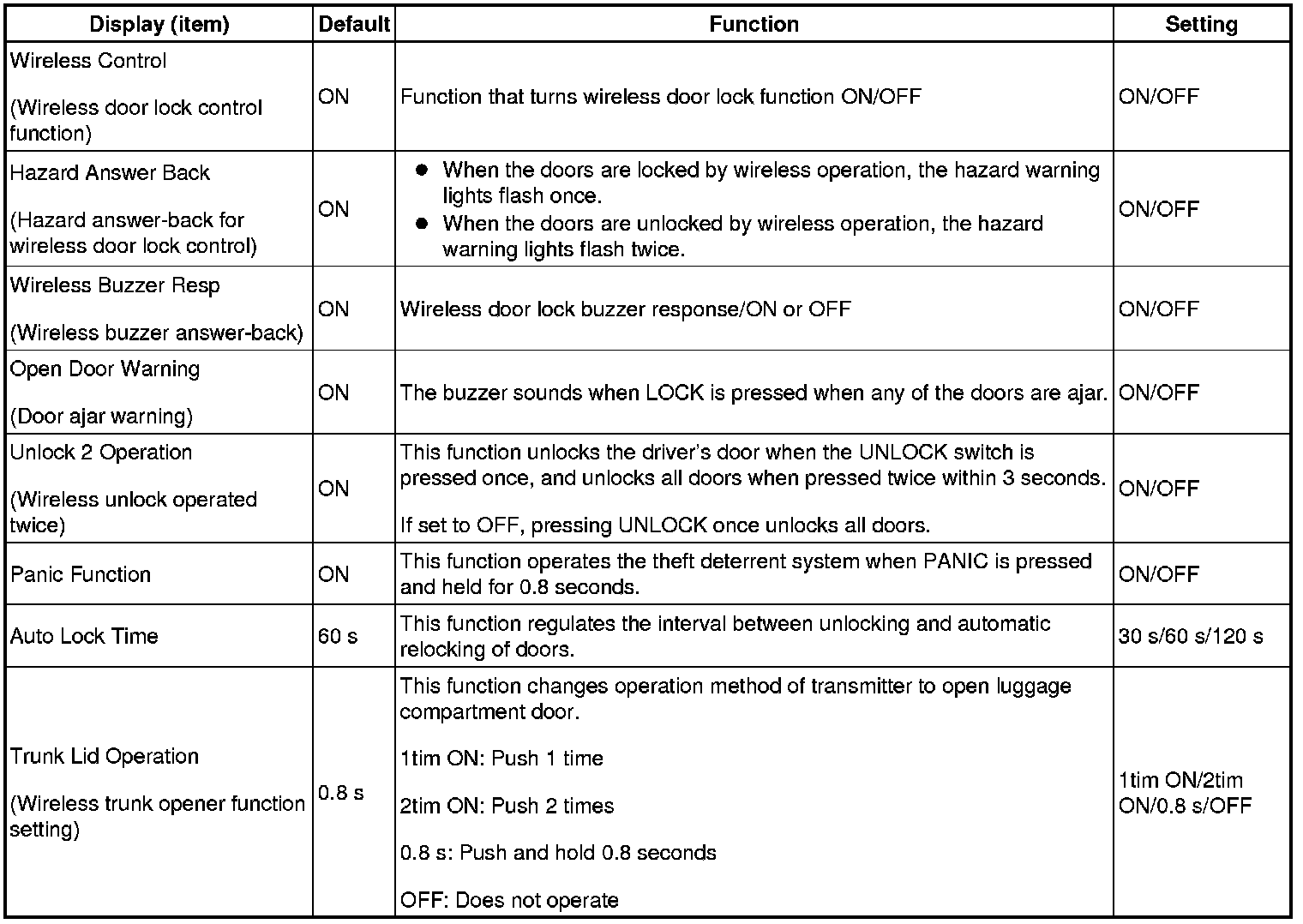

Wireless Door Lock





5. SMART KEY SYSTEM (DOOR LOCK)

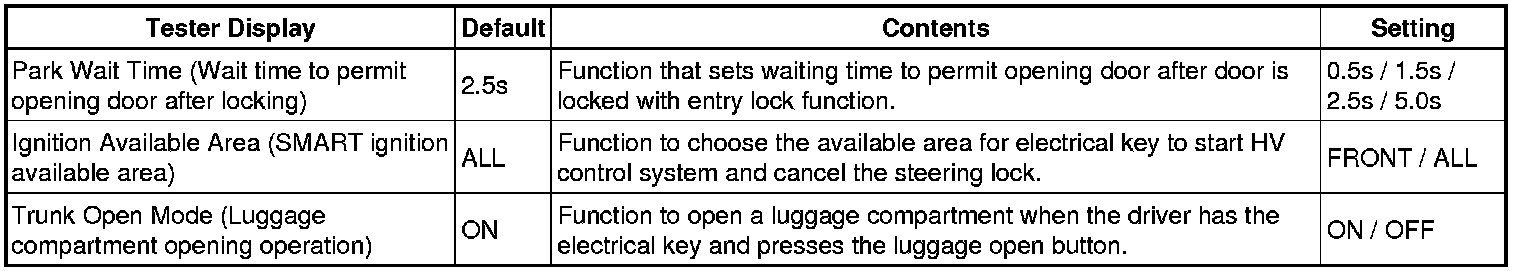

Smart





Wireless Door Lock

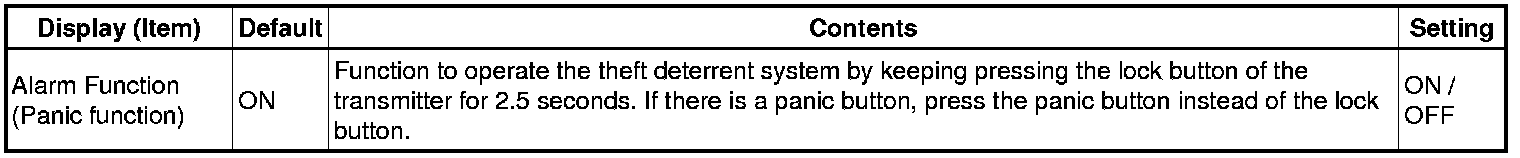

Warning





6. ENTRY UNLOCK MODE SWITCHING FUNCTION (Customizing Function Without Techstream)
(a) To change the vehicle to entry unlock mode switching function, make sure the vehicle power is off and simultaneously press and hold the electrical key's LOCK switch and another electrical key switch for 4.5 seconds.
- When the switches are pressed and held for 4.5 seconds, the entry door unlock mode changes in the following order: driver door mode, all door mode.
NOTICE: After pressing and holding the switches for 4.5 seconds, wait 4.5 seconds before performing the same procedure again.
- Driver door unlock mode:
When the driver door's touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.
- All door unlock mode:
When the touch sensor is touched, all doors unlock.

(b) The certification ECU receives this signal from the door control receiver and changes the smart key system to the entry unlock mode.

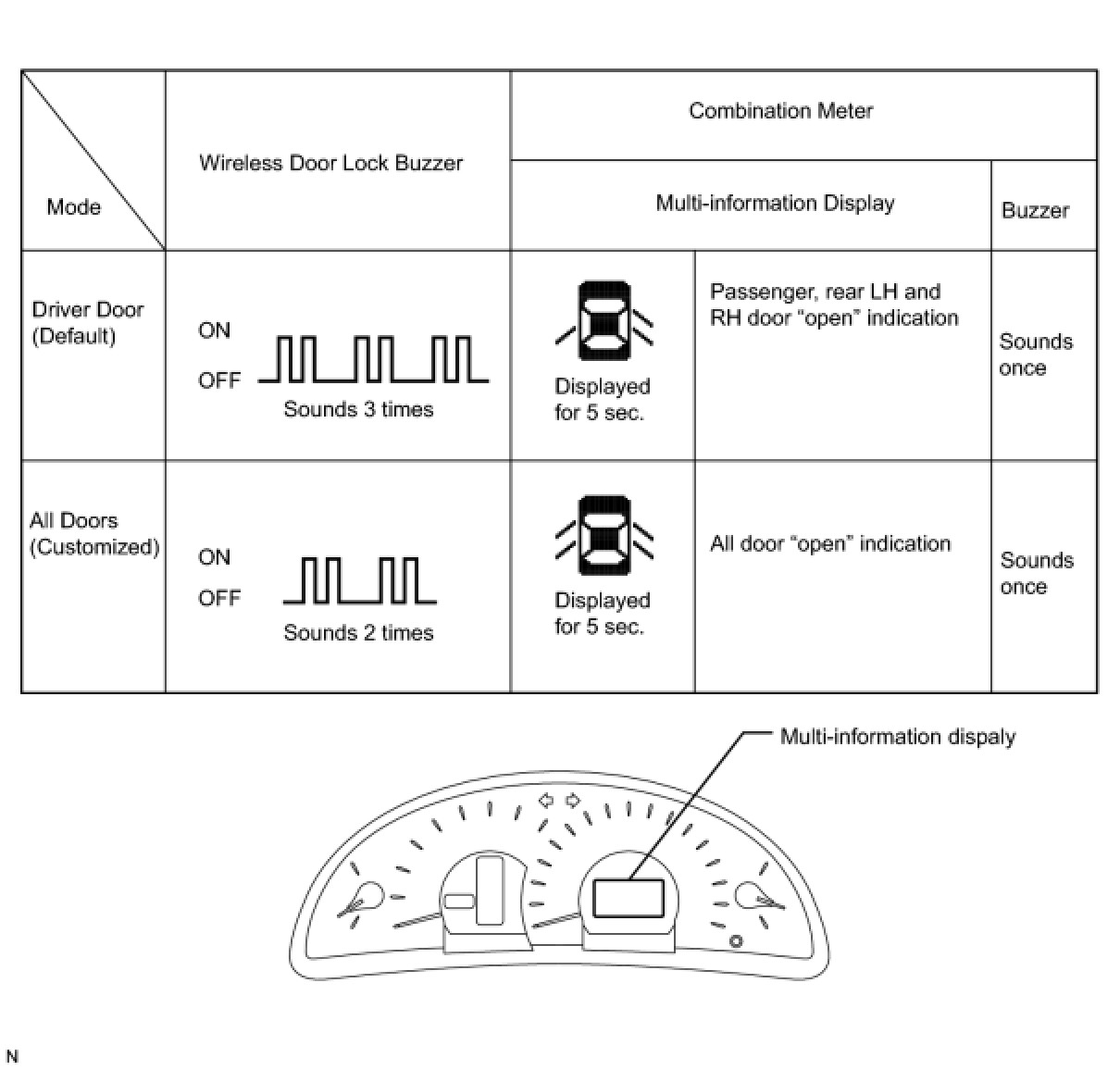

(c) The certification ECU sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.




HINT: The function only changes the entry unlock mode of the smart key system. It does not switch the unlocking of the wireless door lock control.

7. ELECTRICAL KEY CANCEL (Customizing Function Without Techstream)
The electrical key cancel operation disables the following functions:

- Entry Unlock/Lock
- Entry Luggage Compartment Open
- Electrical Key Lock-in Prevention
- Warning
- Memory Call

The operation procedures are as follows:
Precondition:
Power switch off, driver side door closed and unlocked.
(a) Unlock the driver side door once with the UNLOCK switch of the electrical key.
(b) Open the driver door within 5 seconds.
(c) Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
(d) Close and open the driver door twice within 30 seconds.
(Driver door: Close -> Open -> Close -> Open)
(e) Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
(f) Close and open the driver door within 30 seconds.
(Driver door: Close -> Open)
(g) Close the driver door within 5 seconds.
When electrical key cancel is activated, the wireless door lock buzzer sounds twice.
To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.
8. METER / GAUGE SYSTEM

Meter





HINT: This setting is only valid for the buzzer which sounds at 20 km/h (12.4 mph) or more.

9. SLIDING ROOF SYSTEM

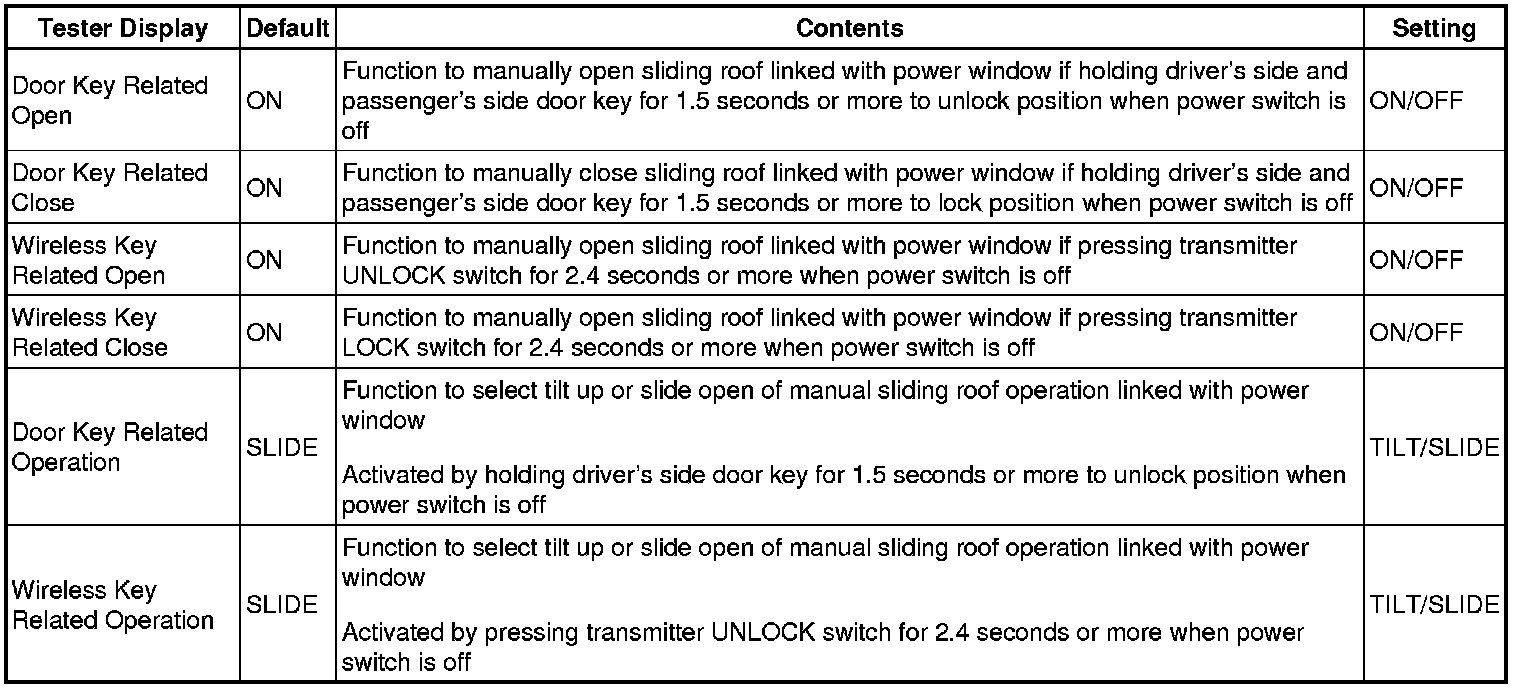

Sliding roof ECU
