P311 HYBRID TRANSMISSION / TRANSAXLE: INPUT SHAFT OIL SEAL: INSTALLATION

INSTALLATION

1. INSTALL INPUT SHAFT OIL SEAL

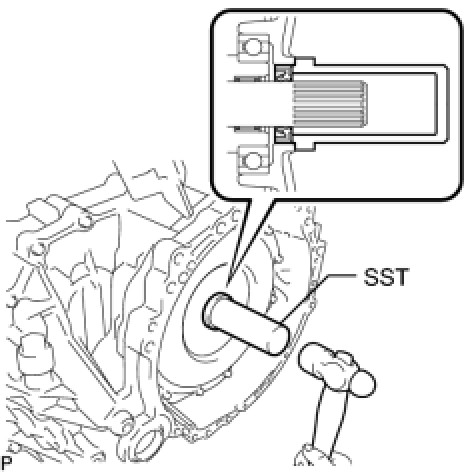

(a) Using SST and a hammer, drive in a new oil seal.
SST: 09388-40010
2. INSTALL HYBRID VEHICLE TRANSAXLE ASSEMBLY Installation
3. INSTALL FRONT ENGINE MOUNTING BRACKET Installation
4. INSTALL AUTOMATIC TRANSMISSION CASE COVER Installation
5. INSTALL HV INVERTER PROTECTOR ASSEMBLY

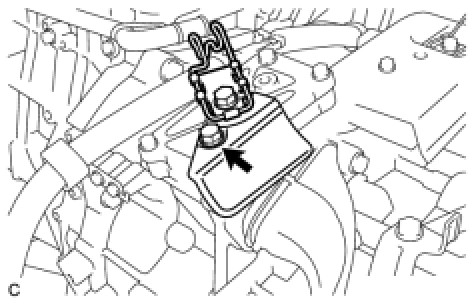

(a) Install the HV inverter protector with the bolt.
Torque: 10 Nm (102 kgf-cm, 7ft-lbf)
6. INSTALL NO. 2 TRANSMISSION CONTROL CABLE BRACKET Installation
7. CONNECT ENGINE WIRE Installation
8. INSTALL FLYWHEEL HOUSING UNDER COVER Installation
9. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH Installation
10. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH Installation
11. INSTALL FRONT FRAME ASSEMBLY Installation
12. INSTALL DYNAMIC DAMPER Installation
13. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
HINT: Installation.
