Removal

P311 HYBRID TRANSMISSION / TRANSAXLE: INPUT SHAFT OIL SEAL: REMOVAL

REMOVAL

1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
HINT: Removal.

2. REMOVE DYNAMIC DAMPER Removal
3. REMOVE FRONT FRAME ASSEMBLY Removal
4. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH Removal
5. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH Removal
6. REMOVE FLYWHEEL HOUSING UNDER COVER Removal
7. SEPARATE ENGINE WIRE Removal
8. REMOVE NO. 2 TRANSMISSION CONTROL CABLE BRACKET Removal





9. REMOVE HV INVERTER PROTECTOR ASSEMBLY
Remove the bolt and HV inverter protector.
10. REMOVE AUTOMATIC TRANSMISSION CASE COVER Removal
11. REMOVE FRONT ENGINE MOUNTING BRACKET Removal
12. REMOVE HYBRID VEHICLE TRANSAXLE ASSEMBLY Removal
13. REMOVE INPUT SHAFT OIL SEAL

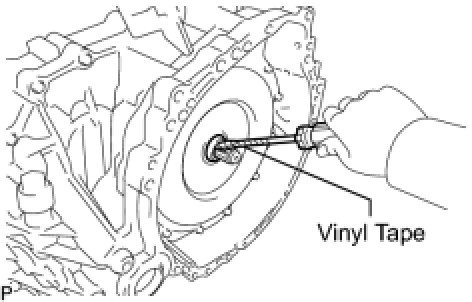

(a) Using a screwdriver with its tip taped, remove the oil seal.
