P311 HYBRID TRANSMISSION / TRANSAXLE: HYBRID TRANSAXLE OIL SEAL: INSTALLATION

INSTALLATION

1. REMOVE HYBRID VEHICLE TRANSAXLE OIL SEAL

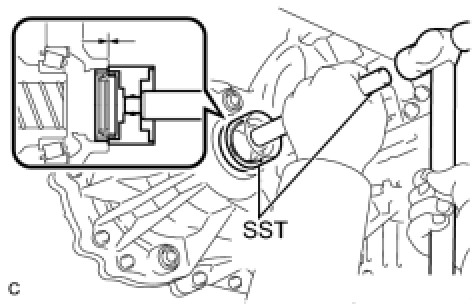

(a) Install the oil seal LH side.




(1) Using SST and a hammer, tap in a new oil seal until its surface is flush with the case edge.
SST: 09223-15020
SST: 09950-70010
09951-07150
Oil seal installation depth:
-0.5 to 0.5 mm (-0.020 to 0.020 in.)
(2) Coat the lip of the oil seal with MP grease.

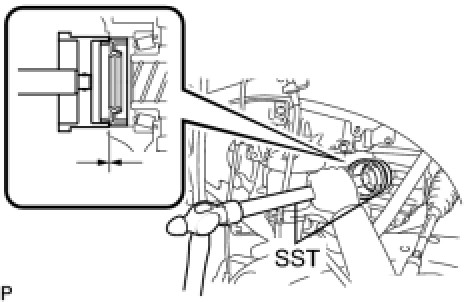

(b) Install the oil seal RH side.




(1) Using SST and a hammer, tap in a new oil seal until its surface is flush with the case edge.
SST: 09950-70010
09951-07150
SST: 09710-30050
Oil seal installation depth:
-0.5 to 0.5 mm (-0.020 to 0.020 in.)
(2) Coat the lip of the oil seal with MP grease.
2. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH Installation
3. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH Installation
4. INSTALL FRONT AXLE ASSEMBLY Installation
5. INSTALL FRONT SUSPENSION LOWER NO. 1 ARM Installation
6. INSTALL TIE ROD SUB-ASSEMBLY Installation
7. INSTALL FRONT SPEED SENSOR Installation
8. INSTALL FRONT STABILIZER LINK ASSEMBLY Installation
9. INSTALL FRONT AXLE HUB NUT Installation
10. INSTALL FRONT WHEEL Installation
11. ADD HYBRID TRANSAXLE FLUID Procedures
12. INSPECT HYBRID TRANSAXLE FLUID Procedures
13. ADJUST FRONT WHEEL ALIGNMENT
HINT: Service and Repair.

14. CHECK ABS SPEED SENSOR SIGNAL
HINT: Test Mode Procedure.
