Removal

P311 HYBRID TRANSMISSION / TRANSAXLE: HYBRID TRANSAXLE OIL SEAL: REMOVAL

REMOVAL

1. DRAIN HYBRID TRANSAXLE FLUID Procedures
2. REMOVE FRONT WHEEL
3. REMOVE FRONT AXLE HUB NUT Removal
4. SEPARATE FRONT STABILIZER LINK ASSEMBLY Removal
5. SEPARATE FRONT SPEED SENSOR Removal
6. SEPARATE TIE ROD SUB-ASSEMBLY Removal
7. SEPARATE FRONT SUSPENSION LOWER NO. 1 ARM Removal
8. SEPARATE FRONT AXLE ASSEMBLY Removal
9. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH Removal
10. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH Removal
11. SECURE FRONT AXLE ASSEMBLY Removal
12. REMOVE HYBRID VEHICLE TRANSAXLE OIL SEAL

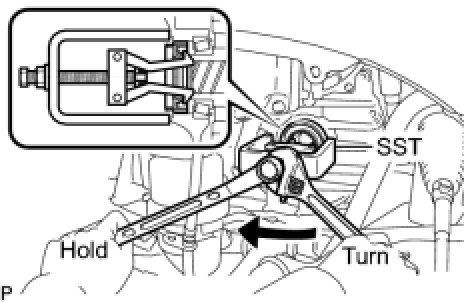

(a) Remove the oil seal LH side.




(1) Using SST, remove the oil seal.
SST: 09514-35011

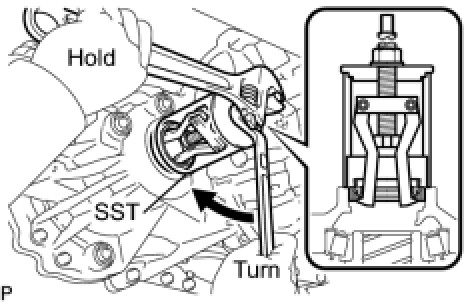

(b) Remove the oil seal RH side.




(1) Using SST, remove the oil seal.
SST: 09612-30012
