Transmission Position Sensor/Switch: Adjustments

P311 HYBRID TRANSMISSION / TRANSAXLE: SHIFT LEVER POSITION SENSOR: ADJUSTMENT

ADJUSTMENT

1. ADJUST SHIFT LEVER POSITION SENSOR





(a) Loosen the 2 bolts of the shift lever position sensor and set the shift lever to the N position.





(b) Align the protruding part with the neutral basic line.
NOTICE: There is play on the nut stopper side (protruding part). Align the center point of the range of the play with the neutral basic line.

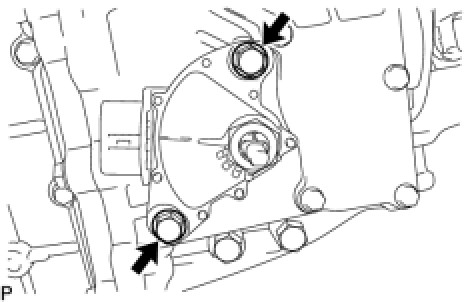

(c) Tighten the 2 bolts in the order shown in the illustration.
Torque: 13 Nm (133 kgf-cm, 10ft-lbf)
2. INSPECT SHIFT LEVER POSITION SENSOR Testing and Inspection
