P311 HYBRID TRANSMISSION / TRANSAXLE: HYBRID TRANSAXLE FLUID: REPLACEMENT

REPLACEMENT

1. DRAIN HYBRID TRANSAXLE FLUID

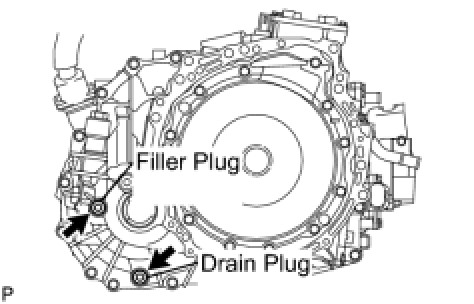

(a) Using a 10 mm socket hexagon wrench, remove the filler plug and gasket.
(b) Using a 10 mm socket hexagon wrench, remove the drain plug and gasket.
(c) Using a 10 mm socket hexagon wrench, install the drain plug and a new gasket.
Torque: 39 Nm (398 kgf-cm, 29ft-lbf)
2. ADD HYBRID TRANSAXLE FLUID
(a) Add fluid.
HINT: Fluid capacity: 4.1 liters (4.3 US qts, 3.6 lmp. qts.)

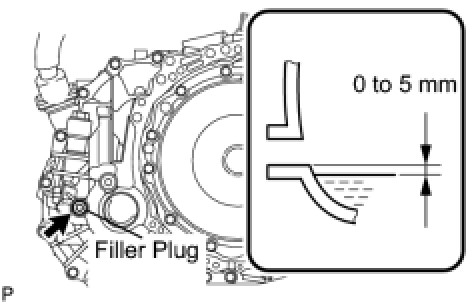

(b) Check that the fluid surface is within 5 mm (0.20 in.) from the inner surface of the differential filler plug opening.
NOTICE :
- Stop the vehicle on a level surface.
- Recheck the transaxle fluid level after driving following fluid replacement.
- Insufficient or excessive amounts of transaxle fluid may damage the hybrid transaxle.

(c) Check the oil level.
(d) Using a 10 mm socket hexagon wrench, install the filler plug and a new gasket.
Torque: 39 Nm (398 kgf-cm, 29ft-lbf)
3. INSPECT HYBRID TRANSAXLE FLUID
(a) Using a 10 mm socket hexagon wrench, remove the filler plug and gasket.





(b) Check that the fluid surface is within 5 mm (0.20 in.) from the inner surface of the differential filler plug opening.
NOTICE :
- Stop the vehicle on a level surface.
- Recheck the transaxle fluid level after driving following fluid replacement.
- Insufficient or excessive amounts of transaxle fluid may damage the hybrid transaxle.

(c) Check for leaks if the fluid level is low.
(d) Using a 10 mm socket hexagon wrench, install the filler plug and a new gasket.
Torque: 39 Nm (398 kgf-cm, 29ft-lbf)
