Shift Cable: Adjustments

P311 HYBRID TRANSMISSION / TRANSAXLE: TRANSAXLE CONTROL CABLE ASSEMBLY: ADJUSTMENT

ADJUSTMENT

1. ADJUST TRANSMISSION CONTROL CABLE ASSEMBLY
(a) Move the shift lever to the N position.





(b) Remove the nut from the control shaft lever.
(c) Disconnect the transmission control cable assembly from the control shaft lever.

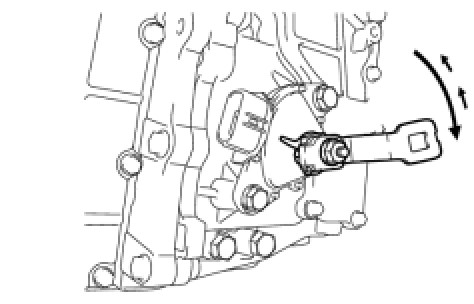

(d) Push the control shaft fully downward.
(e) Return the control shaft lever 2 notches to the N position.





(f) Move the slider in the direction indicated by arrow A and pull up the lock piece in the direction indicated by arrow B.
NOTICE: Do not damage the boot.





(g) Install the transmission control cable to the control shaft lever with the nut.
Torque: 15 Nm (150 kgf-cm, 11ft-lbf)
NOTICE :
- If the control cable end is excessively pushed up, the shift lever cannot be adjusted.
- When tightening the nut, confirm that the control cable is properly stretched.





(h) Push in the lock piece.
NOTICE :
- Before pushing in the lock piece, make sure that the shift lever and control shaft lever are in the N position.
- Firmly push in the lock piece until the slider lock is engaged.

(i) Start the engine and make sure that the vehicle moves forward when moving the lever from the N to the D position and moves rearward when moving it to the R position.
If it becomes hard to move the shift lever, readjust the shift lever position.
