P311 HYBRID TRANSMISSION / TRANSAXLE: TRANSAXLE CONTROL CABLE ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL NO. 2 SHIFT CABLE GROMMET RETAINER

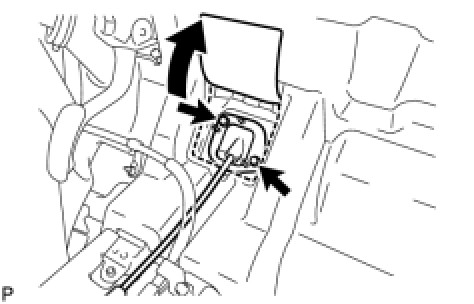

(a) Pass the transmission control cable assembly from the cabin to the engine compartment.
(b) Install the shift cable grommet retainer to the transmission control cable assembly.





(c) Install the shift cable grommet retainer with the 2 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44in-lbf)
2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

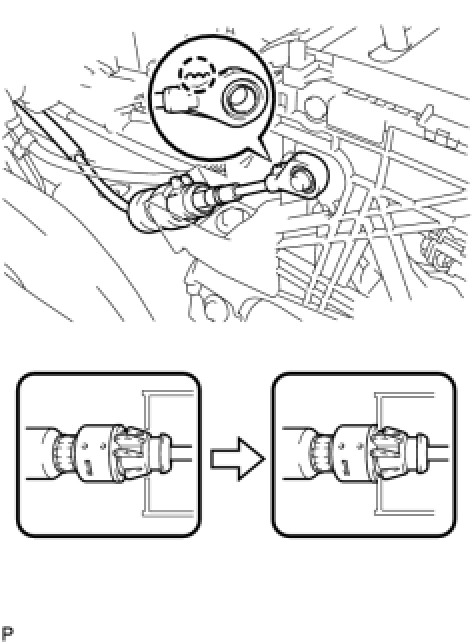

(a) Install the transmission control cable assembly as shown in the illustration.
HINT :
- Install the floor shift cable with the uneven surface facing up.
- Securely engage the claws of the floor shift cable.

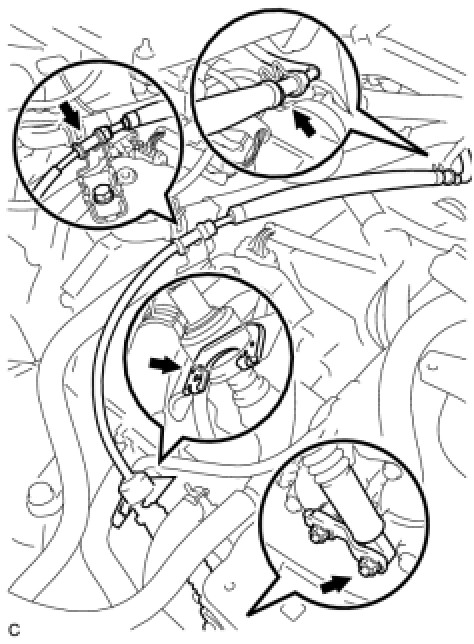

(b) Connect the transmission control cable assembly to the No. 2 transmission control cable bracket and No. 3 transmission control cable bracket.
(c) Connect the transmission control cable assembly to the transmission control cable bracket No. 1 with a new clip.
(d) Install the transmission control cable to the control shaft lever with the nut.
Torque: 15 Nm (150 kgf-cm, 11ft-lbf)

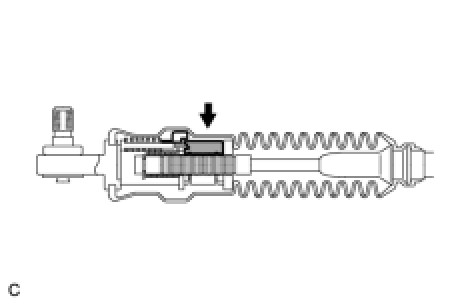

(e) Push in the lock piece of the transmission control cable.
NOTICE :
- Before pushing in the lock piece, make sure that the shift lever and control shaft lever are in the N position.
- Firmly push in the lock piece until the slider lock is engaged.
HINT: After pushing in the lock piece, make sure that the boot is not deformed.

3. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation
4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
5. INSTALL AIR CLEANER INLET ASSEMBLY Installation
6. INSTALL ENGINE UNDER COVER LH
7. INSTALL ENGINE UNDER COVER RH
8. INSTALL AIR CONDITIONING UNIT (for TMC Made)
HINT: Installation.

9. INSTALL AIR CONDITIONING UNIT (for TMMK Made)
HINT: Installation.

10. INSPECT SHIFT LEVER POSITION Adjustments
11. ADJUST SHIFT LEVER POSITION Adjustments
12. INSPECT SHIFT LEVER OPERATION Adjustments
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
