P311 HYBRID TRANSMISSION / TRANSAXLE: SHIFT LEVER: REASSEMBLY

REASSEMBLY

1. INSTALL SHIFT LOCK CONTROL ECU





(a) Install the shift lock control ECU to the shift lever.
2. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY





(a) Insert the indicator light wire into the shift lock control unit while aligning the groove on the unit with the indicator light guide key.
(b) Install the indicator light guide by turning it clockwise until it securely locks.
(c) Install the indicator light wire to the clamp on the shift lock control unit.





(d) Connect terminals (4) and (8) of the indicator light wire.
(e) Push the stopper.
3. INSTALL CONTROL POSITION INDICATOR PLATE

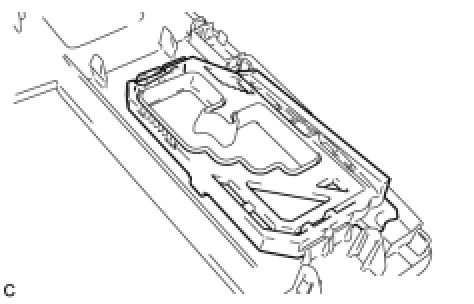

(a) Install the control position indicator plate.
(b) Install the shift lock release button cover.
4. INSTALL POSITION INDICATOR LIGHT GUIDE





(a) Install the position indicator light guide.
