P311 HYBRID TRANSMISSION / TRANSAXLE: SHIFT LEVER: INSTALLATION

INSTALLATION

1. INSTALL SHIFT LOCK CONTROL UNIT





(a) Connect the shift lock ECU connector and transmission control switch wire connector.
(b) Install the shift lock control unit with the 4 bolts.
Torque: 12 Nm (122 kgf-cm, 9ft-lbf)
2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Install the transmission control cable assembly as shown in the illustration.
HINT :
- Install the floor shift cable with the uneven surface facing up.
- Securely engage the claws of the floor shift cable.

3. INSTALL FLOOR CARPET BRACKET LH
4. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made) Installation
5. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made) Installation
6. INSTALL CONSOLE BOX ASSEMBLY (for TMC Made) Installation
7. INSTALL CONSOLE BOX ASSEMBLY (for TMMK Made) Installation
8. INSTALL CONSOLE BOX CARPET (for TMC Made) Installation
9. INSTALL CONSOLE BOX CARPET (for TMMK Made) Installation
10. INSTALL CONSOLE BOX POCKET (for TMC Made) Installation
11. INSTALL CONSOLE BOX POCKET (for TMMK Made) Installation
12. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made) Installation
13. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made) Installation
14. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for TMC Made) Installation
15. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for TMMK Made) Installation
16. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for TMC Made) Installation
17. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for TMMK Made) Installation
18. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for TMC Made) Installation
19. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for TMMK Made) Installation
20. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for TMC Made) Installation
21. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for TMMK Made) Installation

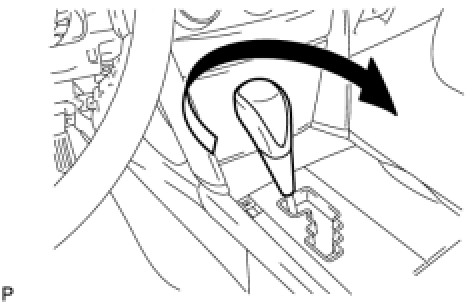

22. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY





(a) Install the shift lever knob sub-assembly.
23. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (for TMC Made) Installation
24. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (for TMMK Made) Installation
25. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made) Installation
26. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made) Installation
27. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation
28. INSTALL FRONT DOOR SCUFF PLATE LH Installation
29. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

Torque: 5.4 Nm (55 kgf-cm, 48in-lbf)
30. INSPECT SHIFT LEVER POSITION Adjustments
31. ADJUST SHIFT LEVER POSITION Adjustments
32. ADJUST TRANSMISSION CONTROL CABLE ASSEMBLY Adjustments
33. INSPECT SHIFT LEVER OPERATION Adjustments
