Removal

P311 HYBRID TRANSMISSION / TRANSAXLE: SHIFT LEVER: REMOVAL

REMOVAL

1. REMOVE CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment Service Precautions.
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE FRONT DOOR SCUFF PLATE LH Removal
3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH Removal
4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made) Removal
5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made) Removal
6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (for TMC Made) Removal
7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (for TMMK Made) Removal
8. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

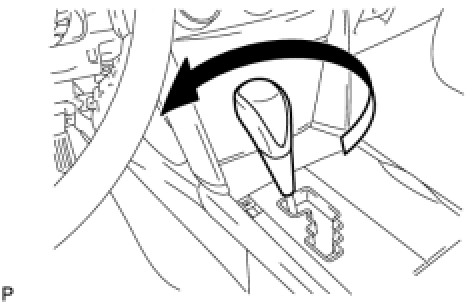

(a) Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.
9. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for TMC Made) Removal
10. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for TMMK Made) Removal
11. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for TMC Made) Removal
12. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for TMMK Made) Removal
13. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for TMC Made) Removal
14. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for TMMK Made) Removal
15. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for TMC Made) Removal
16. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for TMMK Made) Removal
17. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made) Removal
18. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made) Removal
19. REMOVE CONSOLE BOX POCKET (for TMC Made) Removal
20. REMOVE CONSOLE BOX POCKET (for TMMK Made) Removal
21. REMOVE CONSOLE BOX CARPET (for TMC Made) Removal
22. REMOVE CONSOLE BOX CARPET (for TMMK Made) Removal
23. REMOVE CONSOLE BOX ASSEMBLY (for TMC Made) Removal
24. REMOVE CONSOLE BOX ASSEMBLY (for TMMK Made) Removal
25. REMOVE NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made) Removal
26. REMOVE NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made) Removal
27. REMOVE FLOOR CARPET BRACKET LH (for TMC Made) Removal
28. REMOVE FLOOR CARPET BRACKET LH (for TMMK Made) Removal
29. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
(a) Disconnect the end of the transmission control cable assembly from the shift lock control unit.





(b) Disconnect the transmission control cable assembly from the shift lock control unit.
30. REMOVE SHIFT LOCK CONTROL UNIT





(a) Disconnect the shift lock control ECU connector and transmission control switch wire connector.





(b) Remove the 4 bolts and shift lever.
