P311 HYBRID TRANSMISSION / TRANSAXLE: SHIFT LEVER: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. CHECK SHIFT LOCK OPERATION
(a) Move the shift lever to the P position.
(b) Turn the power switch off.
(c) Check that the shift lever cannot be adjusted to any position other than P.
(d) Turn the power switch on (READY), depress the brake pedal and check that the shift lever can be adjusted to the other positions.
(e) Check that the back-up light comes on and the reverse warning buzzer sounds when the shift lever is set in the R position, but the light and buzzer do not operate in other positions. If a failure is found, check the shift lever position sensor for continuity.
2. CHECK SHIFT LOCK RELEASE BUTTON OPERATION
(a) Using a screwdriver, remove the shift lock release cover.
(b) When operating the shift lever with the shift lock release button pressed, check that the lever can be adjusted to any position other than P.
3. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY

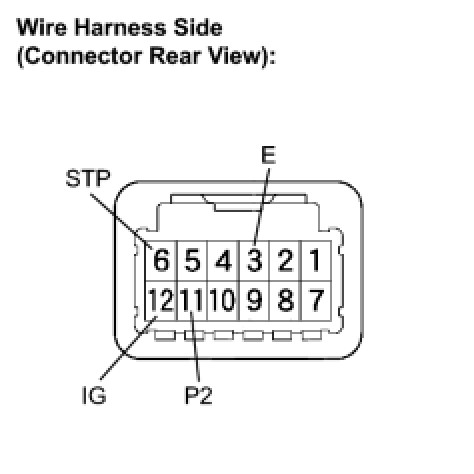

(a) Measure the voltage according to the value(s) in the table below.
HINT: Do not disconnect the shift lock control unit assembly connector.

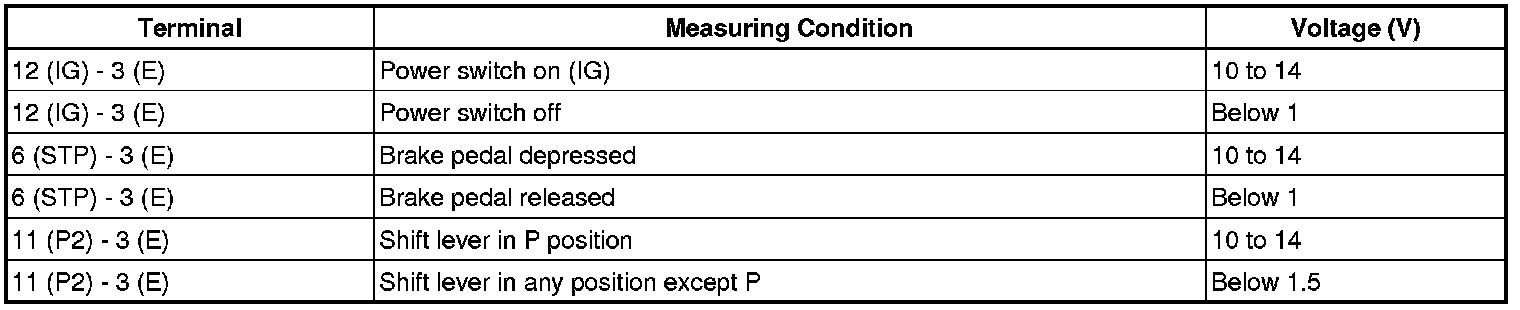

Standard voltage:





If the result is not done as specified, replace the shift lever assembly.





(b) Measure the resistance according to the value(s) in the table below.
HINT: Do not disconnect the shift lock control unit assembly connector.

Standard resistance:





If the result is not done as specified, replace the shift lever assembly.
