Continuously Variable Transmission/Transaxle: Testing and Inspection

P311 HYBRID TRANSMISSION / TRANSAXLE: HYBRID TRANSAXLE SYSTEM: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT FLUID PRESSURE OF OIL PUMP
NOTICE: Do the test at normal operating fluid temperature 50 to 80°C (122 to 176°F).

(a) Lift up the vehicle.

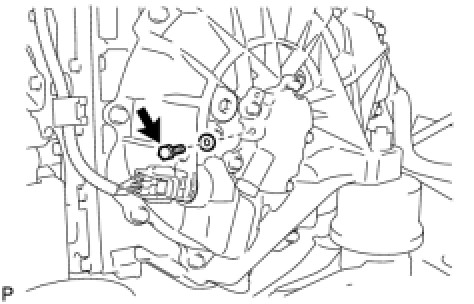

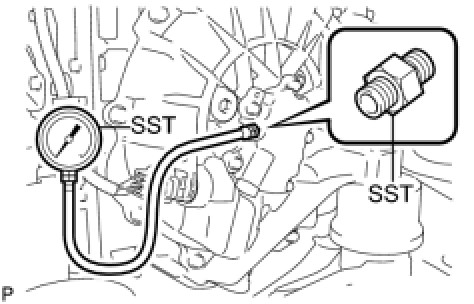

(b) Remove the fluid pump cover plug and install SST.
SST: 09992-00095
09992-00112
09992-00271
(c) Set the vehicle to inspection mode Service Precautions.
(d) Measure the fluid pressure.
Fluid pressure:
9.8 kPa (0.1 kgf/cm2, 1.4 psi) or more
NOTICE: Be sure to cancel the inspection mode immediately after the fluid pressure check is completed Service Precautions.





(e) Install a new O-ring and fluid pump cover plug.
Torque: 8.0 Nm (82 kgf-cm, 71in-lbf)
