Reassembly

DRIVE SHAFT: FRONT DRIVE SHAFT: REASSEMBLY

REASSEMBLY

1. INSTALL FRONT DRIVE SHAFT BEARING

(a) Install a new bearing bracket hole snap ring to the front drive shaft assembly RH.
(b) Using SST and a steel plate, install a new front drive shaft bearing.
SST: 09527-30010
SST: 09527-10011
NOTICE: The bearing should be completely installed.

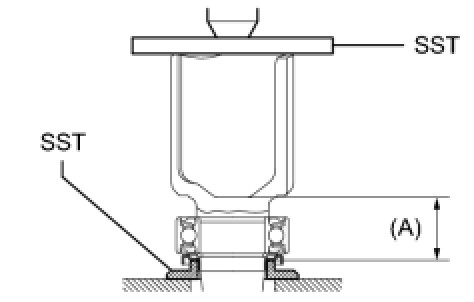

(a) Using SST and a press, install a new drive shaft dust cover.
SST: 09726-40010
SST: 09527-10011
Distance (A):
41.6 to 42.6mm (1.6378 to 1.6772in.)
NOTICE :
- The dust cover should be completely installed.
- Be careful not to damage the dust deflector.

3. INSTALL FRONT DRIVE SHAFT DUST COVER RH

(a) Using SST and a press, install a new drive shaft dust cover RH until distance (A) from the tip of the center drive shaft to the drive shaft dust cover RH meets the specification.
SST: 09527-10011
Distance (A):
110.0 to 111.0 mm (4.3307 to 4.3701 in.)
NOTICE :
- The dust cover should be completely installed.
- Be careful not to damage the dust deflector.

4. INSTALL FRONT DRIVE SHAFT DUST COVER LH

(a) Using SST and a press, install a new drive shaft dust cover LH.
SST: 09527-10011
NOTICE :
- The dust cover should be completely installed.
- Be careful not to damage the dust deflector.

5. INSTALL FRONT AXLE OUTBOARD JOINT BOOT

(a) Hold the drive shaft lightly in a vise between aluminium plates.
HINT: Before installing the boots, wrap the spline of the drive shaft with vinyl tape to prevent the boots from being damaged.

(b) Temporarily install a new outboard joint boot to the drive shaft with the 2 clamps.
(c) Pack the outboard joint shaft and boot with grease.
Grease capacity:
190 to 200 g (6.7 to 7.1 oz.)
6. INSTALL FRONT AXLE OUTBOARD JOINT BOOT CLAMP
(a) for Omega type:

(1) Hold the drive shaft lightly in a vise between aluminum plates.
NOTICE: Do not overtighten the vise.
(2) Install the 2 outboard joint boot clamps onto the boot.
(3) Place SST onto the outboard joint boot clamp.
SST: 09521-24010
(4) Tighten the SST so that the outboard joint boot clamp is pinched.
NOTICE: Do not overtighten the SST.

(5) Using SST, measure the clearance of the outboard joint boot clamp.
SST: 09240-00020
Clearance:
0.5 to 1.5 mm (0.0197 to 0.0591 in.)
NOTICE: If the measured value is greater than the specified value, retighten the clamp.

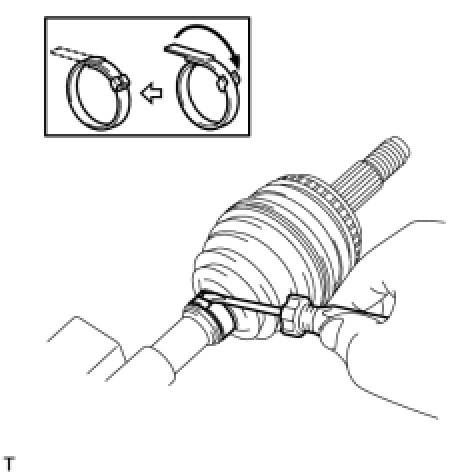

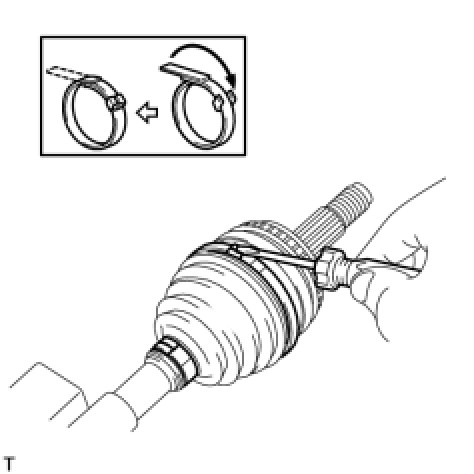

(b) for One touch type:

(1) Using a screwdriver, install the outboard joint boot clamp as shown in the illustration.
7. INSTALL NO. 2 FRONT AXLE OUTBOARD JOINT BOOT CLAMP
(a) for Omega type:

(1) Install the No. 2 outboard joint boot clamp onto the boot.
(2) Place SST onto the No. 2 outboard joint boot clamp.
SST: 09521-24010
(3) Tighten the SST so that the No. 2 outboard joint boot clamp is pinched.
NOTICE: Do not overtighten the SST.

(4) Using SST, measure the clearance of the No. 2 outboard joint boot clamp.
SST: 09240-00020
Clearance:
0.5 to 1.5 mm (0.0197 to 0.0591 in.)
NOTICE: If the measured value is greater than the specified value, retighten the clamp.

(b) for One touch type:

(1) Using a screwdriver, install the No. 2 outboard joint boot clamp as shown in the illustration.
8. INSTALL FRONT DRIVE SHAFT DAMPER

(a) Install the drive shaft damper to the drive shaft.
(b) Make sure that the damper is on the shaft groove.

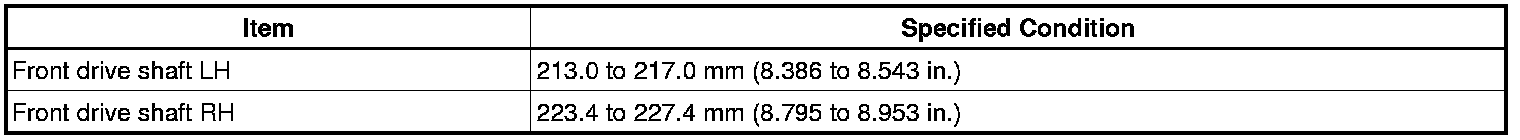

(c) Set the distance as specified below.
Distance (A):

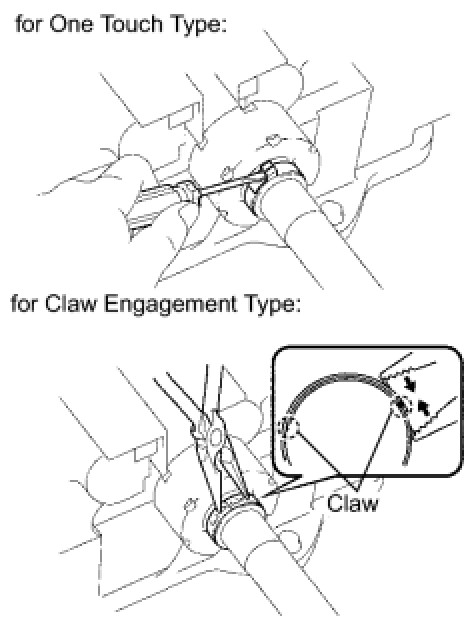

(d) for One touch type:
(1) Using a screwdriver, install a new drive shaft damper clamp as shown in the illustration.
(e) for Claw engagement type:
(1) Using needle nose pliers, install a new drive shaft damper clamp as shown in the illustration.
9. INSTALL FRONT DRIVE INBOARD JOINT ASSEMBLY

(a) Temporarily install a new inboard joint boot to the drive shaft with the 2 clamps.

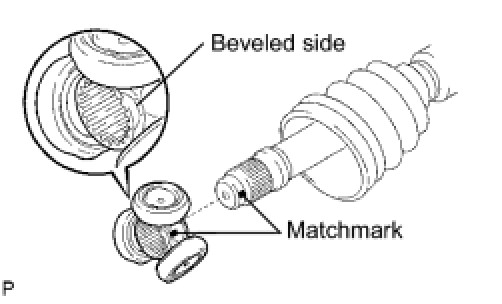

(b) Place the beveled side of the tripod joint axial spline toward the outboard joint shaft.
(c) Align the matchmarks.
(d) Using a brass bar and hammer, tap in the tripod joint to the outboard joint shaft.
NOTICE:
- Do not tap the roller.
- Be sure to install the tripod joint assembly in the correct direction.

(e) Using a snap ring expander, install a new shaft snap ring.
(f) Coat the outboard joint shaft and boot with grease.
Grease capacity:
175 to 185 g (6.2 to 6.5 oz.)

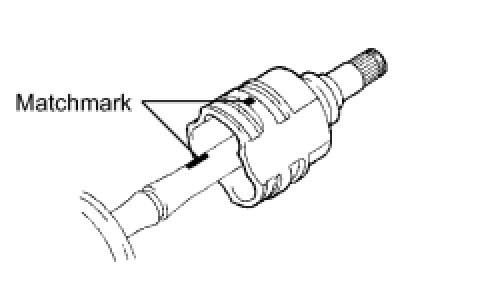

(g) Align the matchmarks and install the inboard joint assembly to the outboard joint shaft assembly.
10. INSTALL FRONT AXLE INBOARD JOINT BOOT
(a) Install the inboard joint boot to the inboard joint assembly.

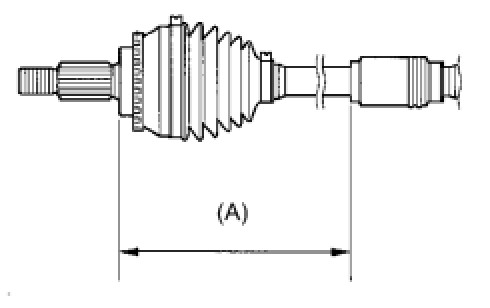

(b) Check whether the drive shaft dimensions are within the following specifications.

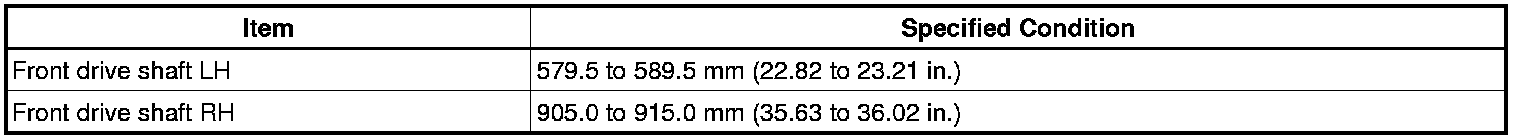

HINT: The following table shows distance (A) of the drive shaft.

Distance (A):

11. INSTALL FRONT AXLE INBOARD JOINT BOOT CLAMP

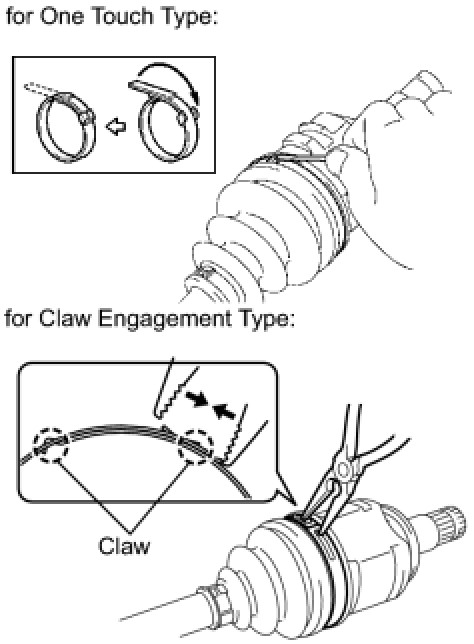

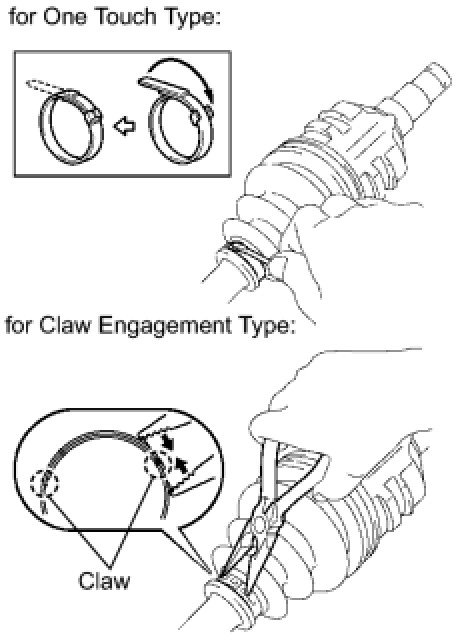

(a) for One touch type:
(1) Using a screwdriver, install the inboard joint boot clamp as shown in the illustration.
(b) for Claw engagement type:
(1) Using needle nose pliers, install the inboard joint boot clamp as shown in the illustration.
12. INSTALL NO. 2 FRONT AXLE INBOARD JOINT BOOT CLAMP

(a) for One touch type:
(1) Using a screwdriver, install the No. 2 front axle inboard joint boot clamp as shown in the illustration.
(b) for Claw engagement type:
(1) Using needle nose pliers, install the No. 2 front axle inboard joint boot clamp as shown in the illustration.
13. INSTALL FRONT DRIVE SHAFT LH HOLE SNAP RING
(a) Install a new hole snap ring.
