Axle System
Axle System

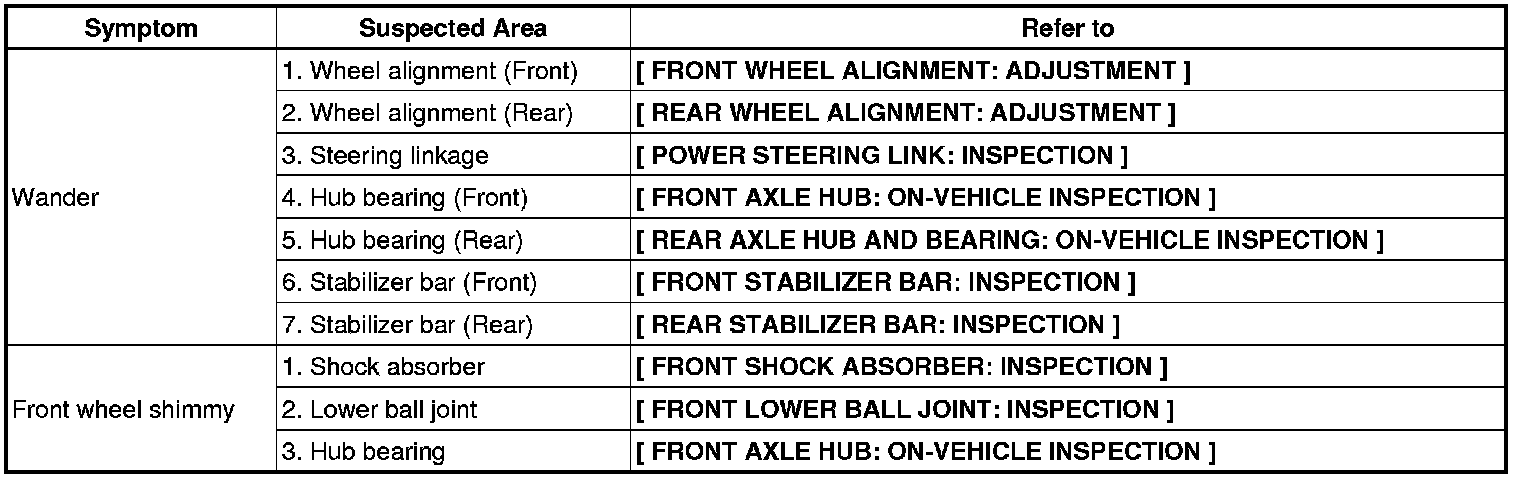

AXLE: AXLE SYSTEM: PROBLEM SYMPTOMS TABLE
PROBLEM SYMPTOMS TABLE
Use the table below to help find the cause of the problem. Check each part. If necessary, replace these parts.
