Operation Check

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: OPERATION CHECK

OPERATION CHECK





1. CHECK WINDOW LOCK SWITCH
(a) Check that the front passenger side power window and rear power windows operation are disabled when the window lock switch of the power window master switch is pressed.
Standard:
Front passenger side power window and rear power windows operation are disabled.
(b) Check that the front passenger side power window and rear power windows can be operated when the window lock switch is pressed again.
Standard:
Front passenger side power window and rear power windows can be operated.

2. CHECK MANUAL UP/DOWN FUNCTION

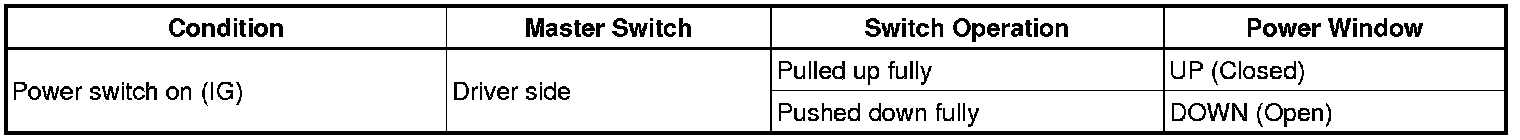

(a) Check that the driver side power window operates as follows:
Standard:

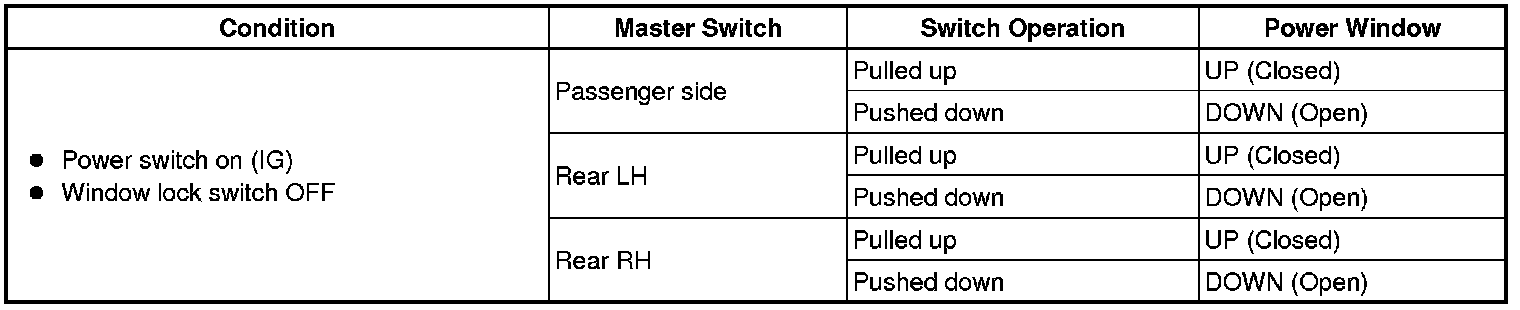

(b) Check that the power windows except the driver side power window operate as follows:
Standard:






3. CHECK AUTO DOWN FUNCTION
(a) Check that the driver side power window operates as follows:
Standard:






4. CHECK REMOTE MANUAL UP/DOWN FUNCTION

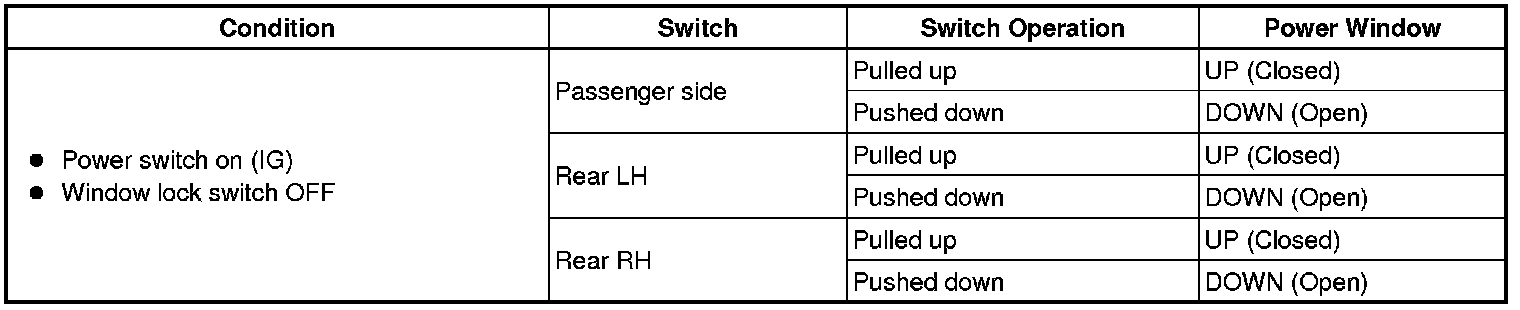

(a) Check that the power windows except the driver side power window operate as follows:
Standard:
