Window Regulator: Testing and Inspection

WINDSHIELD / WINDOWGLASS: POWER WINDOW REGULATOR MOTOR: INSPECTION

INSPECTION

1. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT PASSENGER)

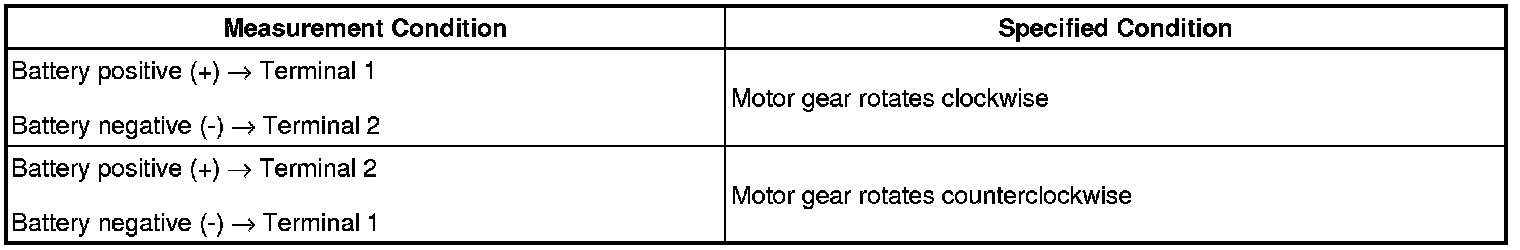

(a) Apply battery voltage to the motor connector according to the table below.
NOTICE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:






2. INSPECT POWER WINDOW REGULATOR MOTOR (DRIVER SIDE)





(a) Apply battery voltage to the motor connector according to the table below.
NOTICE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:






3. INSPECT POWER WINDOW REGULATOR MOTOR (REAR RH)





(a) Apply battery voltage to the motor connector according to the table below.
NOTICE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:






4. INSPECT POWER WINDOW REGULATOR MOTOR (REAR LH)





(a) Apply battery voltage to the motor connector according to the table below.
NOTICE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:
