C1288

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (for BOSCH Made): C1288/88: ECU Version Miss Match

DTC C1288/88 - ECU Version Miss Match

DESCRIPTION





INSPECTION PROCEDURE

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM

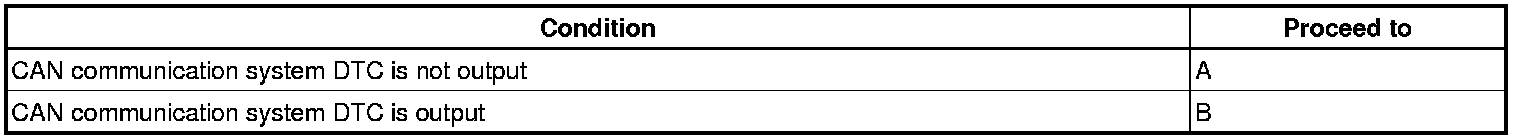

(a) Check if a CAN communication system DTC is output Vehicle Stability Control System (for BOSCH Made).
Result:






B -- INSPECT CAN COMMUNICATION SYSTEM
A -- Continue to next step.
2. PERFORM ENGINE VARIANT LEARNING
(a) Perform engine variant learning Test Mode Procedure.
NEXT -- Continue to next step.
3. CONFIRM RECONFIRM DTC
(a) Clear the DTC Vehicle Stability Control System (for BOSCH Made).
(b) Start the engine.

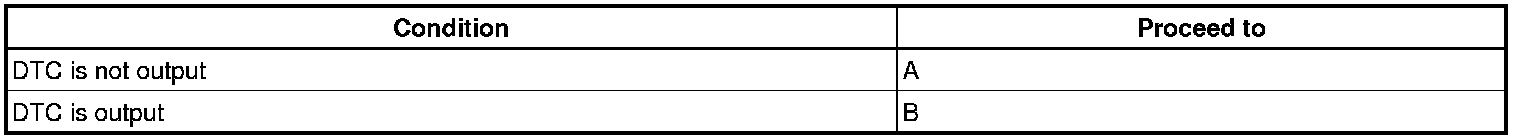

(c) Check if the same DTC is recorded Vehicle Stability Control System (for BOSCH Made).
Result:






B -- REPLACE ECM
A -- END
