Automatic Transaxle System - U660E
U660E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART

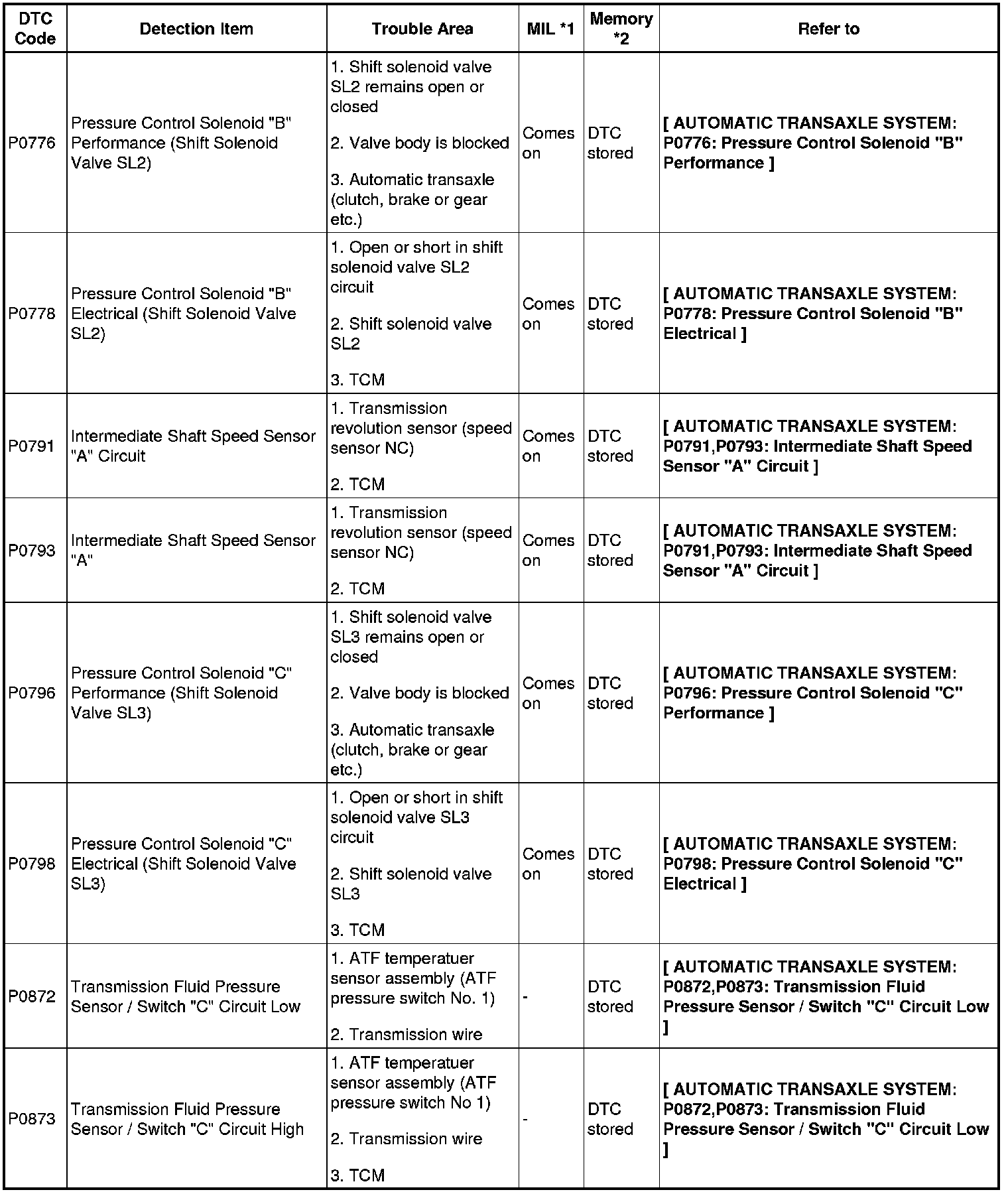

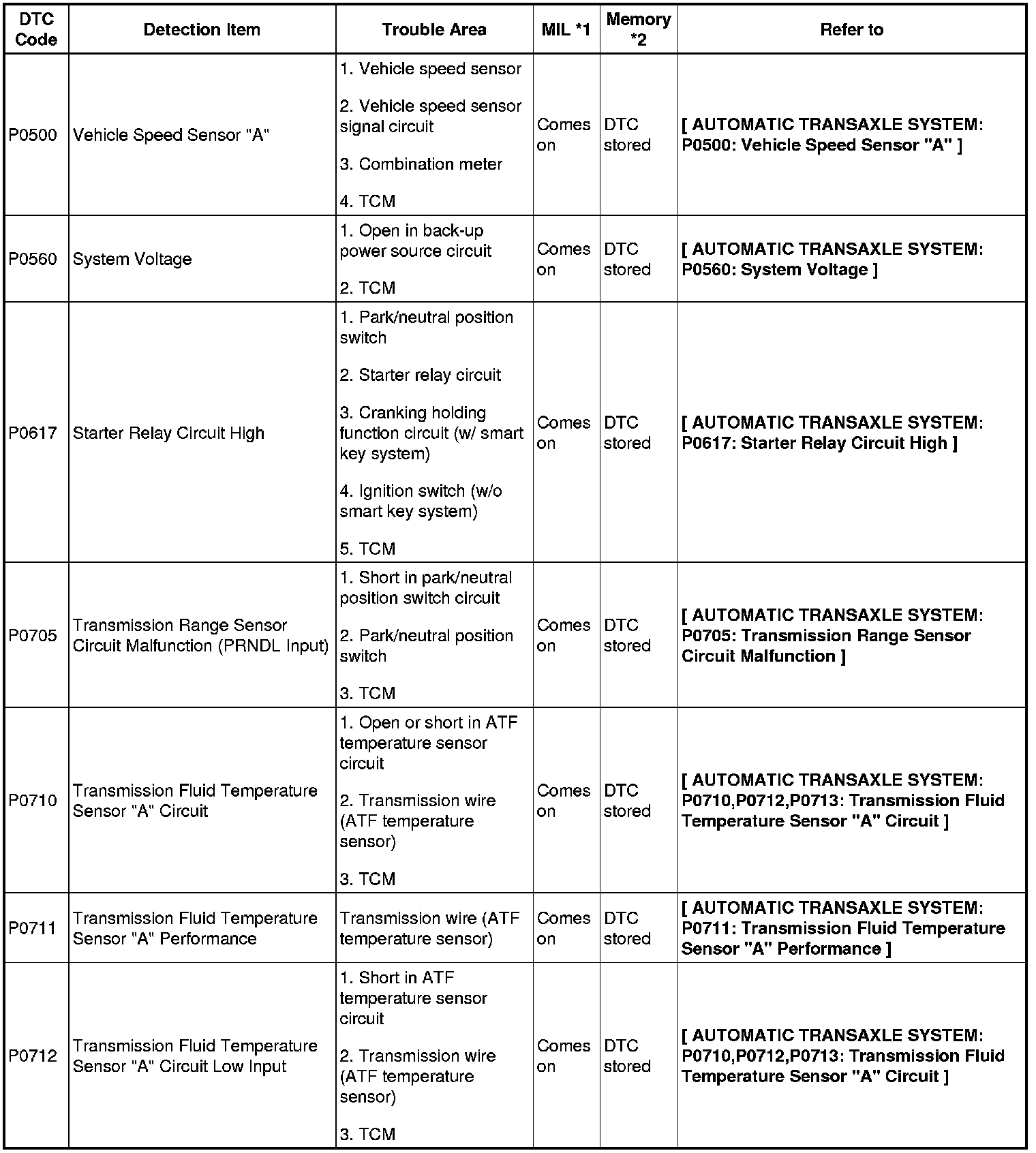

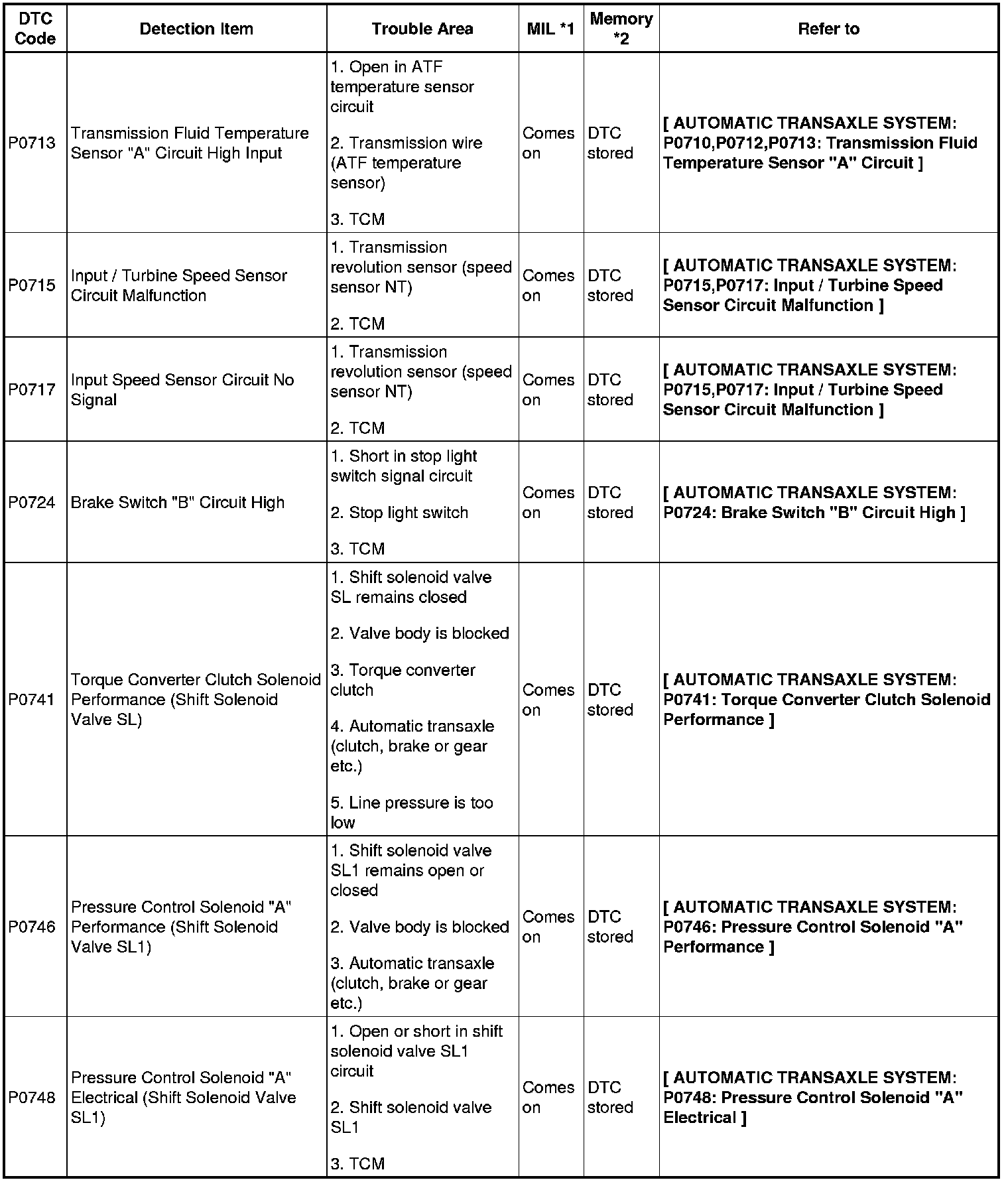

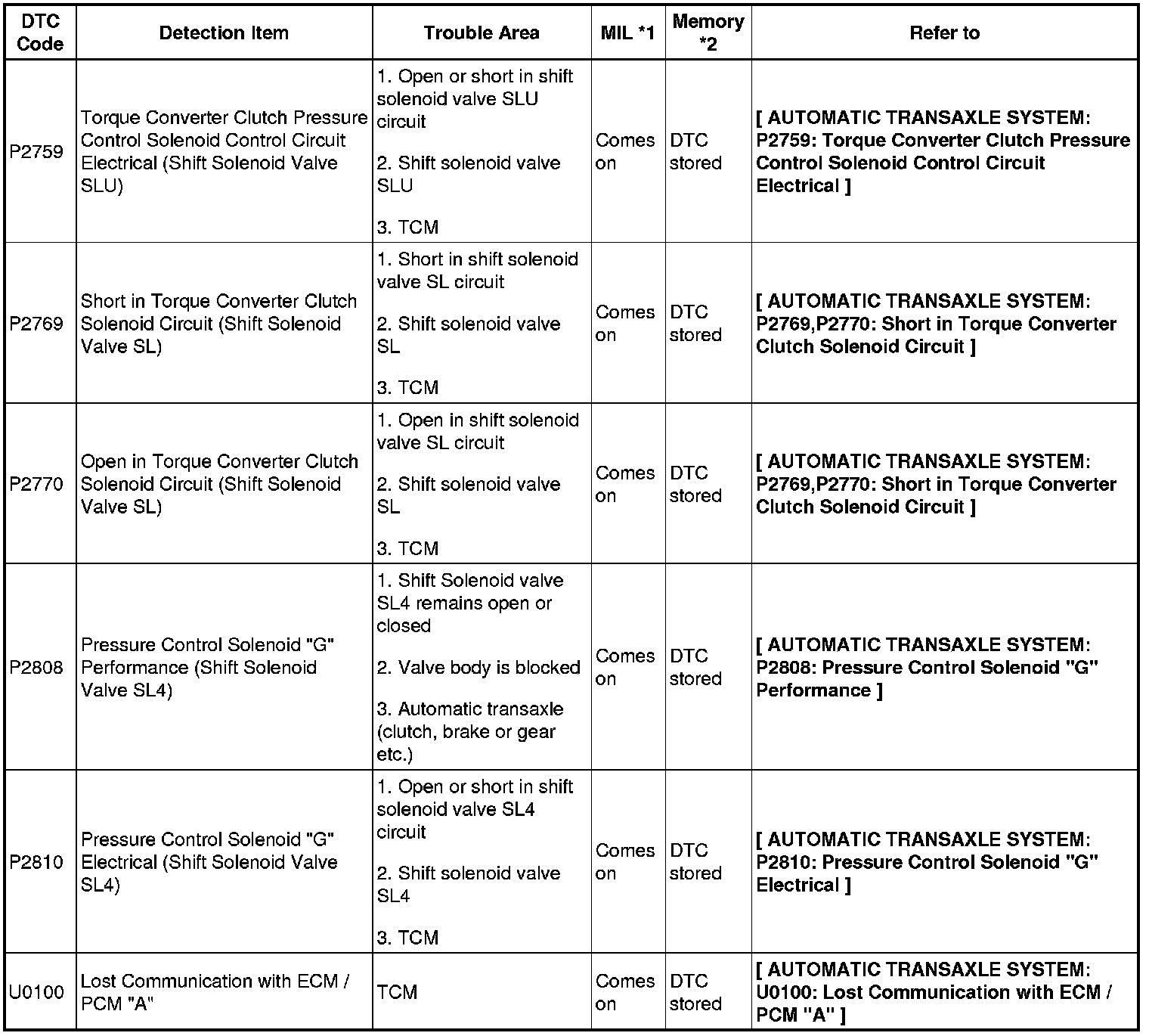

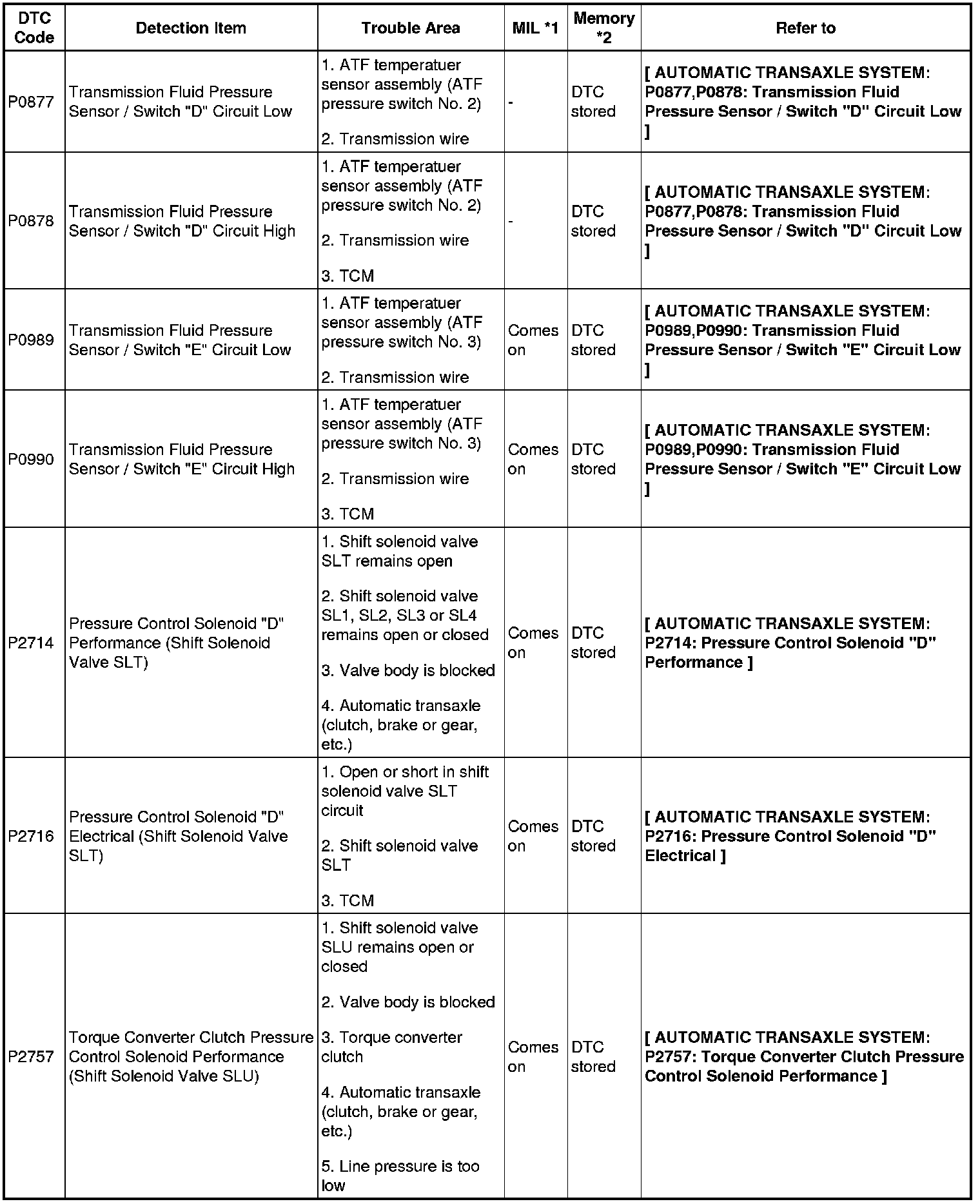

If a DTC is displayed during the DTC check, check the parts listed in the table below.
HINT:
- *1: MIL (Malfunction Indicator Lamp) comes on
- *2: "DTC stored" mark means TCM memorizes the trouble code if the TCM detects that the DTC detection condition is satisfied.
- A DTC may be output when the clutch, brake and gear components, etc. inside the automatic transaxle are damaged.
AUTOMATIC TRANSAXLE SYSTEM
