Navigation System
NAVIGATION: NAVIGATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART
COMMUNICATION DIAGNOSIS:

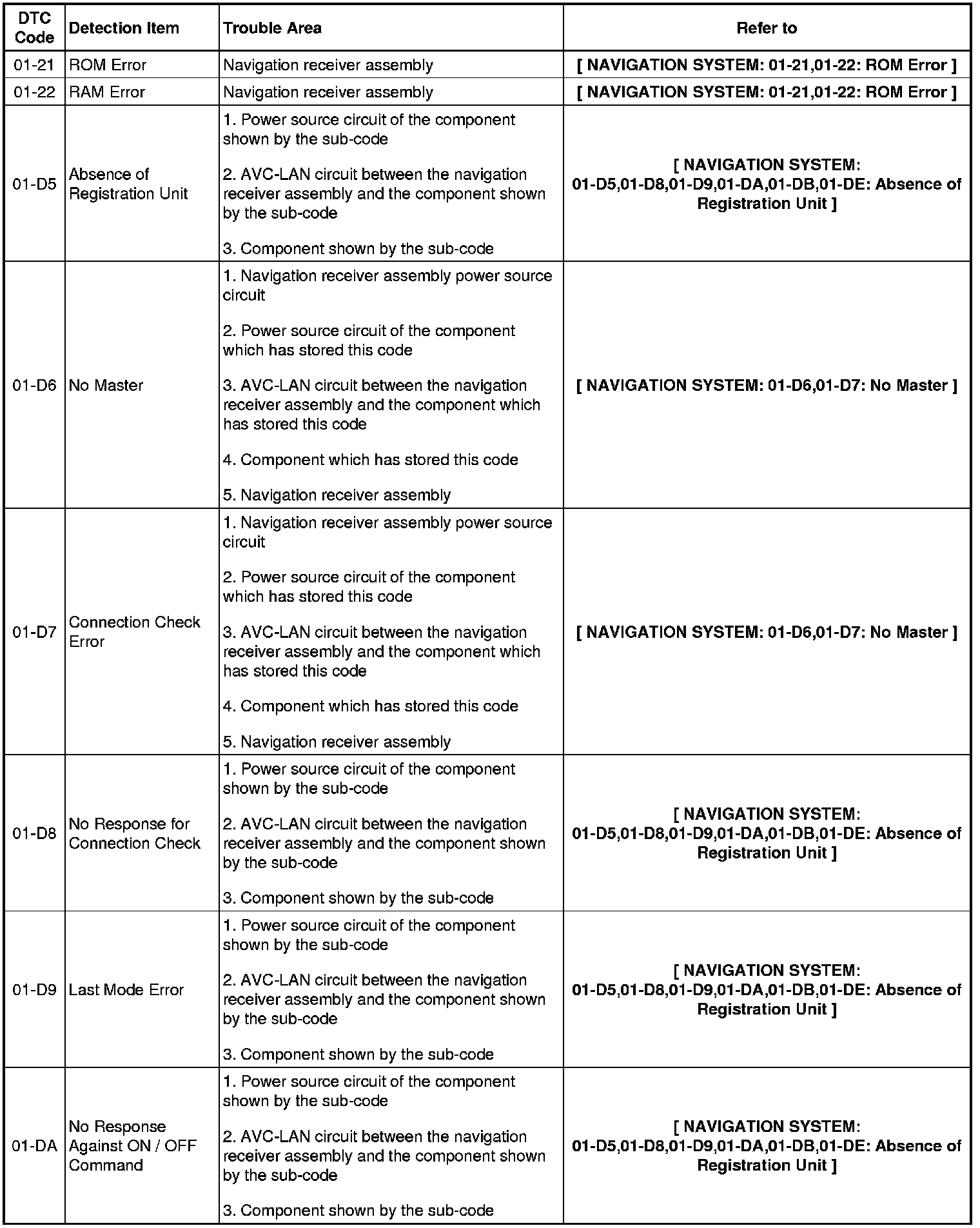

01-21 - 01-DA:

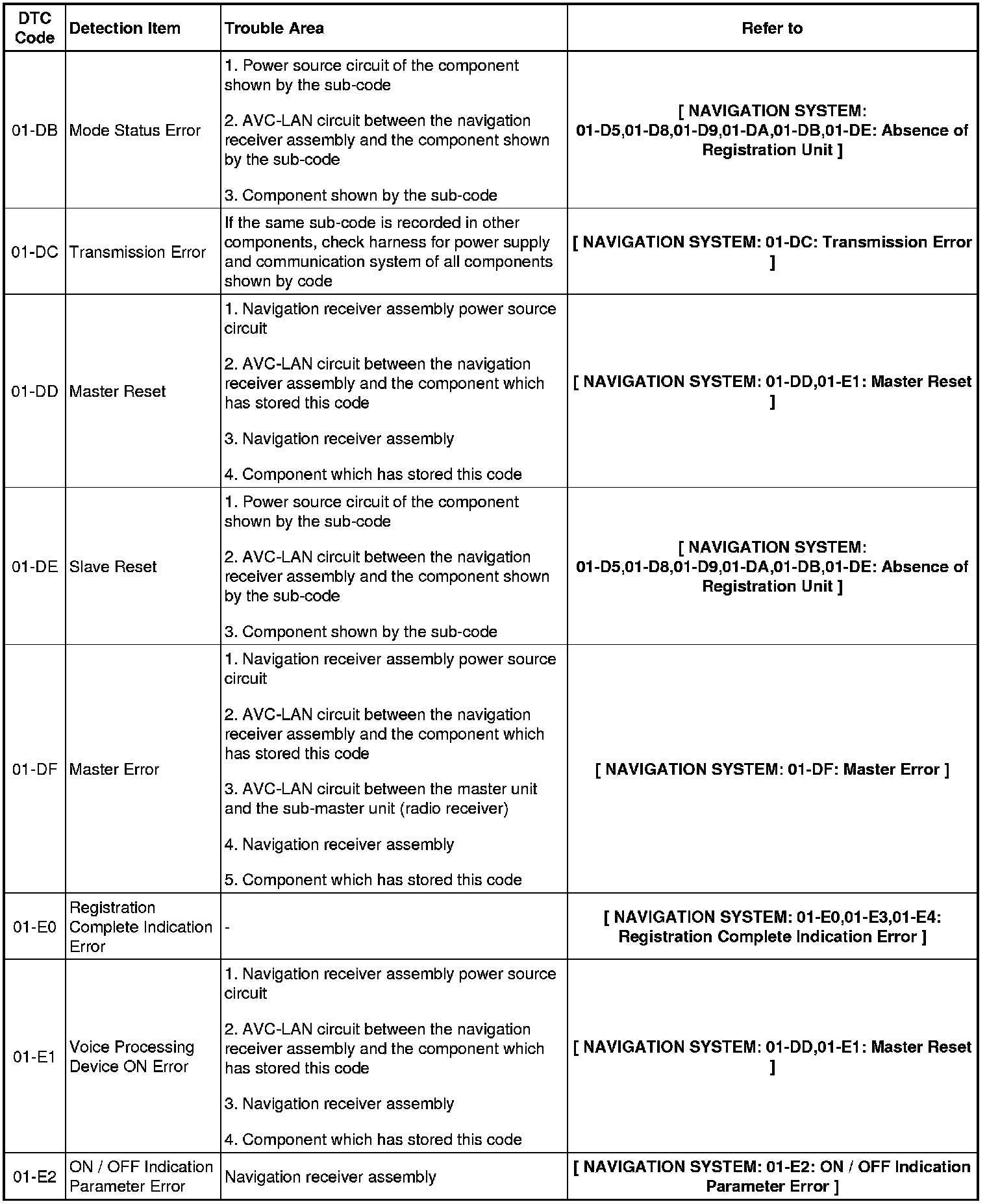

01-DB - 01-E2:

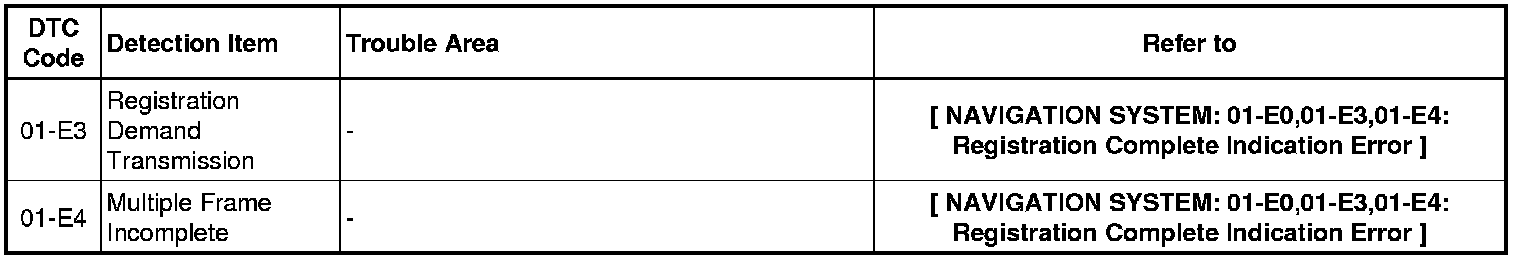

01-E3 - 01-E4:

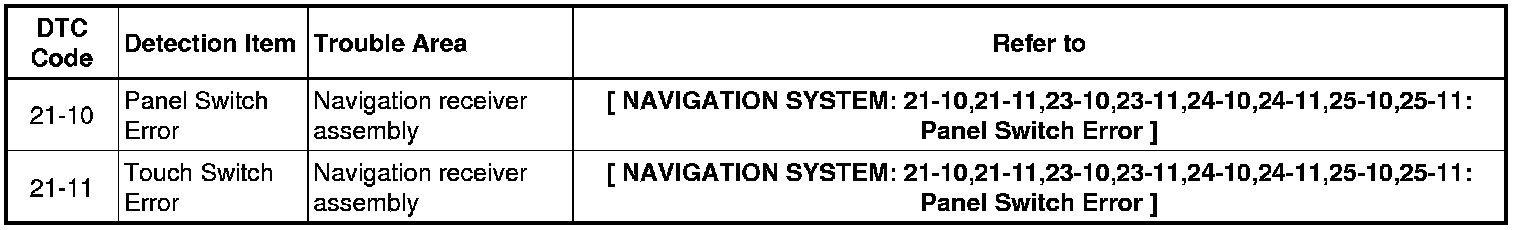

SW:
21-10 - 21-11:

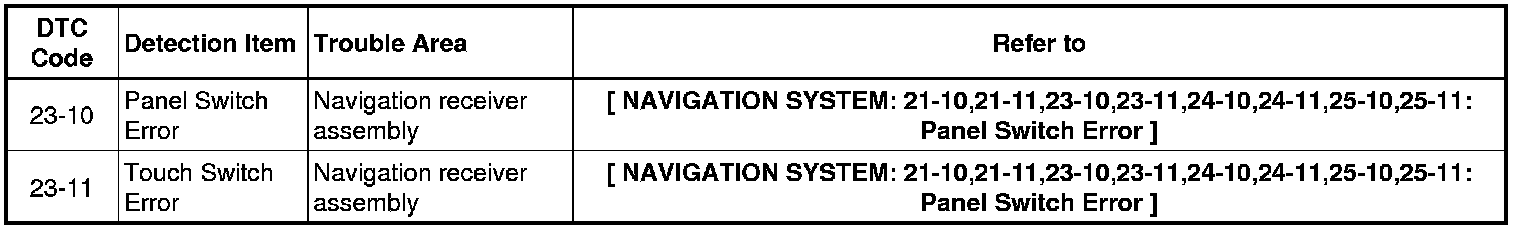

SW WITH NAME:
23-10 - 23-11:
SW CONVERTING:
24-10 - 24-11:
COMMAND SW:
25-10 - 25-11:

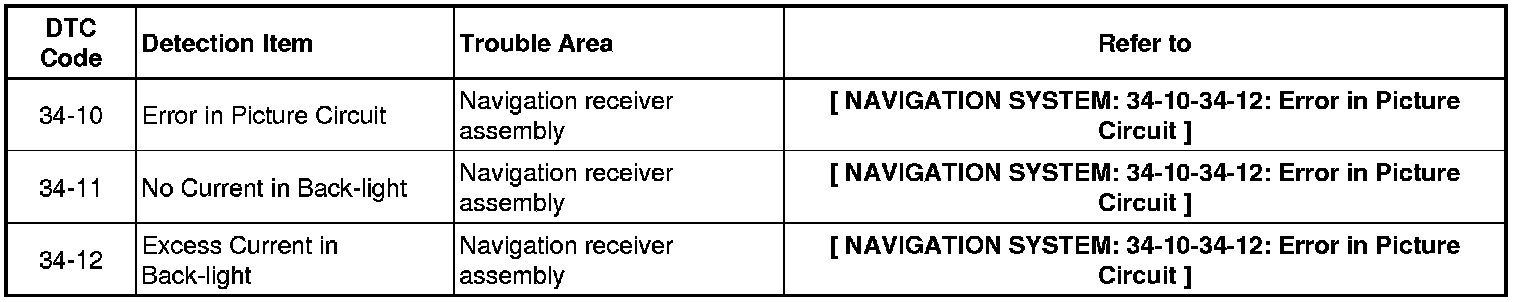

FRONT MONITOR:
34-10 - 34-12:
TELEPHONE:
57-47:

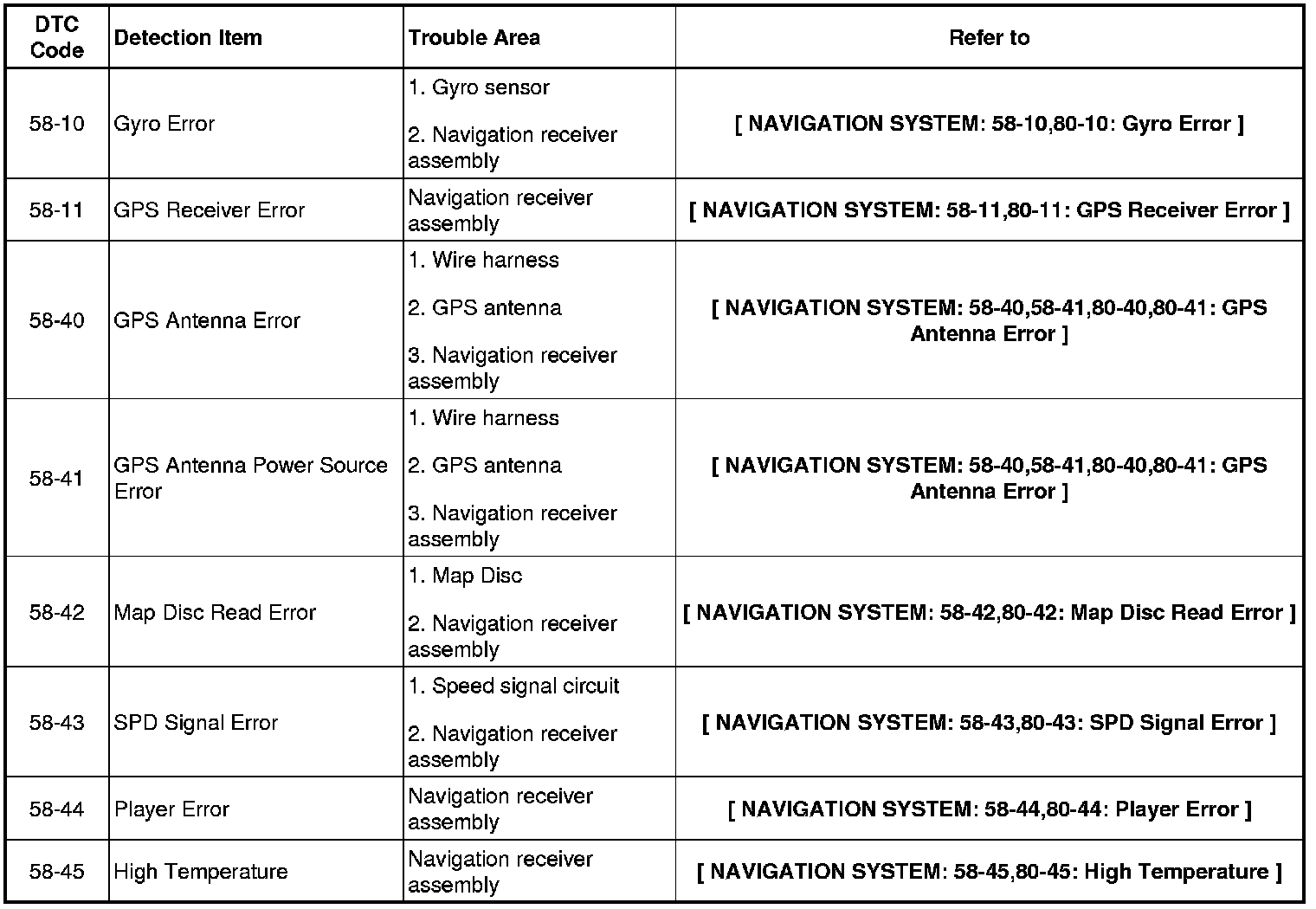

NAVI:
58-10 - 58-45:

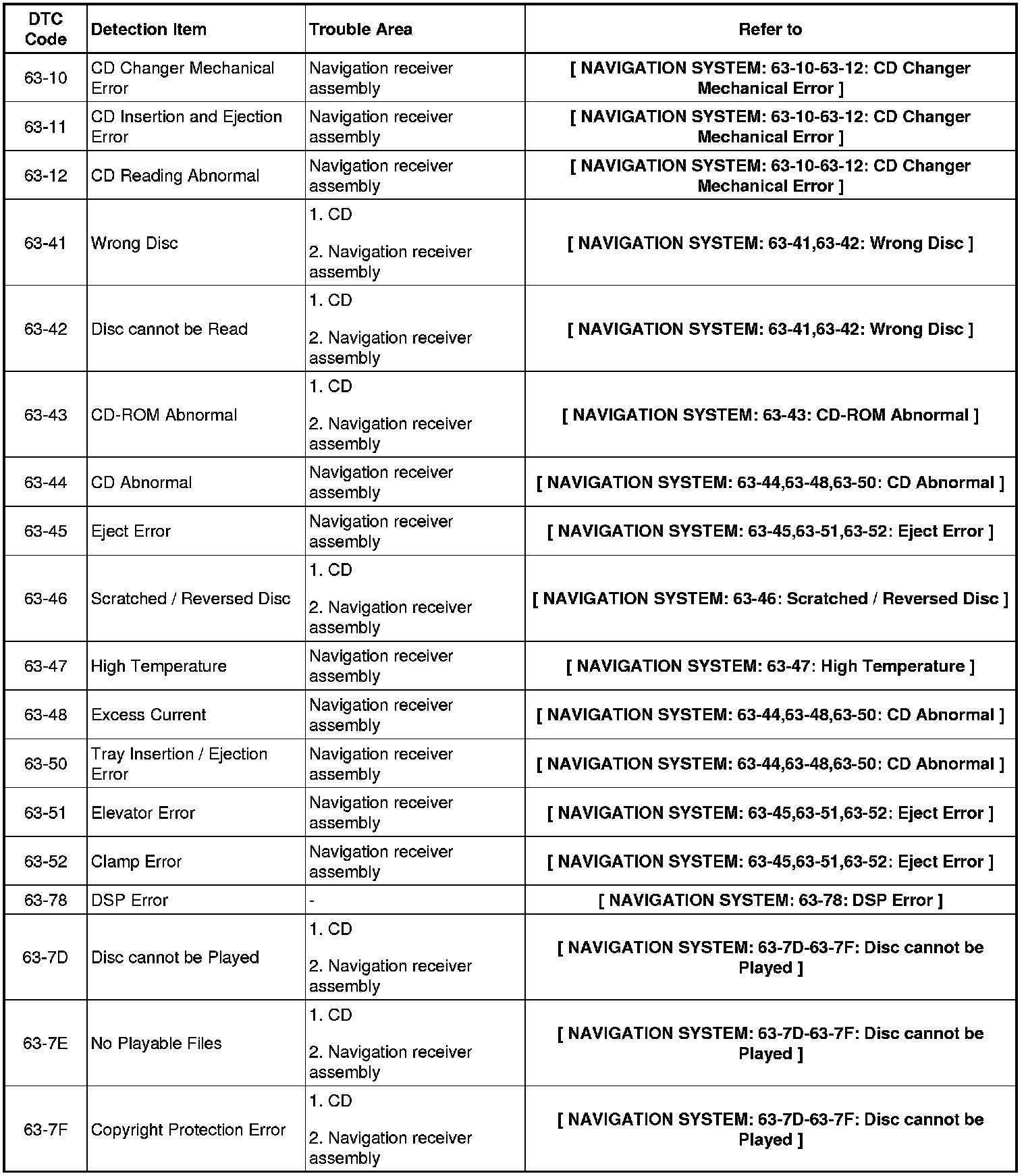

IN-DASH CD CHANGER:
63-10 - 63-7F:
GPS:
