ABS Control System Malfunction - Vehicle Stability Control System (for BOSCH Made)

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (for BOSCH Made): 43: ABS Control System Malfunction

DTC 43 - ABS Control System Malfunction

DESCRIPTION

This DTC is output when the VSC system detects a malfunction in the ABS control system.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK ABS CONTROL SYSTEM
(a) Clear the DTC Vehicle Stability Control System (for BOSCH Made).
(b) Turn the ignition switch on (IG).
(c) Check if the same DTC is recorded Vehicle Stability Control System (for BOSCH Made).

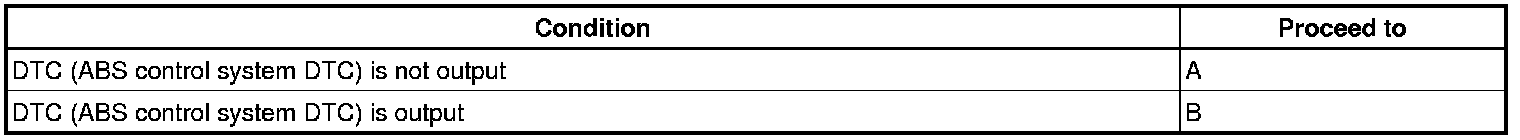

Result:






B -- REPAIR CIRCUITS INDICATED BY OUTPUT DTCS (BRAKE CONTROL SYSTEM)
A -- Continue to next step.
2. CONFIRM DTC
(a) Clear the DTC Vehicle Stability Control System (for BOSCH Made).
(b) Turn the ignition switch on (IG).
(c) Check if the same DTC is recorded Vehicle Stability Control System (for BOSCH Made).
Result:






B -- REPLACE BRAKE ACTUATOR ASSEMBLY
A -- END
