Anti-Lock Brake System

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM: U0073/94: Control Module Communication Bus OFF

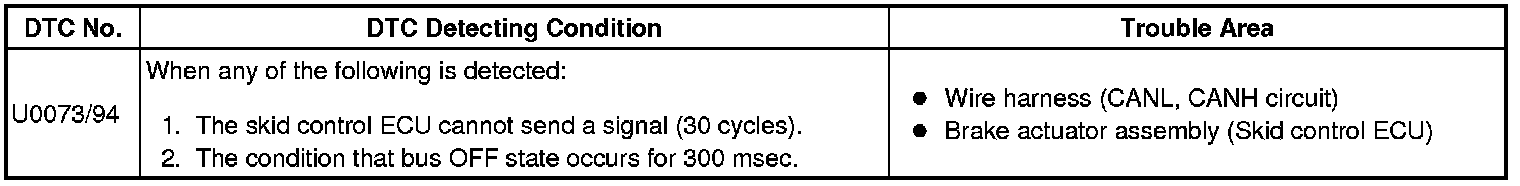

DTC U0073/94 - Control Module Communication Bus OFF

DESCRIPTION

- The skid control ECU receives the signal sent from the ECM via the CAN communication system.
- When DTCs indicating a CAN communication system malfunction are output, repair the CAN communication system before repairing each corresponding sensor.





INSPECTION PROCEDURE

Proceed to CAN communication system troubleshooting How to Proceed With Troubleshooting.
HINT: When DTCs indicating a CAN communication system malfunction are output, repair the CAN communication system before repairing each corresponding sensor.
